Customized Diamond Segment for Saw Blade Welding Machine Linsing Wet Cutting Tip Tool

Large Image : Customized Diamond Segment for Saw Blade Welding Machine Linsing Wet Cutting Tip Tool

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Block cutting segment

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.65/pieces 1000-9999 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	5000 Piece/Pieces per Day

Contact Now

Customized Diamond Segment for Saw Blade Welding Machine Linsing Wet Cutting Tip Tool

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment	Application:	Granite Marble
Material:	Diamond + Metal Powder	Usage:	Wet Cutting
Type:	Hot Press	Feature:	High Performance Cutting
Advantage:	Wear ResistantSuperior	Grade:	A-Grade
Shape:	Accept Customized	Length:	24/40mm

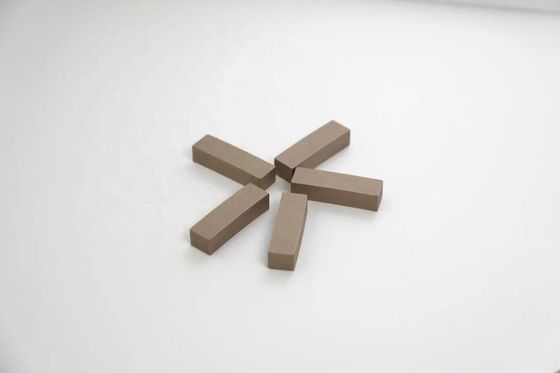

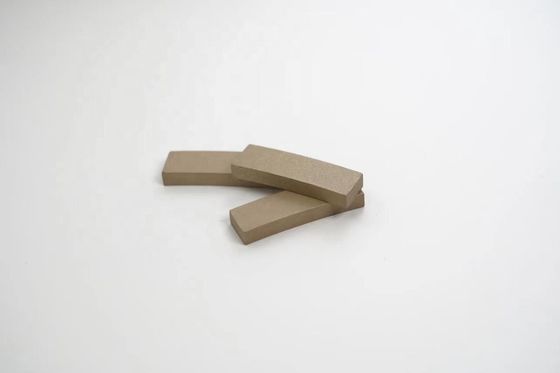

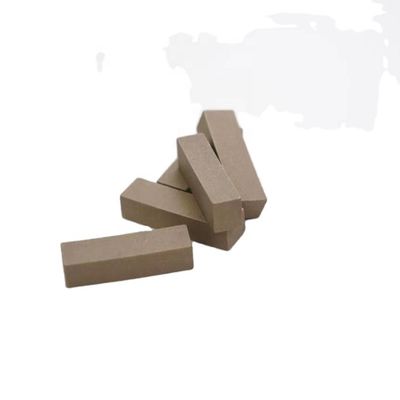

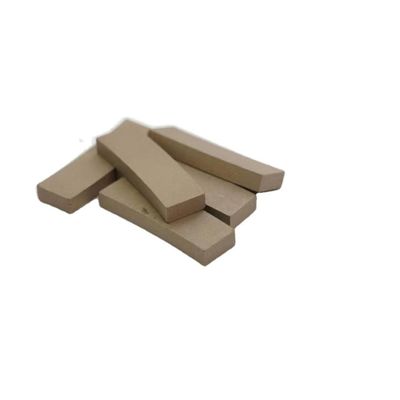

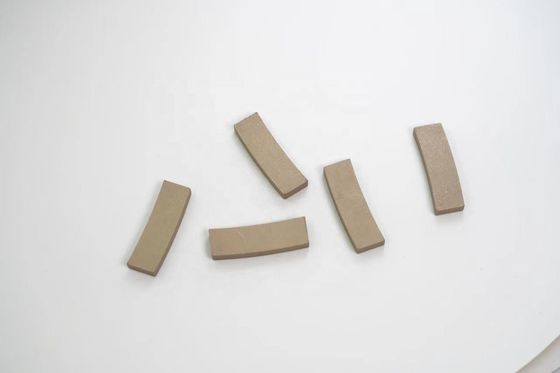

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request. Customized Diamond Segment for Saw Blade Welding Machine Linsing Wet Cutting Tip Tool 0
