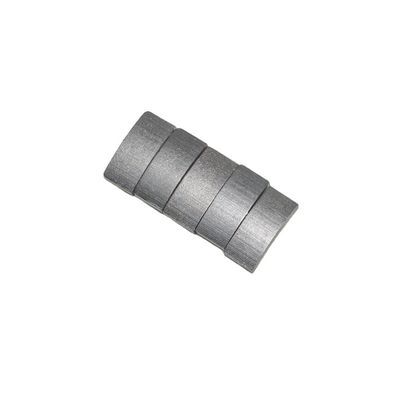

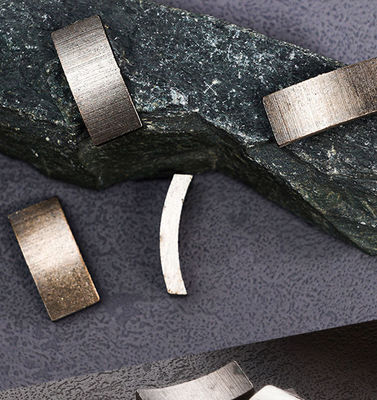

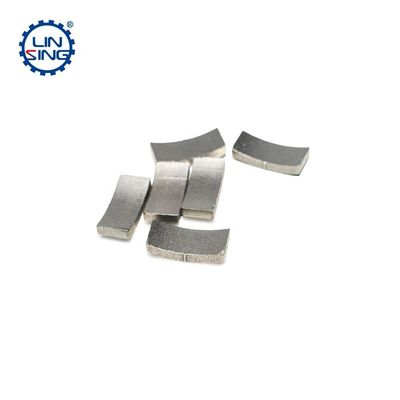

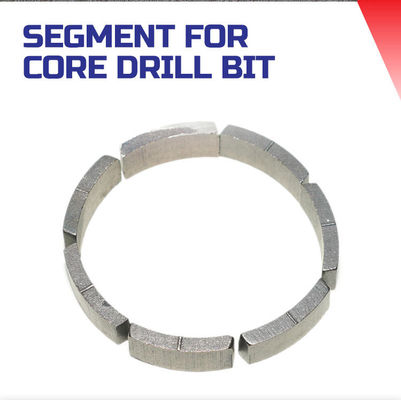

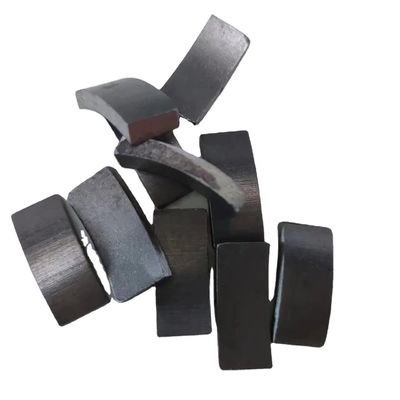

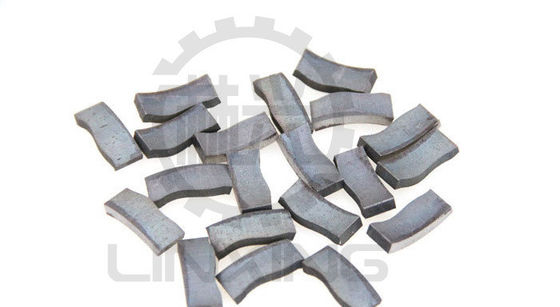

The segment is a cutting tool used for core drilling applications. It is designed with industrial-grade diamond particles embedded in a metal matrix, typically consisting of a mixture of metal powders and a bonding agent. The diamond segments are strategically arranged along the circumference of the core drill bit to facilitate efficient and precise cutting of hard materials such as concrete, stone, granite, and other construction materials.

Product Features:

1: Superior Cutting Performance: Diamond segments offer excellent cutting efficiency and precision, allowing for smooth and fast drilling through hard materials.

2: Long Service Life: Due to their exceptional hardness and wear resistance, diamond segments have a longer lifespan compared to traditional cutting tools.

3: Versatility: They can be used to drill various materials, including concrete, stone, granite, asphalt, and other construction materials.

4: Reduced Heat Generation: Diamond segments generate less heat during drilling, minimizing the risk of damage to the drilling surface and increasing the overall efficiency.

5: Minimal Chipping and Breakage: The precise and controlled cutting action of diamond segments helps to reduce chipping and breakage of the material being drilled.

6: Cost-Effectiveness: Although initially more expensive, the longer lifespan and higher performance of diamond 7:segments result in cost savings over time.

8: Environmentally Friendly: Diamond segments create less dust and debris during drilling, making them environmentally friendly compared to other cutting methods.

9: Ease of Use: Core drill bits with diamond segments are easy to use, providing a stable and reliable drilling experience for operators.

Product Specification:

Diameter(mm/inch)	Segment Specification(mm)	Adaptor
28mm (1-1/8")	16x2.5x10	M10, M12, M14, 5/8"-11, 1/2-G
32mm (1-1/4”)	16x3.0x10	M10, M12, M14, 5/8"-11, 1/3-G
35mm (1-3/8”)	16x3.0x10	M10, M12, M14, 5/8"-11, 1/4-G
38mm (1-1/2”)	16x3.0x10	M10, M12, M14, 5/8"-11, 1/5-G
42mm (1-5/8")	16x3.0x10	M10, M12, M14, 5/8"-11, 1/6-G
45mm (1-3/4”)	16x3.0x10	M10, M12, M14, 5/8"-11, 1/7-G
50/51mm (2”)	16x3.0x10	M10, M12, M14, 5/8"-11, 1/8-G
57mm (2-1/4”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/9-G
60mm (2-3/8”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/10-G
63mm (2-1/2”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/11-G
70mm (2-3/4”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/12-G
76mm (3”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/13-G
80mm (3-1/8”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/14-G
89mm (3-1/2”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/15-G
102mm (4”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/16-G
110mm (4-3/8”)	22x3.5x10	M10, M12, M14, 5/8"-11, 1/17-G
127mm (5”)	24x4.0x10	M10, M12, M14, 5/8"-11, 1/18-G

Use for Diameter(mm)	Long(mm)	Height(mm)	Thickness(mm)	Tooth number
Short teeth
350	40	12.5/15	3.4	24
400	40	15	3.8	28
500	40	12	4.2	36
525	40	12	4.2	36
600	40	12	4.8	42
700	50	12/15	4.8	46
800	50	12/15	5.2	50
900	50	12/15	6.0	50
Long teeth
1000	24	12.5/13.5	7.4/8	72
1200	28/24	12.5/13.5	7.4/8	80
1400	28/24	12.5/13.5	8.2/8.8	92
1600	28/24	13/15	8.6/9	108
1800	28/24	13/15	9.8/10.2	120
2000	28/24	13/15	10.8/11.2	132
2200	28/24	13/15	10.8/11.2	136
2500	28/24	13/15	10.8/11.2	136

Special requirements of various models can be customized.
