Global Market Diamond Segments for Marble Granite Cutting Hot Press Sintering Tools

Large Image : Global Market Diamond Segments for Marble Granite Cutting Hot Press Sintering Tools

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	Diamond Segments For Andesite

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.01/pieces 100-999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Teeth For Diamond Cutting Wheel

Contact Now

Global Market Diamond Segments for Marble Granite Cutting Hot Press Sintering Tools

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product:	Diamond Segments	Raw Material:	Diamond. Metal Powder, Etc
Segment Shape:	M, K, Taper, Sandwich...	Manutacturing Arts:	Sinter
Welding Method:	High Frequency Brazed (Suggest)	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Teeth For Diamond Cutting Wheel	Certificate:	TUV

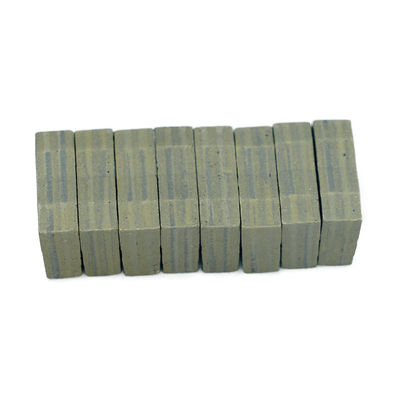

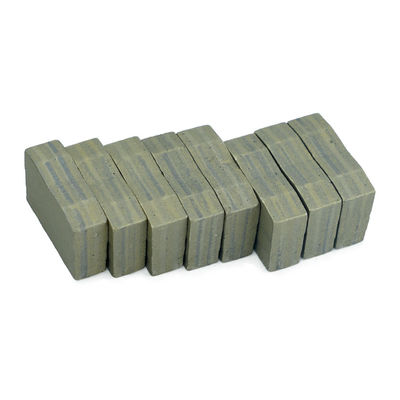

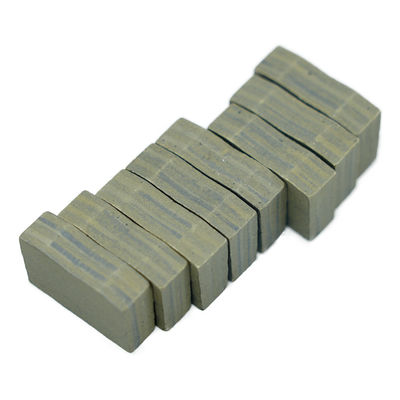

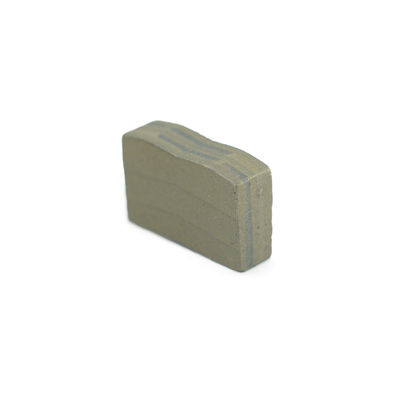

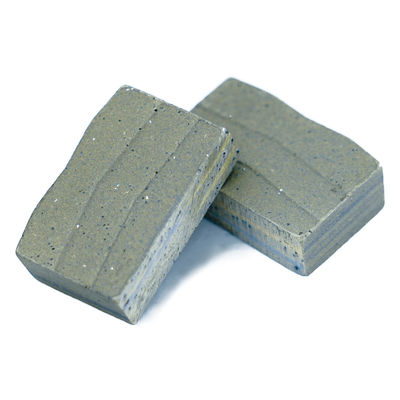

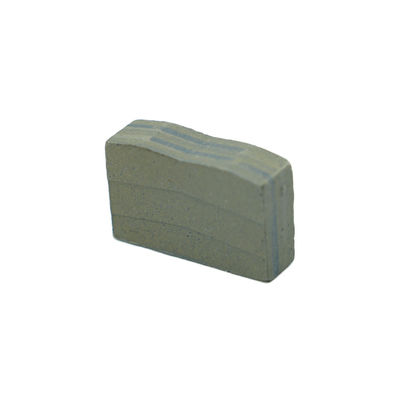

Andesite Cutting Segment

Through continuous debugging, the andesite cutting segment achieve high speed and long life cutting effect to meet the needs of the market.

Product Features:

1. Cutting in high speed without chipping;
2. Long life span and stable cutting performance;
3. Smooth cutting, flat surface and even size cutting result;
4. Good segment shape easy for diamond opening;
5. Strict product quality inspection processes;
6. High cost-effective.

Product Specification:

Diameter (mm)	Steel Core (mm)	Segment Size	Segment Number
Φ300	2.2	40×3.2×8(10)	22
Φ350	2.4	40×3.4×8(10)	25
Φ400	2.6	40×3.6×8(10)	29
Φ450	2.8/3.0	40×4.0×8(10)	32
Φ500	3.0/3.2	40×4.2×8(10)	36
Φ600	3.6/3.8	40×4.8×8(10)	42
Φ700	4	40×5.2×8(10)	42
Φ800	4.5	40×6.0×8(10)	46/57
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Other specifications are available upon request. Global Market Diamond Segments for Marble Granite Cutting Hot Press Sintering Tools 0
