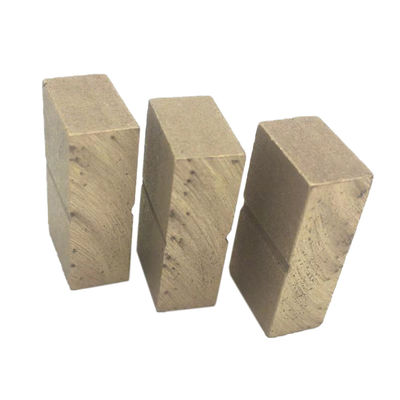

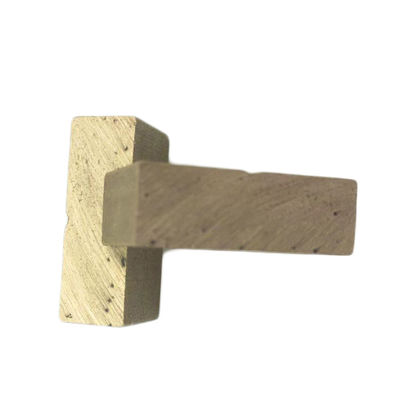

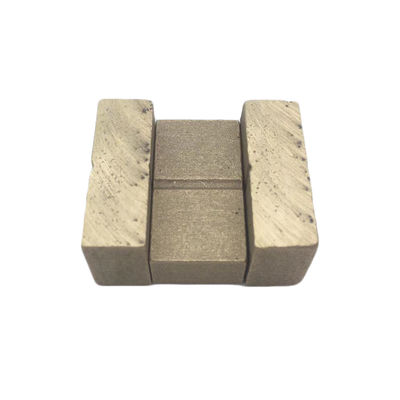

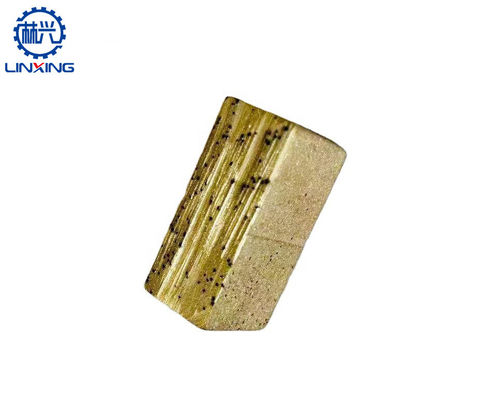

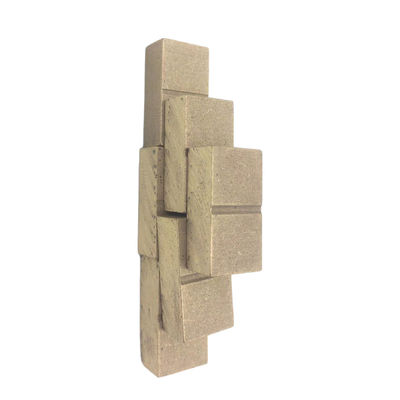

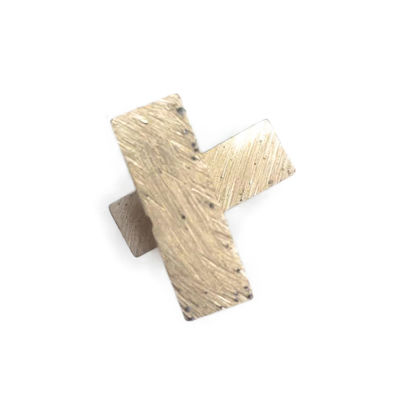

Marble Cutting Diamond Segments Flat Type with Fast Diamond Exposed Long Life Span

Large Image : Marble Cutting Diamond Segments Flat Type with Fast Diamond Exposed Long Life Span

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linxing
Certification:	TUV,CE,ISO9001
Model Number:	247.510mm

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.98/pieces 200-999 pieces

Contact Now

Marble Cutting Diamond Segments Flat Type with Fast Diamond Exposed Long Life Span

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segments For Cutting Marble	Brand:	Linsing
Advantage:	Fast Diamond Exposed &long Life Span	Packing:	Inner Box&outside Carton
Application:	For Cutting Marble Blocks&Slabs	Type:	Flat Type
Size:	Custimized Acceptable	Keywords:	Marble&blocks&slabs
MOQ:	50pcs

Jiangxi Linxing Diamond Tools Co.,Ltd.

Add: Pharmaceutical and Chemical Industry Zone, Tianfanjie, Poyang, Shangrao, Jiangxi Province, China 333105

Contact:Martha sheng

whatsApp: (0086)18907092847

wechat:(0086)13870373717

If you are interested in our diamond tools, pls be free to contact us.

we will reply to you within 24 hours, sincerely hope to be your long-term partner in stone industry.

Company Information

LINXING factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D, the experienced engineers have worked out unique formula for Granite and marble cutting conditions.

Marble Cutting Diamond Segments Flat Type with Fast Diamond Exposed Long Life Span 0

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long lifespan with high cost-effective.
4. Segment is easy for opening.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.
