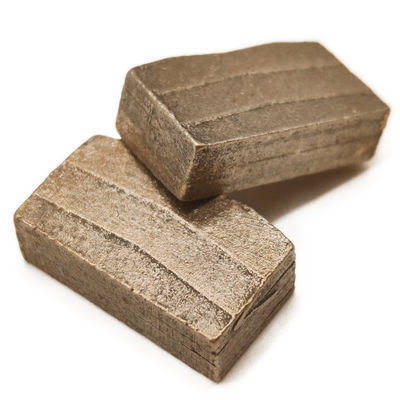

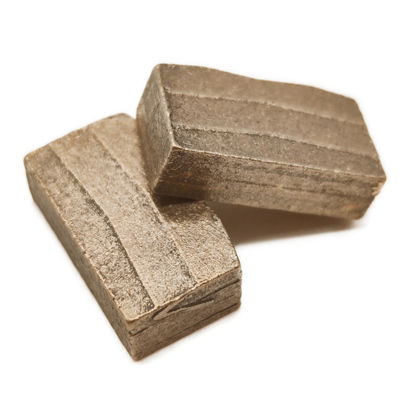

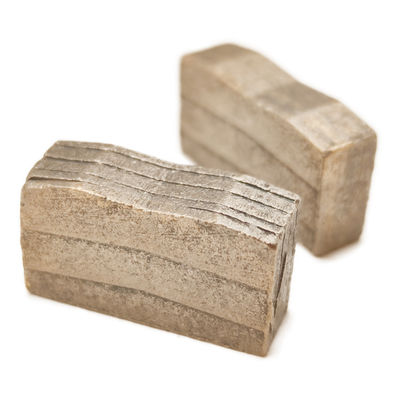

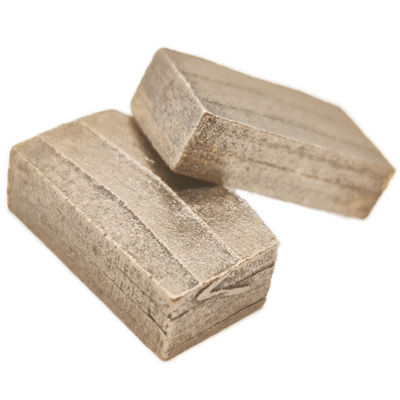

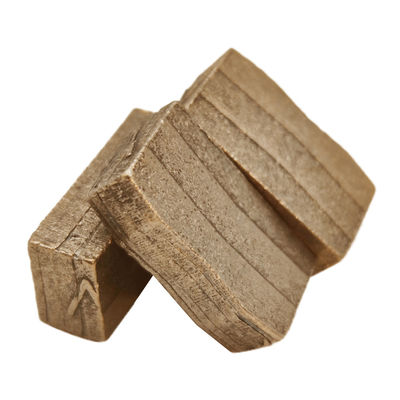

Customized OBM Support Multi Blade Saw 1200MM Diamond Segments for Cutting Marble Granite

Large Image : Customized OBM Support Multi Blade Saw 1200MM Diamond Segments for Cutting Marble Granite

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	Diamond Segments For Andesite

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.01/pieces 100-999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Teeth For Diamond Cutting Wheel

Contact Now

Customized OBM Support Multi Blade Saw 1200MM Diamond Segments for Cutting Marble Granite

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product:	Diamond Segments	Raw Material:	Diamond. Metal Powder, Etc
Segment Shape:	M, K, Taper, Sandwich...	Manutacturing Arts:	Sinter
Welding Method:	High Frequency Brazed (Suggest)	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Teeth For Diamond Cutting Wheel	Certificate:	TUV

Diamond Segment For Multi-Saw Blade

Multi segment is a kind of diamond tool used in Italian multiblade cutting machine, Chinese multiblade bridge saw machine, or chinese single column multiblade cutting machine. It is usually used to cut stone blocks, and it has the characteristics of high cutting efficiency and stable cutting.

Product Features:
1. The segment has good sharpness against different stone cutting;
2. Long lifespan with high cost-effective;
3. Strict QC for stable cutting performance;
4. Segment shape is easy for opening.

Product Specification:

Multiblade segment for granite cutting

Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)
Φ1000 (600-2000)	5.0	24x7.0/6.2x15 (13,20)
Φ1200 (530-2800)	5.5	24x7.4/6.6x15 (13,20)
Φ1400 (460-2800)	6.5	24x8.4/7.6x15 (13,20)
Φ1600 (460-3000)	7.2	24x9.2/8.4x15 (13,20)

Other specifications are available upon request.

Multiblade segment for marble cutting

Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)
Φ1200	4.5	24x5.5x8 (10)
Φ1200	5.0	24x6.0x8 (10)
Φ1200	6.5	24x7.5x8 (10)
Φ1200	7.0	24x8.0x8 (10)

Other specifications are available upon request. Customized OBM Support Multi Blade Saw 1200MM Diamond Segments for Cutting Marble Granite 0
