Saw Blade Sharpener Diamond Grinding Wheel Discs for Wet Cutting CNC Machinery Marble

Large Image : Saw Blade Sharpener Diamond Grinding Wheel Discs for Wet Cutting CNC Machinery Marble

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Segmented saw blade

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$27.00/pieces 50-199 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	1000 Piece/Pieces per Day Segmented saw blade

Contact Now

Saw Blade Sharpener Diamond Grinding Wheel Discs for Wet Cutting CNC Machinery Marble

Description

Warranty:	None	Blade Thickness:	0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width:	1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other, 14inch	Arbor Size:	7/8IN, 10mm, 5/8in, 50/60mm
Teeth Per Inch:	10, 24, Other	Teeths:	140, 144, Other
Blade Length:	6in, 6 1/2in, 10in, 12in	Blade Diameter:	18in, 12in, 14in, 350/400/450/500mm
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	HOT PRESS, High Frequency Welded, Laser Welded, HOT PRESS
Customized Support:	OEM, ODM, OBM	Finishing:	Ti-coated
Size:	Dia.:105-3500mm	Grade:	Industrial
Product Name:	Diamond Saw Blade	Application:	Granite, Marble, Limestone, Glass, Concrete Etc.
Material:	65Mn+Diamond	Advantage:	High Efficiency
Feature:	High Grade Diamond Power	Usage:	Wet
Inner Hole:	50/60mm	Machine:	Bridge Saw Machine
Port:	Xiamen, Ningbo, Shanghai, Shenzhen, Guangzhou Etc. Port

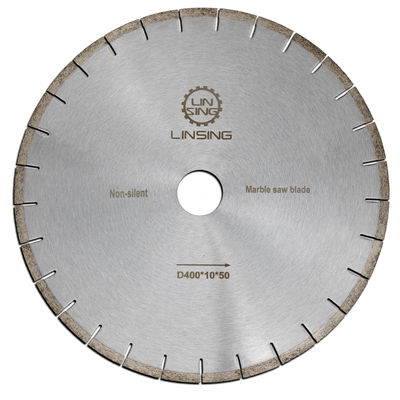

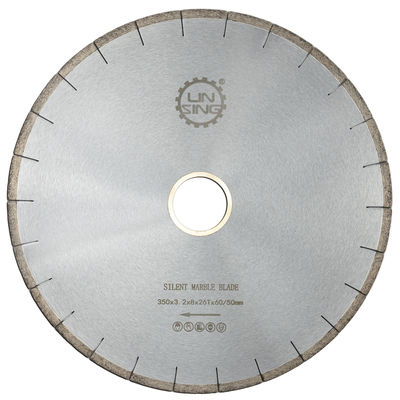

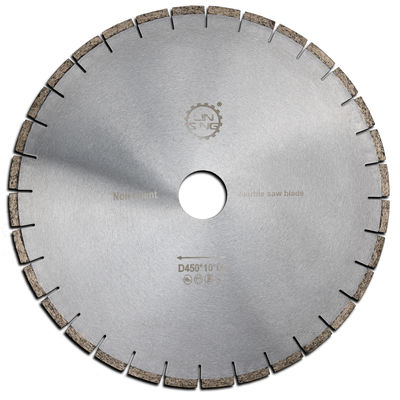

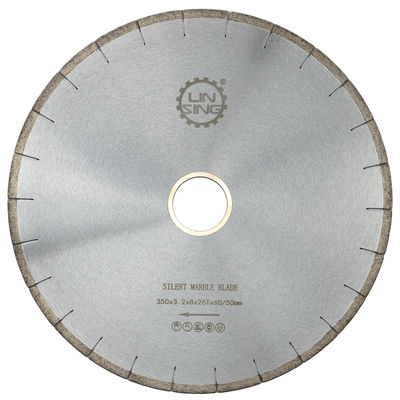

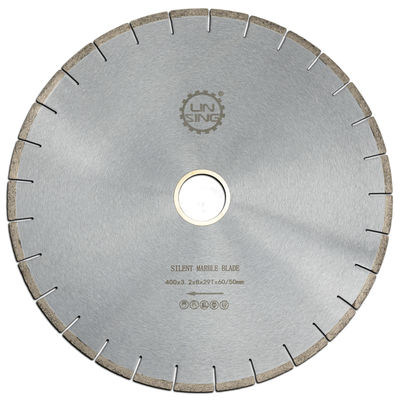

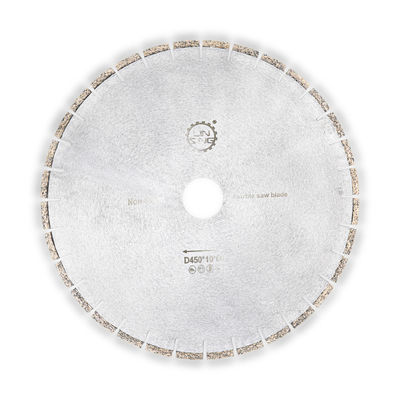

Diamond Saw Blade For Marble

The saw blade is a kind of diamond tool used for marble cutting. It has the characteristics of long life and good continuity, used on saw blade for cutting block and slab.

Product Features:
1. Cutting in high speed without chipping;
2. Strict quality inspection, long lifespan;
3. Stable cutting performance, high cost-effective;
4. Silent and non-silent blade are available.
Production Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10)	25
Φ16”/400	2.6	42/40x3.6x8(10)	29
Φ18”/450	2.8/3.0	40x4x8(10)	32
Φ20”/500	3.0/3.2	40x4.2x8(10)	36
Φ24”/600	3.6/3.8	40x5x8(10)	42
Φ28”/700	4	40x5.2x8(10)	50
Φ32”/800	4.5	40x6x8(10)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.
