Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools

Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools
Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools

Large Image :  Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: TUV
Model Number: Multiblade segment
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.68/pieces 100-999 pieces
Packaging Details: Diamond Cutting Segment Packed by Carton, LINXING LOGO Carton, etc.
Supply Ability: 100000 Piece/Pieces per Day Diamond segment
Contact Now

Diamond Segment and Graphite Sintering Mold for Long-lasting Stone Cutting Tools

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Segment Application: Cutting Granite
Material: Diamond + Metal Powder Usage: Wet Cutting
Advantage: Wear Resistant Superior Grade: A-Grade
Shape: Shark ,M Use: Diamond Circular Saw Blade
Technology: Hot Pressing Sintering

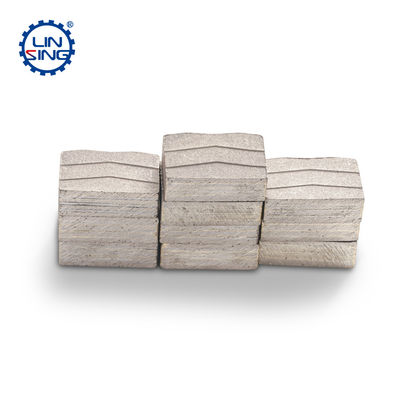

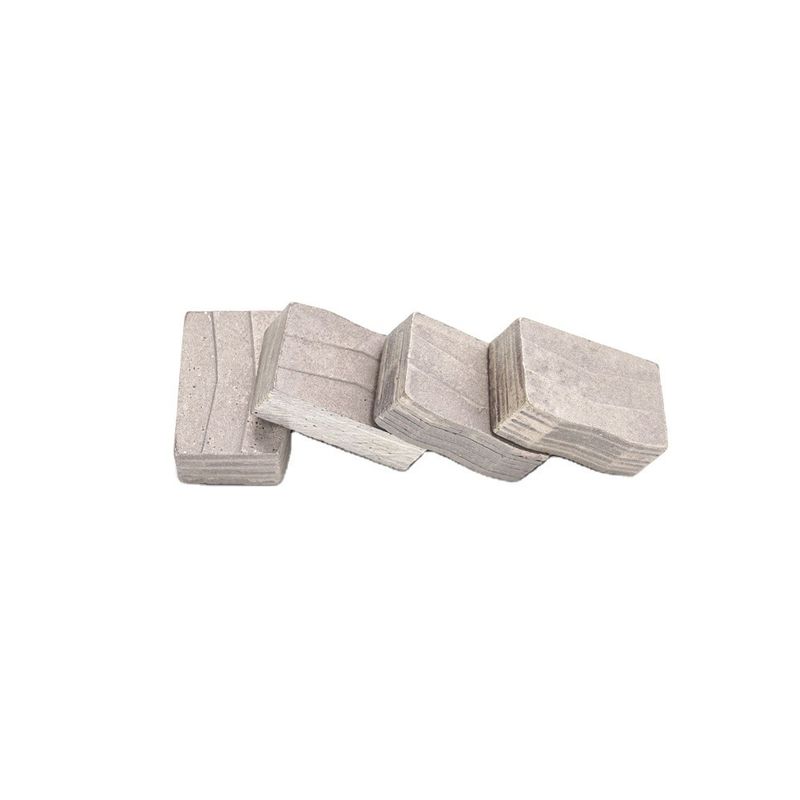

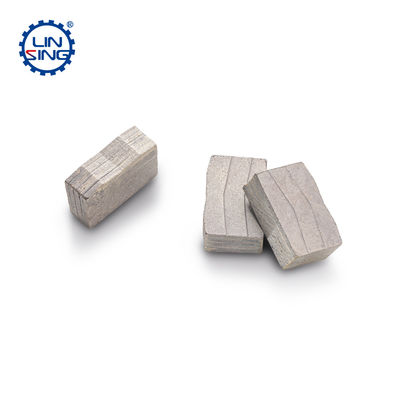

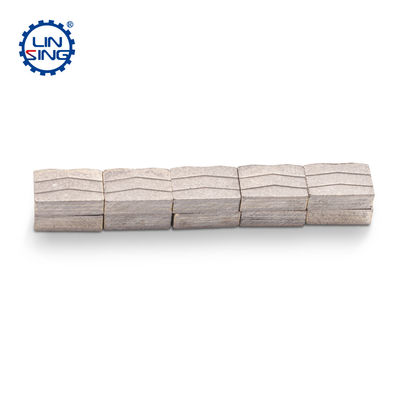

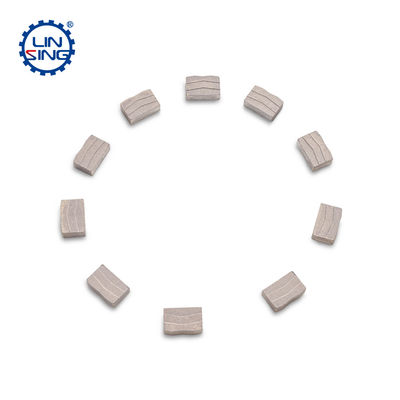

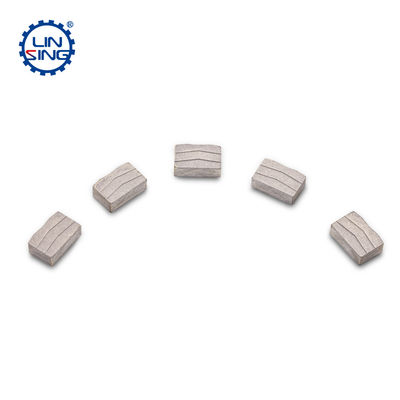

Diamond Segment For Multi-Saw Blade

Multi segment is a kind of diamond tool used in Italian multiblade cutting machine, Chinese multiblade bridge saw machine, or chinese single column multiblade cutting machine. It is usually used to cut stone blocks, and it has the characteristics of high cutting efficiency and stable cutting.

Message



Product Features:
1. The segment has good sharpness against different stone cutting;
2. Long lifespan with high cost-effective;
3. Strict QC for stable cutting performance;
4. Segment shape is easy for opening.

Product Specification:

Multiblade segment for granite cutting

Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Φ1000 (600-2000)

5.0

24x7.0/6.2x15 (13,20)

Φ1200 (530-2800)

5.5

24x7.4/6.6x15 (13,20)

Φ1400 (460-2800)

6.5

24x8.4/7.6x15 (13,20)

Φ1600 (460-3000)

7.2

24x9.2/8.4x15 (13,20)

Other specifications are available upon request.

Multiblade segment for marble cutting

Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Φ1200

4.5

24x5.5x8 (10)

Φ1200

5.0

24x6.0x8 (10)

Φ1200

6.5

24x7.5x8 (10)

Φ1200

7.0

24x8.0x8 (10)

Other specifications are available upon request.
