Granite Quartz Stone Wet Cutting 14 Inch Segmented Diamond Carbide Circular Saw Blade

Large Image : Granite Quartz Stone Wet Cutting 14 Inch Segmented Diamond Carbide Circular Saw Blade

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Circular saw blade

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$32.00/pieces 10-99 pieces
Packaging Details:	Diamond Saw blade Packed by Carton, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Arix diamond saw blade

Contact Now

Granite Quartz Stone Wet Cutting 14 Inch Segmented Diamond Carbide Circular Saw Blade

Description

Warranty:	None	Blade Thickness:	0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width:	1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other	Arbor Size:	7/8IN, 10mm, 5/8in
Teeth Per Inch:	10, 24, 28	Teeths:	28
Blade Length:	6in, 6 1/2in, 10in, 14in	Blade Diameter:	18in, 12in, 14in
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support:	OEM, ODM, OBM	Finishing:	Ti-coated
Size:	D350mm	Grade:	Industrial
Product Name:	Arix Saw Blade	Application:	Granite Cutting
Usage:	Wet Working	Material:	Tungsten Carbide Steel
Advantage:	High Efficiency	Feature:	High Speed.Straight Smooth Edge
Machine:	Bridge Saw Manchines	Quality Grade:	A++ A+
Technology:	Hot Pressing Sintered

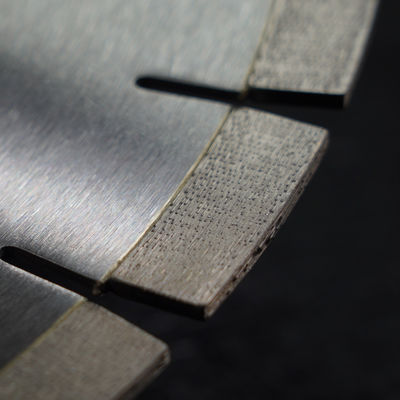

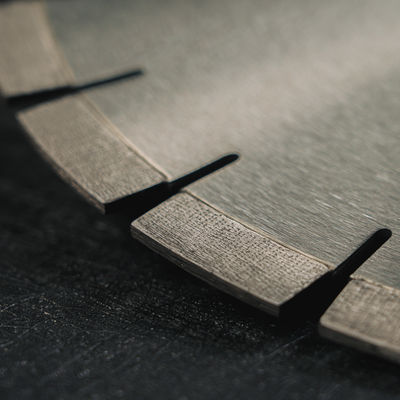

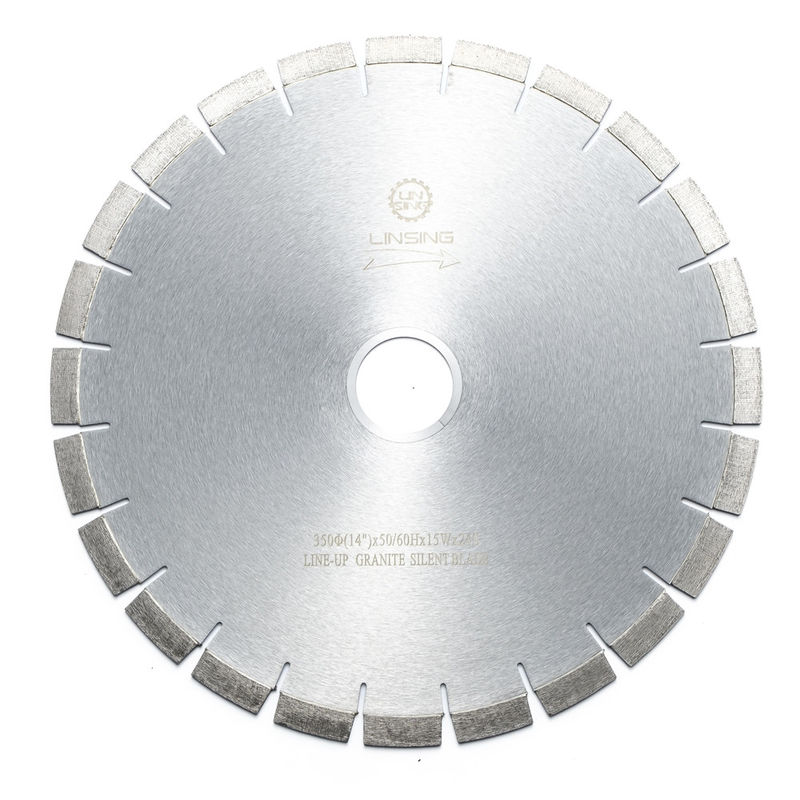

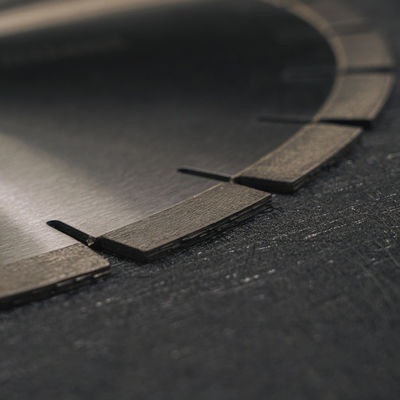

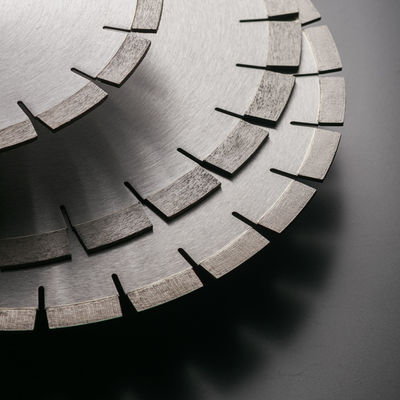

Arix Diamond Circular Saw Blade

Arix saw blade(arrayed saw blade) is a high-quality sawing product with high sharpness and long service life, which is specially used for granite cutting. Its sharpness is about 30% higher than that of general saw blades. The incision is smooth, without edge collapse, with excellent stable cutting performance.

Product Feature:
1. Higher cutting efficiency and low energy consumption than normal blade;
2. Effectively reduce noise and protect the environment;
3. It can be widely used on various power machines;
4. Application: Granite cutting.
Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	43/40×3.2×12(15,20)	21
Φ14”/350	2.2	43/40×3.2×12(15,20)	24
Φ16”/400	2.6	43/40×3.6×12(15,20)	28
Φ18”/450	3.0	43/40×4.2×12(15,20)	32

Other specifications are available upon request.

Granite Quartz Stone Wet Cutting 14 Inch Segmented Diamond Carbide Circular Saw Blade 0
