7/8IN Arbor Size 14" Laser Welded Diamond Circular Saw Blade For Stone Concrete Cutting

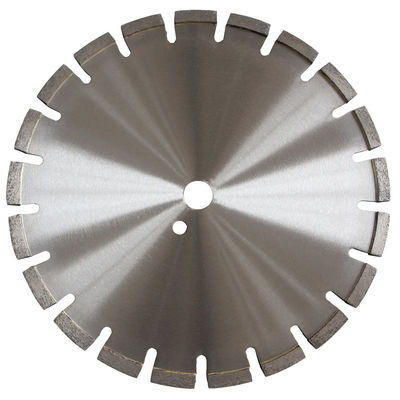

Large Image : 7/8IN Arbor Size 14" Laser Welded Diamond Circular Saw Blade For Stone Concrete Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Laser Weld Diamond Saw Blade

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$12.00/pieces 10-99 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	5000 Piece/Pieces per Week

Contact Now

7/8IN Arbor Size 14" Laser Welded Diamond Circular Saw Blade For Stone Concrete Cutting

Description

Warranty:	None	Blade Thickness:	1.4-2.2mm
Blade Width:	2.2-3.2mm	Arbor Size:	7/8IN, 10mm, 5/8in
Teeth Per Inch:	10, 24	Teeths:	140, 144
Blade Length:	32-40mm	Blade Diameter:	105-400mm
Edge Height:	0.315in(8mm), 0.472in(12mm)	Process Type:	Laser Welded
Customized Support:	OEM, ODM, OBM	Finishing:	CrN
Size:	105-400MM	Grade:	Industrial
Product Name:	Laser Weld Diamond Saw Blade	Material:	Diamond+Metal
Application:	Dry Wet Cutting	Feature:	Safe Operation
Type:	Laser Weld	Use For:	Stone,Concere, Etc
Shape:	Circualr	Package:	Carton
Diameter:	105-400mm

Laser Weld Diamond Saw Blade

This saw blade adopts laser welding process. Laser welding technology enables the manufacturing process to be highly automated,resulting in greatly improved stability and stronger adhesion of the diamonds to the metal substrate.The result is improved efficiency ,cutting life and operator safety.

Product Feature:
1. Laser welded ensures the safe operation;
2. Multi-purpose application and OEM service available;
3. Both dry and wet cutting are available.

Product Specification:

Diameter (inch/mm)	Steel Core Thickness (mm)	Segment Specification (mm)	Segment No. (pcs)
Φ4”/105	1.4	32×2.2×10(2)	8
Φ4.5”/115	1.4	32×2.2×10(2)	9
Φ5”/125	1.4	32×2.2×10(2)	10
Φ6”/150	1.4	32×2.2×10(2)	12
Φ7”/180	1.8	32×2.6×10(2)	14
Φ8”/200	1.8	32×2.6×10(2)	16
Φ9”/230	2.0	38×2.8×10(2)	16
Φ10”/250	2.0	38×2.8×10(2)	17
Φ12”/300	2.2	40×3.2×10(2)	21
Φ14”/350	2.2	40×3.2×10(2)	24
Φ16”/400	2.2	40×3.2×10(2)	28

Other specifications are available upon request. 7/8IN Arbor Size 14" Laser Welded Diamond Circular Saw Blade For Stone Concrete Cutting 0
