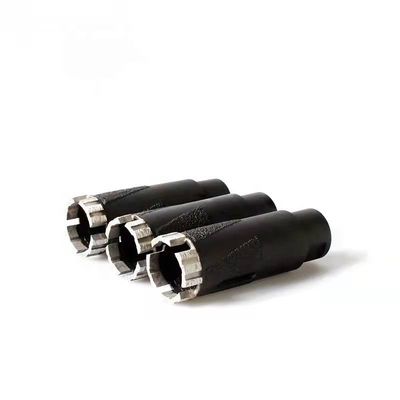

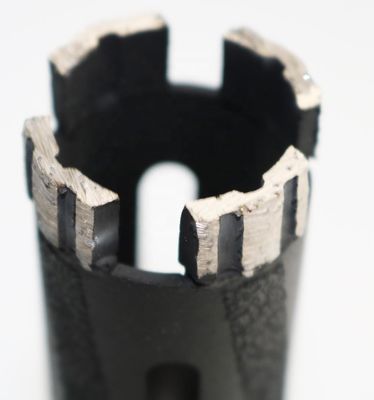

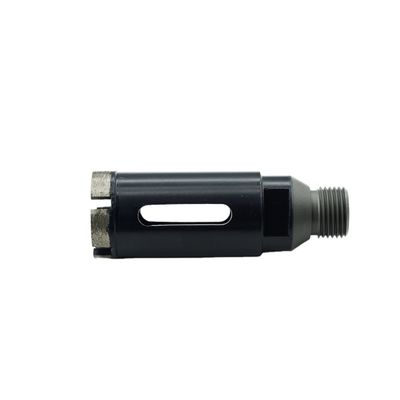

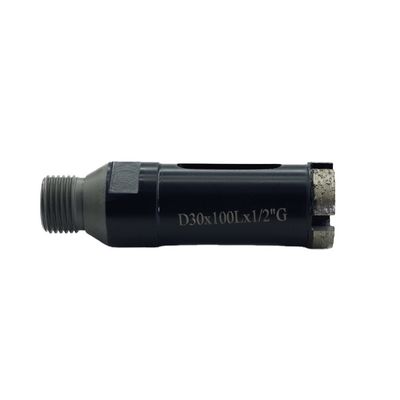

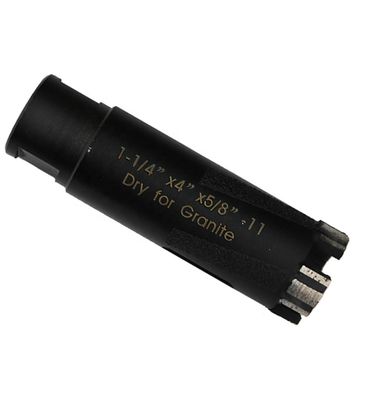

A Grade Diamond Drilling Bits for Basin Drill Customized OEM Support Guaranteed

Large Image : A Grade Diamond Drilling Bits for Basin Drill Customized OEM Support Guaranteed

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Diamond Core Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$18.00/pieces 10-99 pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	1000 Piece/Pieces per Day Dia.250-450 diamond circular saw blade

Contact Now

A Grade Diamond Drilling Bits for Basin Drill Customized OEM Support Guaranteed

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Core Drill Bit	Brand:	Linsing
Material:	Metal+Diamond	Grade:	A+ Grade
Certificate:	TUV&GS	Color:	Red/Black Etc
Usage:	For Drilling Stone	MOQ:	10 Pieces
Diameter:	Drawing	Type:	4 Types

Product feature:
1. High efficiency, long life and no breaking of segments.
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11.
3. Suitable for wet or dry use.
Product specification:

Diameter(mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed(mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

Other specifications are available upon request.

A Grade Diamond Drilling Bits for Basin Drill Customized OEM Support Guaranteed 0

Jiangxi Linxing Diamond Tools Co.,Ltd.

Add: Pharmaceutical and Chemical Industry Zone, Tianfanjie, Poyang, Shangrao, Jiangxi Province, China 333105

Contact:Volta

whatsApp: (0086)18907092847

wechat:(0086)13870373717

If you are interested in our diamond tools, pls be free to contact us.

we will reply to you within 24 hours, sincerely hope to be your long-term partner in stone industry.
