A Grade Diamond Segments For Marble Cutting Customized Support for Diamond Tools

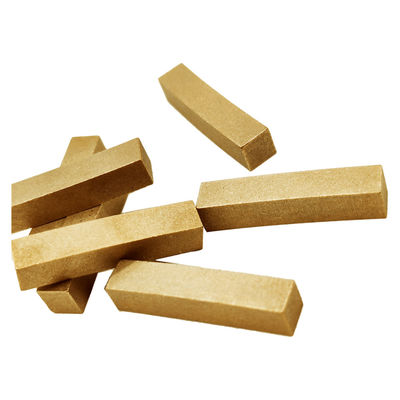

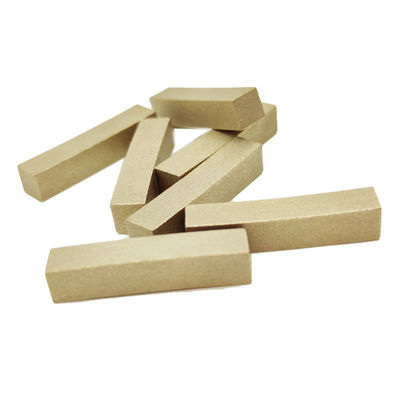

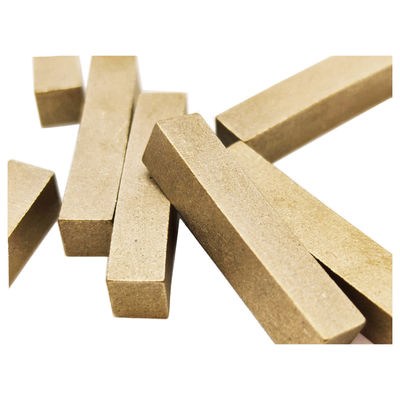

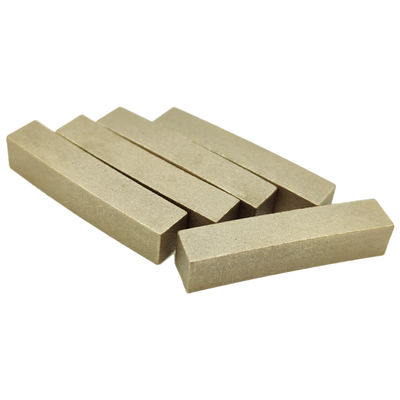

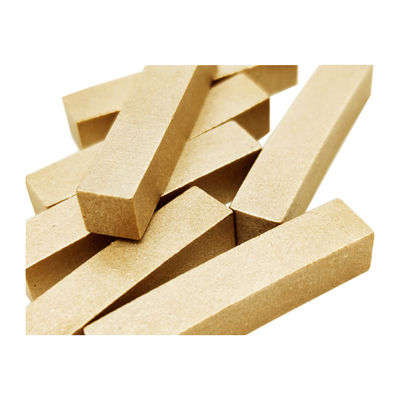

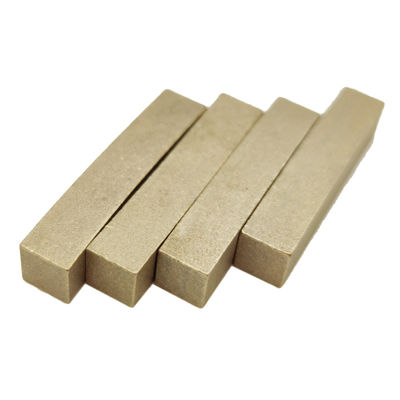

Large Image : A Grade Diamond Segments For Marble Cutting Customized Support for Diamond Tools

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Certification:	TUV&GS
Model Number:	Diamond Segment For Cutting Marble Stone

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$0.50 - $0.62/pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	100000 Piece/Pieces per Day Dia.250-450 diamond circular saw blade

Contact Now

A Grade Diamond Segments For Marble Cutting Customized Support for Diamond Tools

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Marble Cutting Segment	Application:	Marble Cutting
Material:	Diamond + Metal Powder	Shape:	M Shape
MOQ:	100 Pieces	Advantage:	Stabe Performance And Good Sharpness
Grade:	A+ Grade	Packing:	Plastic Box+ Carton+Wooden Frame
Payment:	T/T

Product features:
1. Cutting in high speed without chipping.
2. Strict quality inspection, long lifespan.
3. Stable cutting performance, high cost-effective.
4. Silent and non-silent blade are available.
Production specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10)	25
Φ16”/400	2.6	42/40x3.6x8(10)	29
Φ18”/450	2.8/3.0	40x4x8(10)	32
Φ20”/500	3.0/3.2	40x4.2x8(10)	36
Φ24”/600	3.6/3.8	40x5x8(10)	42
Φ28”/700	4	40x5.2x8(10)	50
Φ32”/800	4.5	40x6x8(10)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.
