D1200MM Diamond Segment for Diamond Powder and Metal Powder Segment Height 13/15/20mm

Large Image : D1200MM Diamond Segment for Diamond Powder and Metal Powder Segment Height 13/15/20mm

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	247.6/8.415MM

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$0.68/pieces 200-499 pieces
Packaging Details:	The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability:	100000 Piece/Pieces per Day Dia.350-3000 diamond circular saw blade

Contact Now

D1200MM Diamond Segment for Diamond Powder and Metal Powder Segment Height 13/15/20mm

Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM
Material:	Diamond Powder + Metal Powder	Diamond Saw Blade:	350mm - 3500mm
Segment Type:	Layer Type	Technology:	Hot Press,cold Press
Segment Height(mm):	13/15/20	Advantage:	Good Cutting Performance
Brand:	LINSING	Application:	High Frequency Welding
Product Name:	Granite Cutting Tools

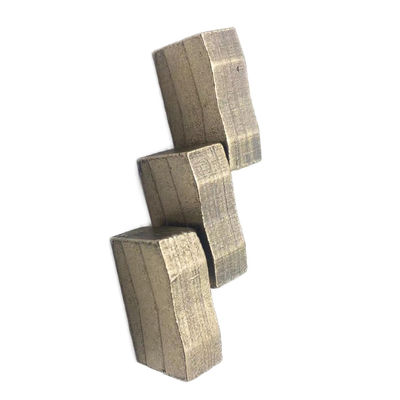

Diamond Segment For Granite Cutting

Granite cutting segment is a diamond tool for cutting granite Linxing s granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long life span with high cost-effective.
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
