Hot Press Sintering Machine High Frequency Brazed Diamond Segments for Granite Cutting

Large Image : Hot Press Sintering Machine High Frequency Brazed Diamond Segments for Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	LXK-0471

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.89/pieces 1000-9999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Necessary Tools Diamond Segment

Contact Now

Hot Press Sintering Machine High Frequency Brazed Diamond Segments for Granite Cutting

Description

Customized Support:	OEM, ODM, OBM	Raw Material:	Diamond. Metal Powder, Etc
Application:	Multiblade	Segment Shape:	M, K, Taper, Sandwich...
Manutacturing Arts:	Sinter	Welding Method:	High Frequency Brazed (Suggest)
Product:	Diamond Cutting Segment	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Necessary Tools Diamond Segment

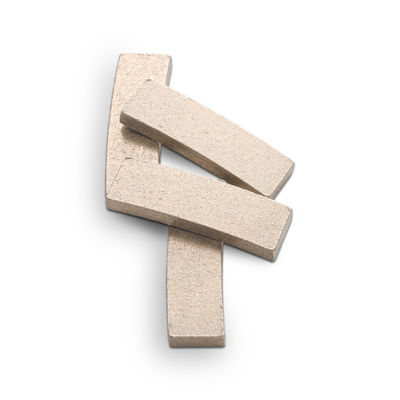

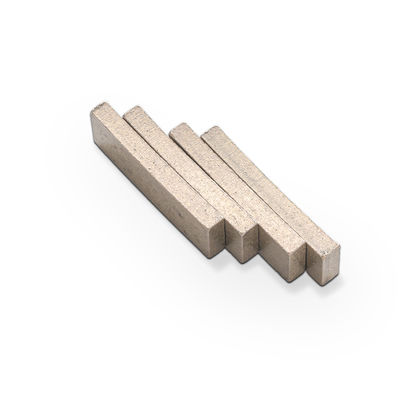

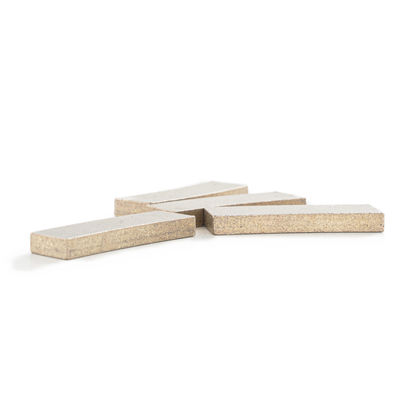

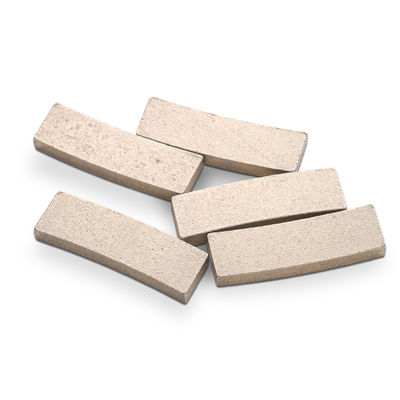

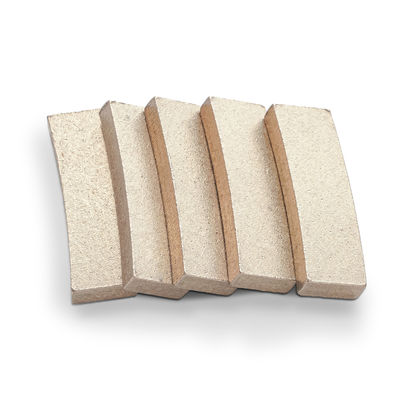

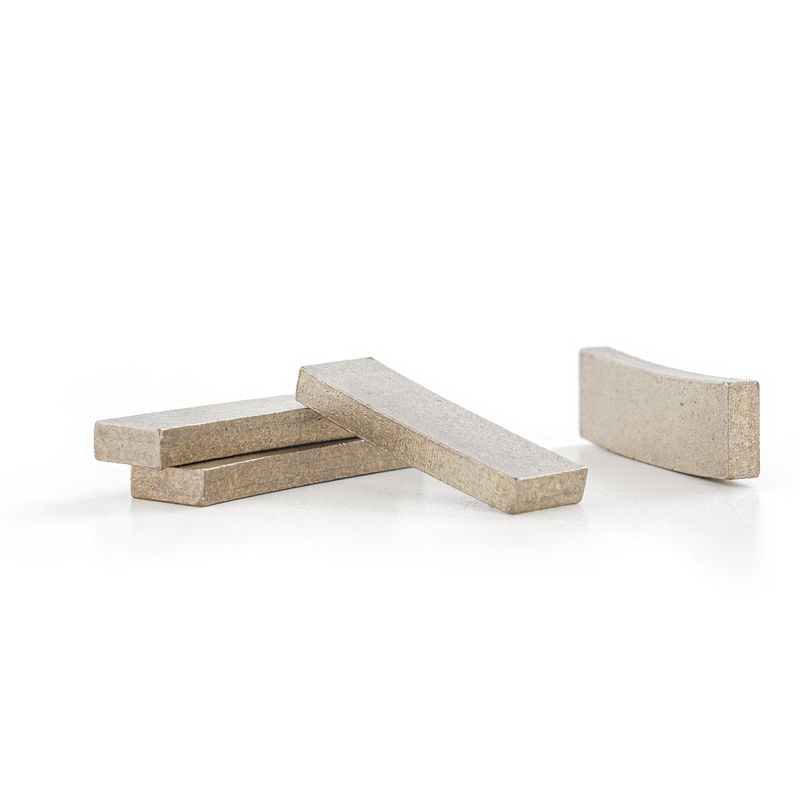

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request. Hot Press Sintering Machine High Frequency Brazed Diamond Segments for Granite Cutting 0
