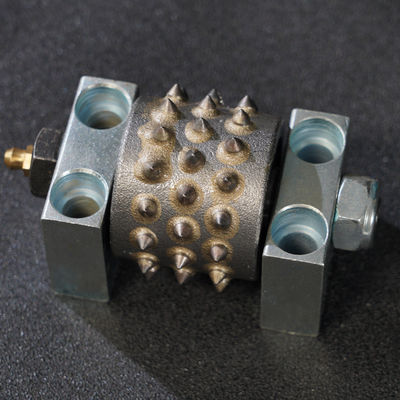

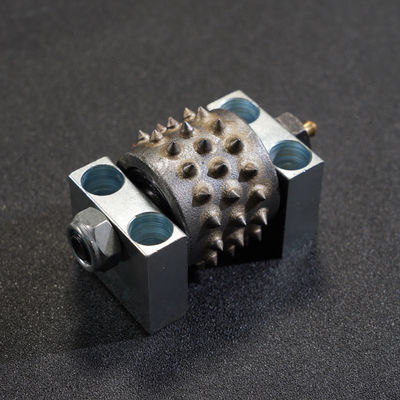

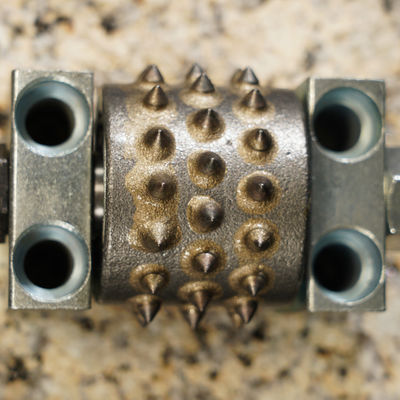

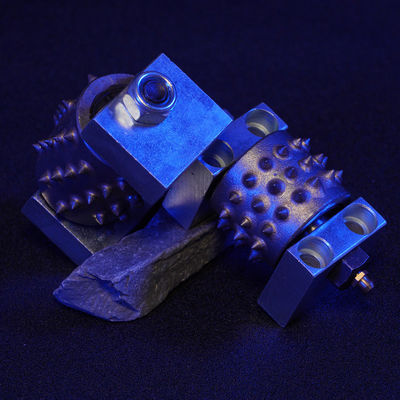

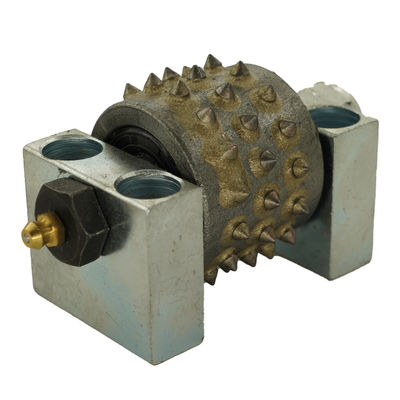

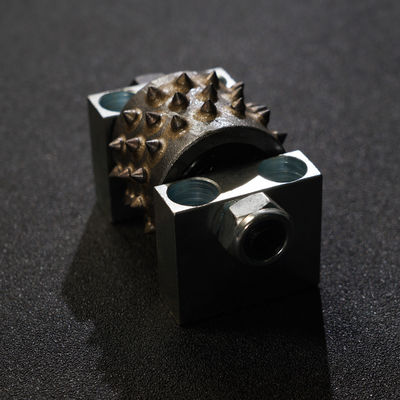

140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine

Certification
China Jiangxi Linxing Diamond Tools Co., Ltd. certification
I'm Online Chat Now

140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine

140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine
140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine 140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine 140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine 140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine 140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine 140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine

Large Image :  140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine

Product Details:
Place of Origin: Fujian, China
Brand Name: LINSING
Certification: Tuv
Model Number: Diamond hammer roller
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $28.00/pieces 50-199 pieces
Packaging Details: Plastic+Carton
Supply Ability: 1000 Piece/Pieces per Day Diamond bush hammer roller

140 170mm Trapezoid Frankfurt Diamond Bush Hammer Plate Roller for Automatic Grinding Machine

Description
Warranty: None Customized Support: OEM, ODM, OBM
Type: Abrasive Disc Product Name: Diamond Bush Hammer Roller
Application: Granite Material: Diamond
Usage: Wet Shape: Trapezoid Frankfurt
Feature: Fast Grinding Speed Machine: Automatic Polishing Machine And Handle Machines
Grit: 40#~600# Advantage: High Hardness
Port: Xiamen, Ningbo, Shenzhen, Guangzhou, Shanghai Port Etc.

Diamond Bush Hammer

Diamond bush hammer is used for surface fabricating, texturing and roughening of smooth stone surfaces, to create anti-slip surfaces on stone floors and steps, etc.



Product Features:

1. Bush hammer plate is used for grinding the surface of granite, marble, concrete and other materials, grind into a rough surface, It plays the role of anti-skid and also can play the role of decoration;
2. The repeated hit of these carbide tips into stone or concrete surface creates a rough, pockmarked texture that looks like naturally weathered rock;
3. This segments of the bush hammer roller is carbides, each plate has 4 rollers, each roller has 30/45/60 segments, the connections of the palte is H47, this bush hammer plate can be used on hand stone polishing machine and auto stone polishing machine;
4. It is suggested that the rotational speed is below 700 RPM, bush hammer tool is 5-6 times faster than manual times, the cost is greatly saved;
5. The grit of bush hammer face can be adjusted and the size of adaptor decide to its machine, other specifications can be customized according to requirements.

 Product Specifications:

Diameter

(mm)

Roller

Quantity

Connection Application
125 3

M14, M16,

5/8"-11

Small Bush

Hammer

150 4

M14, M16,

5/8"-11

Small Bush

Hammer

200 4

Quick

Connector

Bush

Hammer

250 5

Quick

Connector

Bush

Hammer

300 6

Depends on the

machine

Sunk Bush

Hammer

350 8

Depends on the

machine

Sunk Bush

Hammer

400 10

Depends on the

machine

Sunk Bush

Hammer

450 12

Depends on the

machine

Sunk Bush

Hammer

L50 1

Frankfurt

type

Frankfurt Bush

Hammer

Other specifications are available upon request.
