High Frequency Brazed D1500mm Diamond Saw Blade Tips Block for Global Efficiency

Large Image : High Frequency Brazed D1500mm Diamond Saw Blade Tips Block for Global Efficiency

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Certification:	TUV
Model Number:	Diamond Segment For Marble Cutting

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.78/pieces 100-999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Exporter Diamond Segment

Contact Now

High Frequency Brazed D1500mm Diamond Saw Blade Tips Block for Global Efficiency

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Granite Cutting	Application:	For Granite Cutting
Segment Shape:	R Shape	Technolige:	Sinter
Welding Method:	High Frequency Brazed (Suggest)	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Style:	Fan Shape Diamond Segment

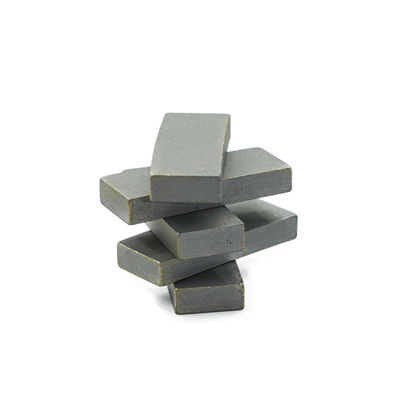

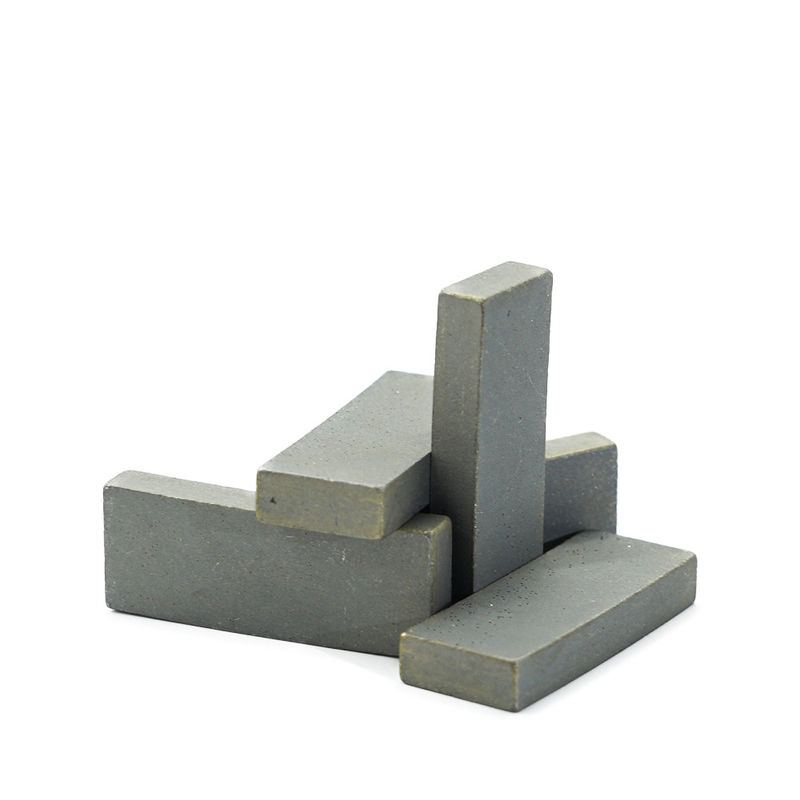

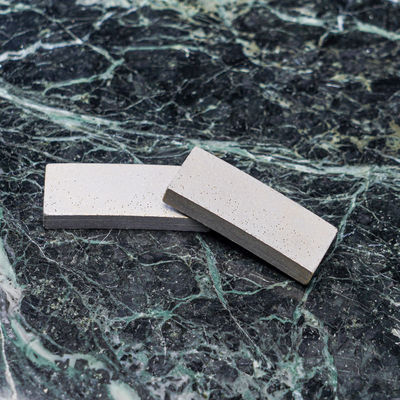

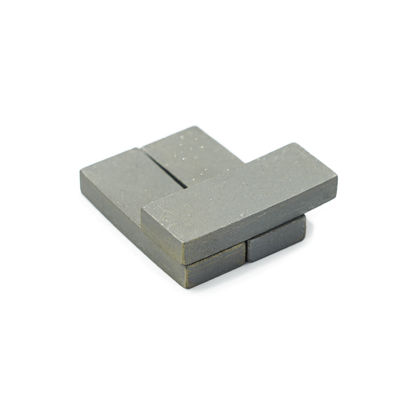

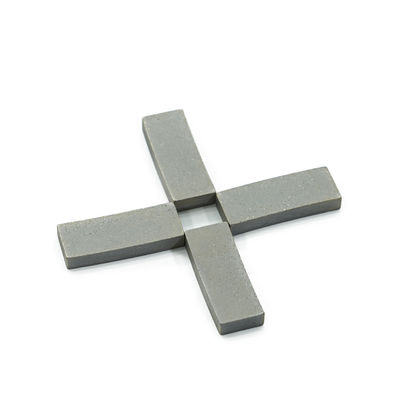

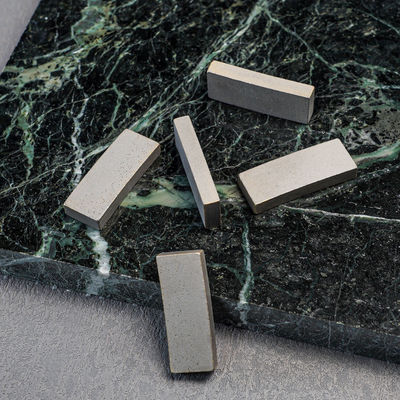

Diamond Segment For Granite Cutting

Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request. High Frequency Brazed D1500mm Diamond Saw Blade Tips Block for Global Efficiency 0
