Sintered Diamond Segment for Indonesian Lava Stone Cutting High Frequency Brazed

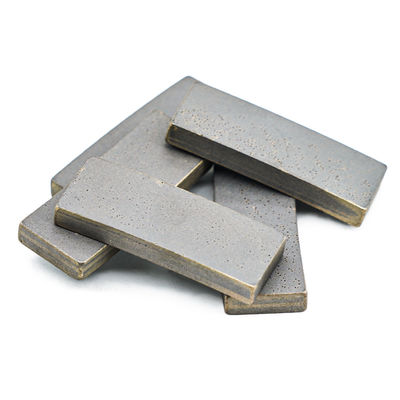

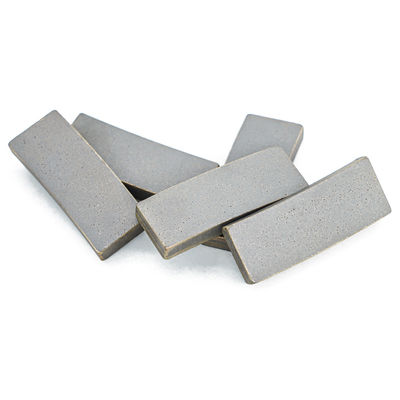

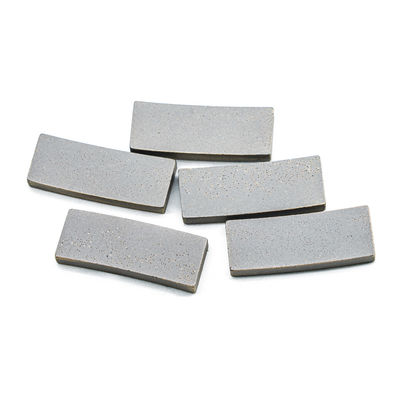

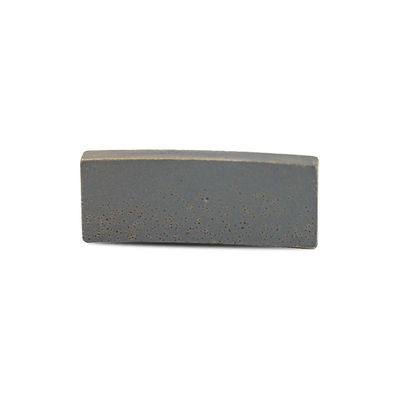

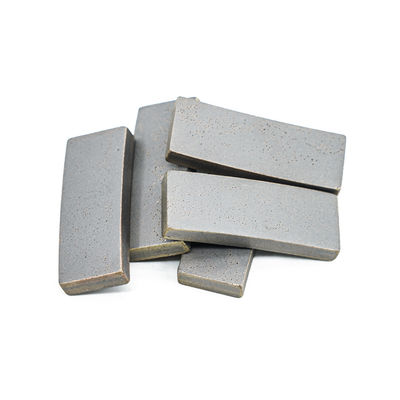

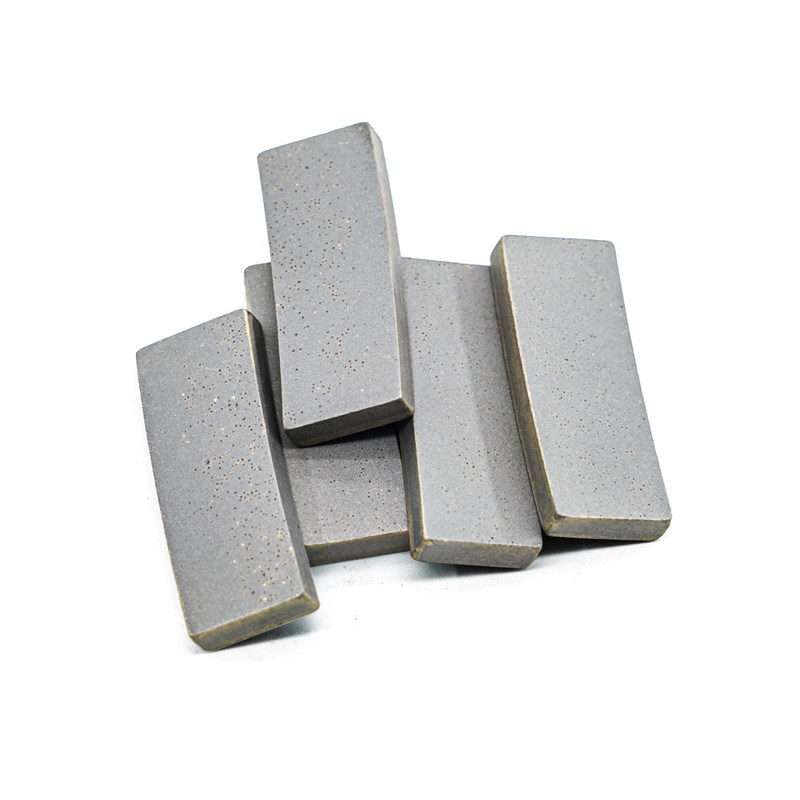

Large Image : Sintered Diamond Segment for Indonesian Lava Stone Cutting High Frequency Brazed

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	Diamond Segments For Andesite

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.01/pieces 100-999 pieces
Packaging Details:	Diamond Cutting Segment Packed by Plastic Box, LINXING LOGO Carton, etc.
Supply Ability:	10000 Set/Sets per Month Teeth For Diamond Cutting Wheel

Contact Now

Sintered Diamond Segment for Indonesian Lava Stone Cutting High Frequency Brazed

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product:	Diamond Segments	Raw Material:	Diamond. Metal Powder, Etc
Segment Shape:	M, K, Taper, Sandwich...	Manutacturing Arts:	Sinter
Welding Method:	High Frequency Brazed (Suggest)	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Teeth For Diamond Cutting Wheel	Certificate:	TUV

Lavastone Cutting Segment

Lavastone cutting segment can be produced for cutting lavastone, there are always manufactured in sandwich and layer design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.

Product Features:

1.Good sharpness and high efficiency without chipping.
2.Strict QC for stable cutting performance.
3.Long lifespan and stable performance.
4.Segment is easy for opening.
5. Good balance assures excellent grinding effect.

Product Specification:

Diameter (mm)	Steel Core (mm)	Segment Size	Segment Number
Φ300	2.2	40×3.2×10	22
Φ350	2.4	40×3.4×10	25
Φ400	2.6	40×3.6×10	29
Φ450	2.8/3.0	40×4.0×10	32
Φ500	3.0/3.2	40×4.2×10	36
Φ600	3.6/3.8	40×4.8×10	42
Φ700	4	40×5.2×10	42
Φ800	4.5	40×6.0×10	46/57
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Other specifications are available upon request.
