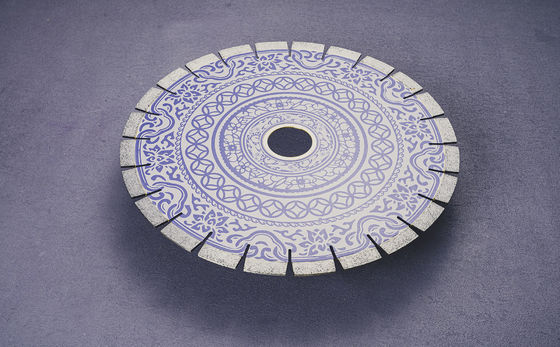

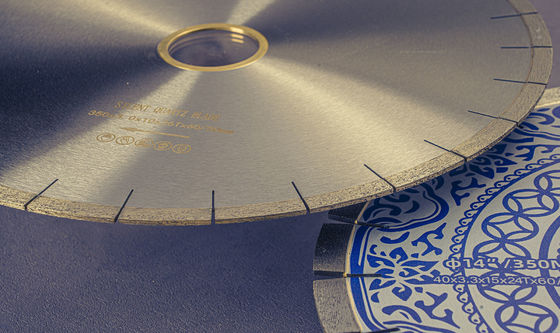

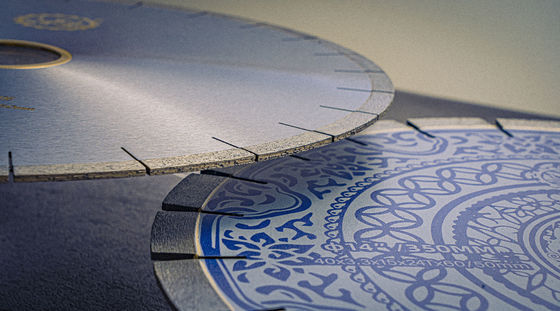

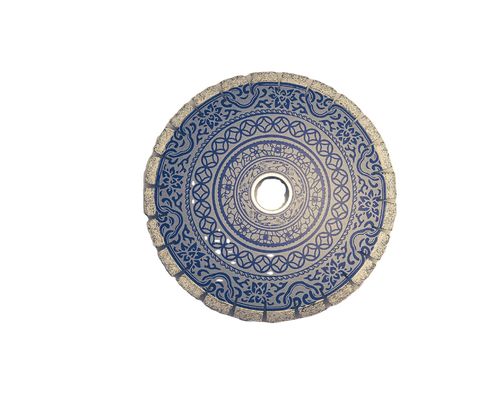

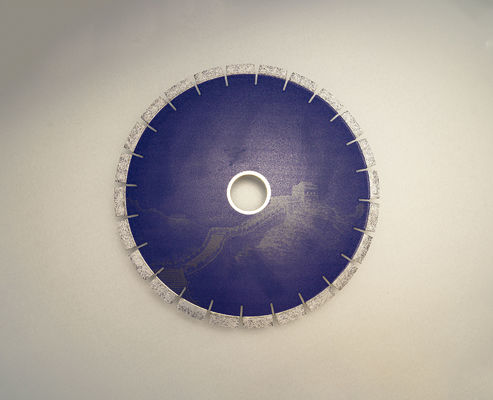

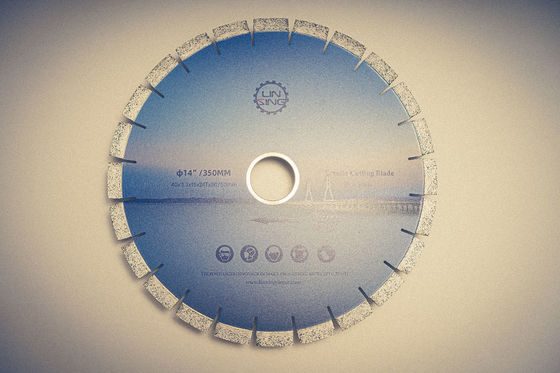

ARC Shape Diamond Metal Powder 350mm Blade for Lazer Bridge Granite Tile Cutting Disc

Large Image : ARC Shape Diamond Metal Powder 350mm Blade for Lazer Bridge Granite Tile Cutting Disc

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Granite blade

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$15.50 - $18.00/pieces
Packaging Details:	Inner packaging plastic film, kraft carton, outer packaging carton
Supply Ability:	10000 Piece/Pieces per Week

Contact Now

ARC Shape Diamond Metal Powder 350mm Blade for Lazer Bridge Granite Tile Cutting Disc

Description

Customized Support:	OEM, ODM, OBM	Application:	Granite Stone Cutting
Material:	Diamond + Metal Powder	Product Name:	Diamond Saw Blade
Type:	Stone Processing Tool	Keywords:	Granite Disc
MOQ:	10 Pcs	Advantage:	Fast Cutting Speed
Diameter:	350mm; 14''	Packing:	One Pcs One Plastic Bag
Segment Shape:	ARC Shape

Product Description

Diamond Saw Blade For Granite
The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15,20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15,20)	24
Φ16”/400	2.6	40x3.6x10(12,15,20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15,20)	32
Φ20”/500	3.0/3.2	40x4x10(12,15,20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15,20)	42
Φ28”/700	4	40x5.2x10(12,15,20)	50
Φ32”/800	4.5	40x6x10(12,15,20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
