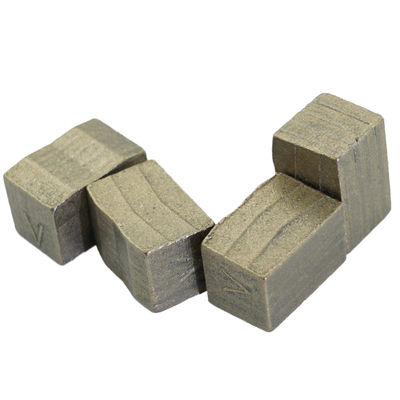

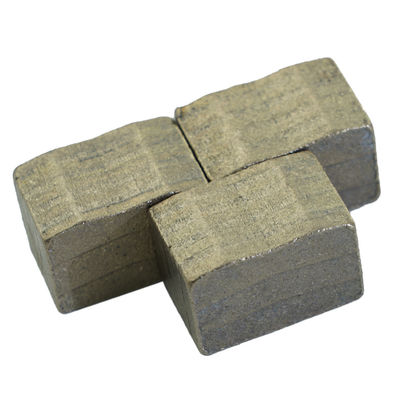

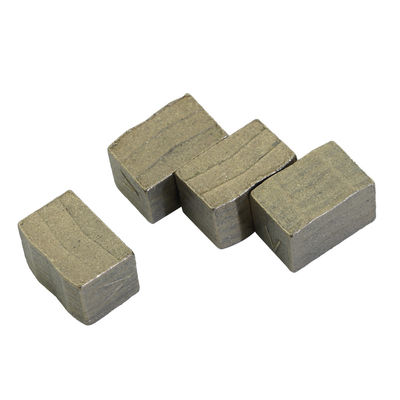

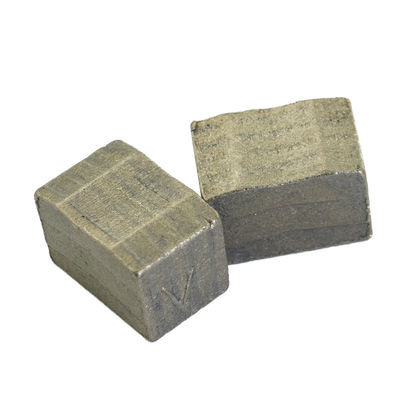

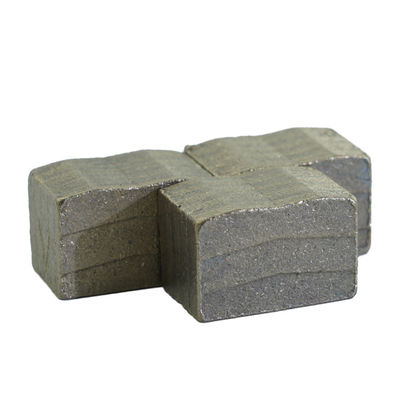

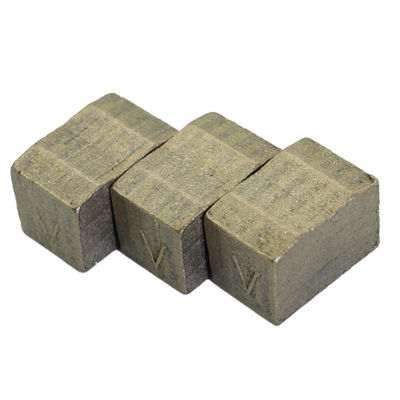

OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm

OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm
OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm

Large Image :  OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINXING
Certification: TUV
Model Number: Diamond Segment For Marble Cutting
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $1.00/pieces 100-999 pieces
Contact Now

OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Segment For Quarrying&Mining Application: For Granite Cutting
Segment Shape: R Shape Technolige: Sinter
Welding Method: High Frequency Brazed (Suggest) Quality: A Grade Segments
Packing: Plastic Paper, LINXING LOGO Carton Export Market: Global
Style: Fan Shape Diamond Segment

Diamond Segment For Quarrying&Mining

Diamond quarrying segment is a kind of diamond tool product commonly used in granite mining. The product is mainly used for the mining of granite stone blocks, it is used on the mine circular saw. By laying the track, the circular saw can mine the stone blocks in the round-trip process.

Product Features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface;
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters;
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:
Double-blades Combinations:
D2200/D3300; D2200/D3600; D2400/D3300; D2400/D3600

Blade Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ2200/2400

9.5/10

22x13.1/13.9x15

132/140

Φ3300/3600

9.5/10

22x12.4/11.6x15

160/180

Triple-blades Combinations:
D2400/D3600/D4200; D2600/D3800/D4600; D2600/D3800/D4800

Blade Diameter(mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No(pcs)

Φ2400/2600

12

22x15.6/16.4x15

142

Φ2400/2600

12

24x15.6/16.4x20

142

Φ3600/3800

12

22x14.6/15.4x15

180

Φ3600/3800

12

24x14.6/15.4x20

180

Φ4200/4600/4800

12

22x13.6/14.4x15

210

Φ4200/4600/4800

12

24x13.6/14.4x20

210

Other specifications are available upon request.OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 0OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 1OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 2OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 3OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 4OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 5OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 6OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 7OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 8OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 9OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 10OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 11OEM Supported Triple-blades Diamond Segments for Mining Stones Cutting 22*15.6/16.4*15mm 12
