High Frequency Brazed Double-blades Diamond Segment for Granite Cutting 2213.1/13.915mm

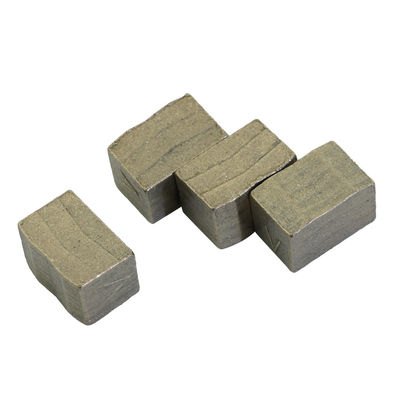

Large Image : High Frequency Brazed Double-blades Diamond Segment for Granite Cutting 22*13.1/13.9*15mm

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Certification:	TUV
Model Number:	Diamond Segment For Marble Cutting

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.00/pieces 100-999 pieces

Contact Now

High Frequency Brazed Double-blades Diamond Segment for Granite Cutting 2213.1/13.915mm

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Quarrying&Mining	Application:	For Granite Cutting
Segment Shape:	R Shape	Technolige:	Sinter
Welding Method:	High Frequency Brazed (Suggest)	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Style:	Fan Shape Diamond Segment

Diamond Segment For Quarrying&Mining

Diamond quarrying segment is a kind of diamond tool product commonly used in granite mining. The product is mainly used for the mining of granite stone blocks, it is used on the mine circular saw. By laying the track, the circular saw can mine the stone blocks in the round-trip process.

Product Features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface;
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters;
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:
Double-blades Combinations:
D2200/D3300; D2200/D3600; D2400/D3300; D2400/D3600

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ2200/2400	9.5/10	22x13.1/13.9x15	132/140
Φ3300/3600	9.5/10	22x12.4/11.6x15	160/180

Triple-blades Combinations:
D2400/D3600/D4200; D2600/D3800/D4600; D2600/D3800/D4800

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No(pcs)
Φ2400/2600	12	22x15.6/16.4x15	142
Φ2400/2600	12	24x15.6/16.4x20	142
Φ3600/3800	12	22x14.6/15.4x15	180
Φ3600/3800	12	24x14.6/15.4x20	180
Φ4200/4600/4800	12	22x13.6/14.4x15	210
Φ4200/4600/4800	12	24x13.6/14.4x20	210

Other specifications are available upon request. High Frequency Brazed Double-blades Diamond Segment for Granite Cutting 22*13.1/13.9*15mm 0
