end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting

Large Image : end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	LXK-MDS009

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.78/pieces 100-999 pieces

Contact Now

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting

Description

Customized Support:	OEM, ODM, OBM	Raw Material:	Diamond. Metal Powder, Etc
Application:	Single Blade Use	Segment Shape:	Fan Shaped, Sandwich...
Manutacturing Arts:	Sinter	Welding Method:	High Frequency Brazed (Suggest)
Product:	Diamond Cutting Segment	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Style:	Fan Shape Diamond Segment

Factory price sintered diamond tools segment for marble limestone stone slab cutting

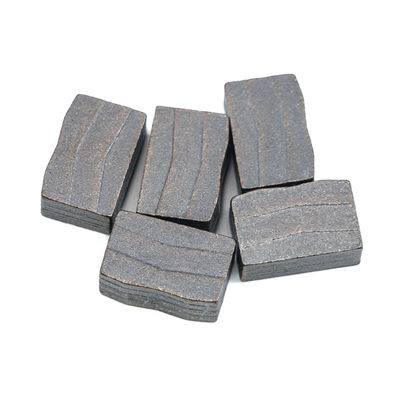

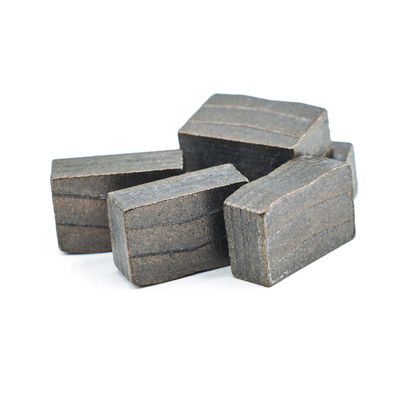

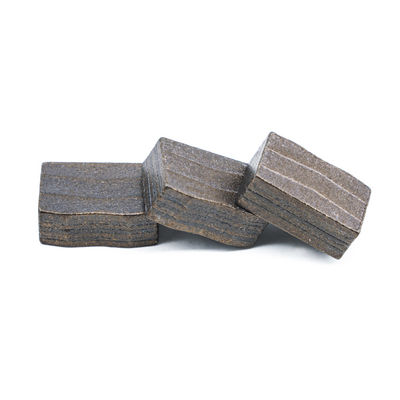

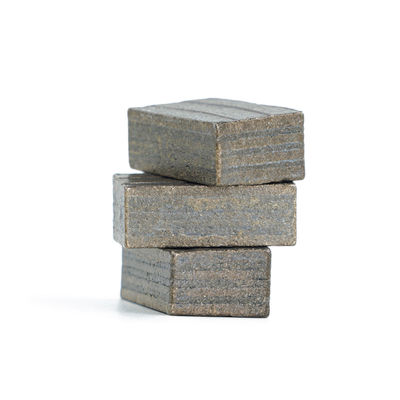

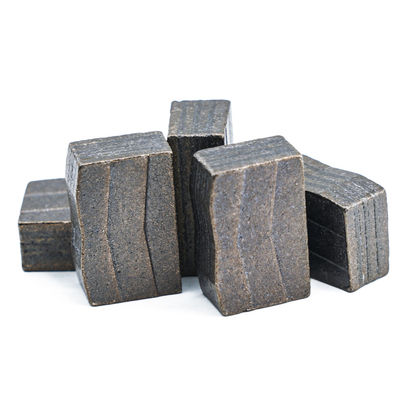

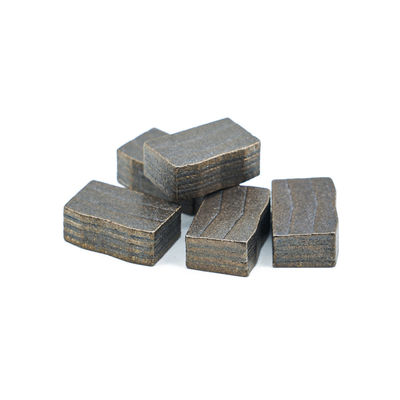

Diamond Segments

Structure:

Diamond segments consist of small-size diamonds and metal bond materials, the metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, etc.

Forms:

M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.

Use:

Cutting Granite, Marble, Sandstone, Limestone, Basalt, Concrete, etc.

Our diamond segments' advantage:

1. High percent of bond materials
2. High grade of diamonds
3. Over 15 years experence with hundreds of formula against different stones

4. Good sharpness, stable performance, long lifespan

5. Strict quality control
4. Keep 40-50 precent market share in China, Already acquired the customers' approval

Product Description

LINXING M and K shape segment with unique "<<" is the most scientific design for stone block cutting, it is easy ofr diamond opening and cutting speed with high cutting efficiency, surely, it is also reducing noise and saving cutting cost for stone factory.

Specification:

Segments for 300-800mm diamond saw blade
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
300	12"	2.0/2.2	40	2.8/3.0	8/10/12/15	21
350	14"	2.2/2.4	40	3.0/3.2	8/10/12/15	24
400	16"	2.6/2.8	40	3.4/3.6	8/10/12/15	28
450	18"	2.8/3.0	40	4.0/4.2	8/10/12/15	32
500	20"	2.8/3.0	40	4.0/4.2	8/10/12/15	36
600	24"	3.6	40	4.6	8/10/12	42
700	28"	4	40	5.2	8/10/12	42
800	32"	4.5	40	6.0	8/10/12	46/57
Segments for 900-3500mm single/multi blades
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
900	36"	5	22/24	6.0/6.6	12/13/15	64
1000	40"	5.5	22/24	6.4/7.0	12/13/15	70
1200	48"	6	22/24	7.4/8.0	12/13/15	80
1400	55"	6.5	22/24	7.8/8.4	12/13/15	92
1600	64"	7.2	22/24	8.4/9.0	12/13/15	108
1800	72"	8	22/24	9.2/9.8	12/13/15/20	120
2000	80"	8	22/24	9.5/10.5	12/13/15/20	128
2200	88"	9	22/24	10.5/11.5	12/13/15/20	132
2500	110"	9	22/24	11.5/12.5	12/13/15/20	140
3000	120"	10	22/24	12.5/13.5	12/13/15/20	160
3500	140"	10	22/24	13.5/14.5	12/13/15/20	180

*Other specifications are available upon request.

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 0

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 1

Company Information

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 13

Jiangxi LINXING Diamond Tools Co.,Ltd., is a professional and key manufacturer of diamond tools in China, located in Pharmacentical and Chemical Industry Zone, Tianfanjie Town, Poyang County, Shangrao, Jiangxi. The main products are all kind of stone cutting tools, including diamond segment, diamond wire saw, 105-800mm diamond saw blade.

Today, especially LINXING' diamond segments have been able to keep 40/50 percent market share in China, this feature allow and prompt all LINXING person to generalize our products worldwide.

The friends, we look forward to working with you sincerely.

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 14

Why choose us?

1. A leading factory of diamond tools industry in China

2. Approved quality with very competitive price

3. Good sharpness, stable performance, high cutting efficiency and long lifespan

4. Strict quality control system, accept inspection by 3rd party

5. Custom design can be meet upon request, small trial order is available in any time

6. Easy communication, LINXING professional sales team will always answer you in time, besides, friendly and helpful after sales service is always there for you.

Packaging & Shipping

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 15

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 16

1.Sample order, customers could choose Fast Express DHL/UPS/FedEx/TNT, door to door.

2.Bulk order, the goods would be sent to you by Sea or by Air, port or airport receiving.
3.Using our agent or your freight agent is up to customers.
4.Delivery time: 7-15 days for samples; 15-30 days for normal bulk order.

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 17

end OEM Size Diamond Segment for Limestone Block Cutting end Precision Cutting 18
