Wet Cutting Linsing Diamond Segment for Quarrying Granite Stone Mine in High Demand

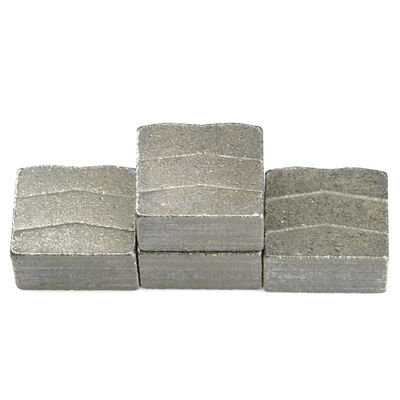

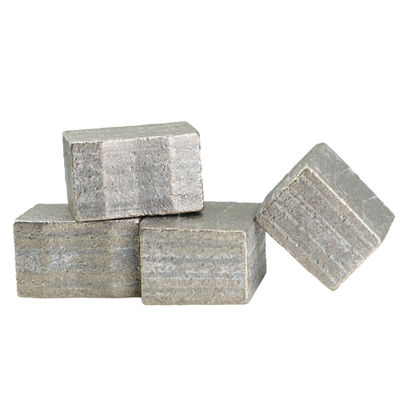

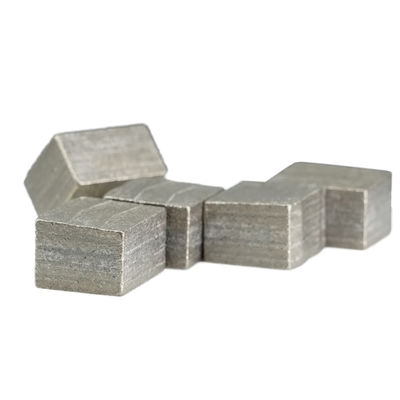

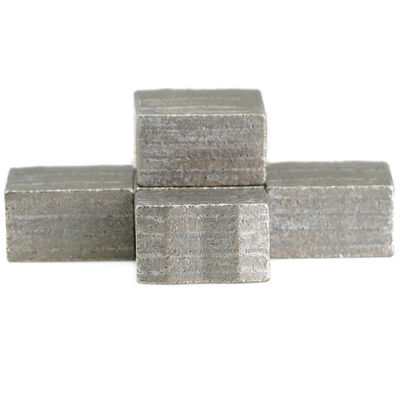

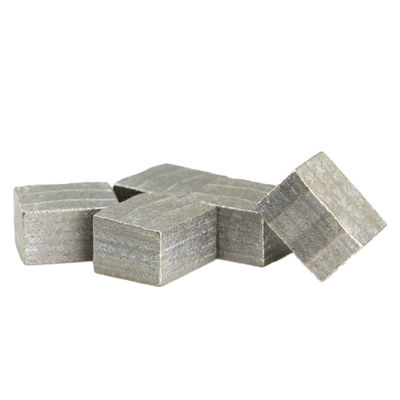

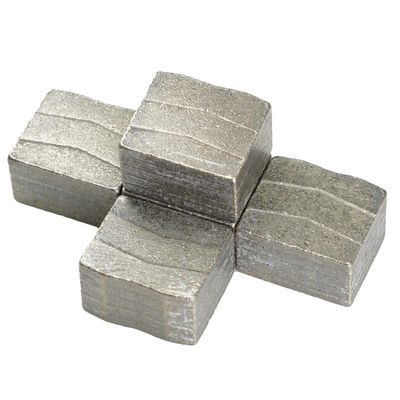

Large Image : Wet Cutting Linsing Diamond Segment for Quarrying Granite Stone Mine in High Demand

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Quarring segment

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.75/pieces 1000-9999 pieces

Contact Now

Wet Cutting Linsing Diamond Segment for Quarrying Granite Stone Mine in High Demand

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Quarrying	Application:	Granite Cutting
Material:	Diamond + Metal Powder	Usage:	Wet Cutting
Feature:	High Performance Cutting	Advantage:	Wear Resistant Superior
Grade:	A-Grade	Shape:	M,K Shape
Length:	22/23/24mm

Diamond Segment For Quarrying&Mining

Diamond quarrying segment is a kind of diamond tool product commonly used in granite mining. The product is mainly used for the mining of granite stone blocks, it is used on the mine circular saw. By laying the track, the circular saw can mine the stone blocks in the round-trip process.

Product Features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface;
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters;
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:
Double-blades Combinations:
D2200/D3300; D2200/D3600; D2400/D3300; D2400/D3600

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ2200/2400	9.5/10	22x13.1/13.9x15	132/140
Φ3300/3600	9.5/10	22x12.4/11.6x15	160/180

Triple-blades Combinations:
D2400/D3600/D4200; D2600/D3800/D4600; D2600/D3800/D4800

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No(pcs)
Φ2400/2600	12	22x15.6/16.4x15	142
Φ2400/2600	12	24x15.6/16.4x20	142
Φ3600/3800	12	22x14.6/15.4x15	180
Φ3600/3800	12	24x14.6/15.4x20	180
Φ4200/4600/4800	12	22x13.6/14.4x15	210
Φ4200/4600/4800	12	24x13.6/14.4x20	210

Other specifications are available upon request.
