Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble

Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble
Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble

Large Image :  Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: D400*10*50mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $25.00/pieces 20-49 pieces
Packaging Details: Can be customized.
Supply Ability: 1000 Piece/Pieces per Week
Contact Now

Cutting Result 1/8IN 350MM 450MM 500MM Diamond Horizontal Saw Blade for Marble

Description
Warranty: 3 Years Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in
Teeth Per Inch: 10, 24 Teeths: 140, 144
Blade Length: 6in, 6 1/2in, 10in Blade Diameter: 18in, 12in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: D350/400/450mm Grade: Industrial
Segment Height: 8/10/12mm Technology: Silver Brazed
Advantage: High Quality Cutting Result Specification: 350~3000mm
Quality: European Quality Approved Blade: 450mm
Origin: Shangrao Province, China Feature: Long Lifespan And Stable Cutting Performance
Application: Granite

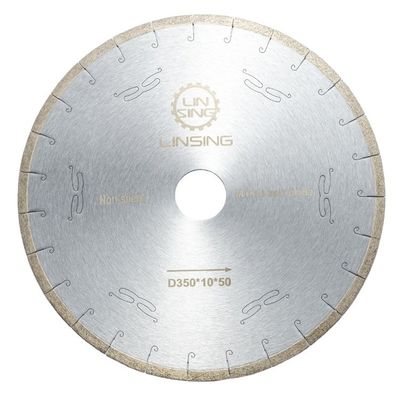

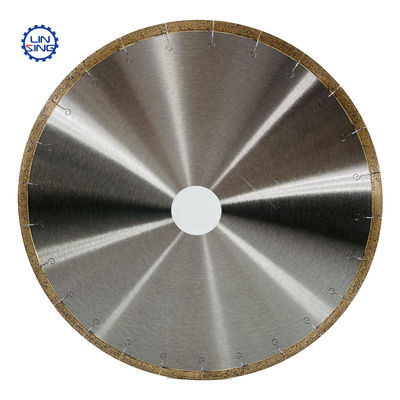

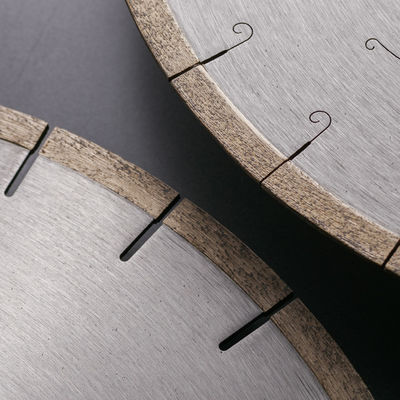

Diamond Horizontal Blade For Marble

Horizontal cutting diamond saw blade is a tool used for horizontal and vertical stone cutting machine It is mainly used to cut marble in the horizontal direction.


Product feature:
1. Good in sharpness and efficiency with a long lifespan.
2. Fast cutting and refine edge cutting quality.
3.Excellent comprehensive cutting performance.


Product specification:

Blade

Diameter

(inch/mm)

Steel Core Thickness

(mm)

Segment Specification For Granite(mm)

Segment Specification For Marble(mm)

Segment No.(pcs)

Φ14”/350

7.5/3.0

40×4.4×10(15)

40×4.6×10

21

Φ16”/400

7.5/3.0

40×4.4×10(15)

40×4.6×10

24

Φ18”/450

7.5/3.0

40×4.4×10(15)

40×4.6×10

26

Φ20”/500

7.5/3.5

40×5.0×10(15)

40×5.5×10

30

Φ22”/550

4.0

40×6.0×10(15)

40×6.0×10

32

Φ24”/600

4.0

40×6.0×10(15)

40×6.0×10

36

Φ26”/650

4.0/4.5

40×6.0×10(15)

40×6.0×10

40

Other specifications are available upon request.
