D800mm Single Blade Segment 40615mm Tip for OEM Support Granite Diamond Disc Cutter

Large Image : D800mm Single Blade Segment 40*6*15mm Tip for OEM Support Granite Diamond Disc Cutter

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	G86527

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	$1.20/pieces 200-4999 pieces

Contact Now

D800mm Single Blade Segment 40615mm Tip for OEM Support Granite Diamond Disc Cutter

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Application:	Mix Cut Granite Stone	Raw Material:	Metal Powder+Diamond
Quality:	Fast Cutting	Keywords:	Sandstone Granite Basalt Segment
Main Market:	South Asia.Vietnam.India.Indonesia.Brazil	Logo:	Linsing
Advantage:	Long Lifespan And Fast Cutting	Size:	40615mm
Shape:	ARC Shape	Structure:	Layer Or Sandwich

Product Description

Diamond Segment For Granite Cutting
Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	42
Φ28”/700	4	40x5.2x10(12,15, 20)	50
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.

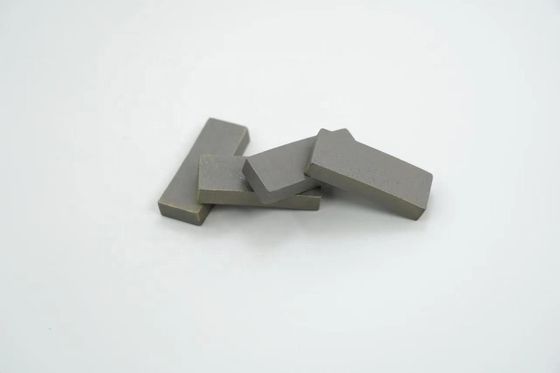

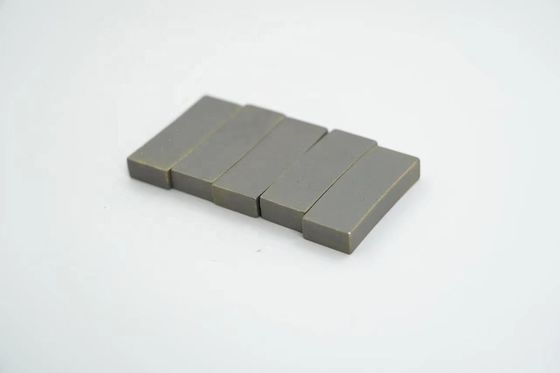

D800mm Single Blade Segment 40*6*15mm Tip for OEM Support Granite Diamond Disc Cutter 0

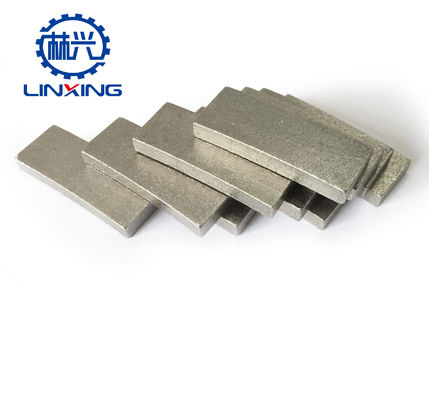

Linxing products

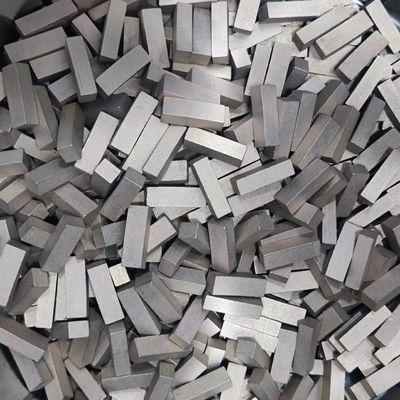

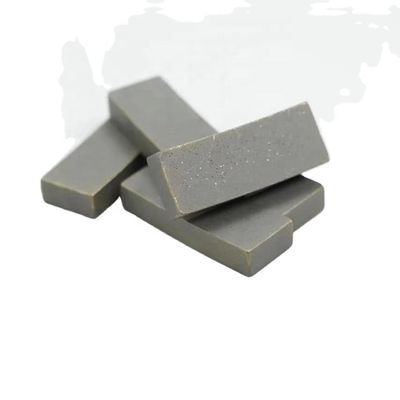

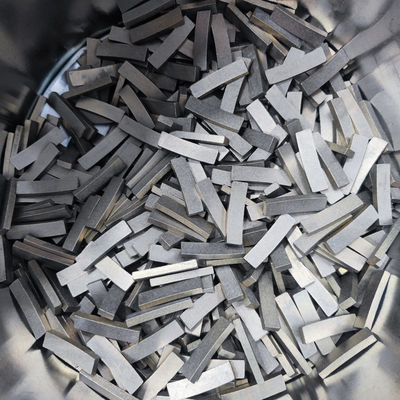

D800mm Single Blade Segment 40*6*15mm Tip for OEM Support Granite Diamond Disc Cutter 10

Packaging & Shipping

D800mm Single Blade Segment 40*6*15mm Tip for OEM Support Granite Diamond Disc Cutter 12
