12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness

12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness
12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness

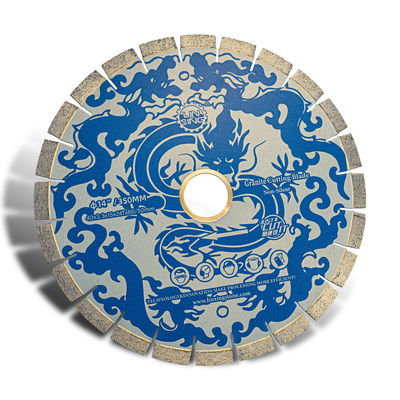

Large Image :  12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: Segmented saw blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $18.30/pieces 10-99 pieces
Packaging Details: Diamond saw blade Packed by plastic film, LINXING LOGO Carton, etc.
Supply Ability: 100000 Piece/Pieces per Month Diamond saw blade for granite
Contact Now

12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in, 50/60mm
Teeth Per Inch: 10, 24, Other Teeths: 140, 144, Other
Blade Length: 6in, 6 1/2in, 10in, Other Blade Diameter: 18in, 12in, 14in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: Dia.14"/350mm Grade: Industrial
Product Name: Granite Cutting Blade Application: Granite Edge
Material: Diamond Powder+Alloy Steel Usage: Wet
Machine: Bridge Cutting Machine Advantage: High Efficiency
Technology: Hot Pressed Sintered Segmented Blades Feature: High Grade Diamond Power
OEM: Accept OEM Teeth Type: Arc Shape

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.



Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.

12-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 012-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 112-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 212-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 312-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 412-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 512-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 612-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 712-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 812-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 912-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1012-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1112-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1212-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1312-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1412-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1512-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1612-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1712-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 1812-20 Inch Marble and Granite Cutting Diamond Saw Blade with 0.02in Blade Thickness 19
