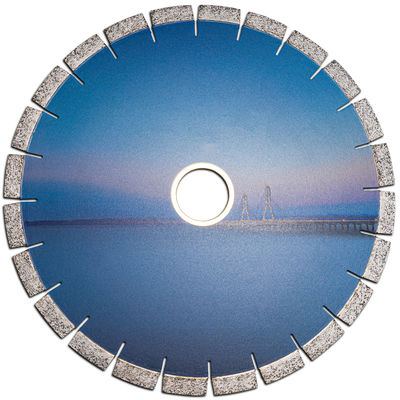

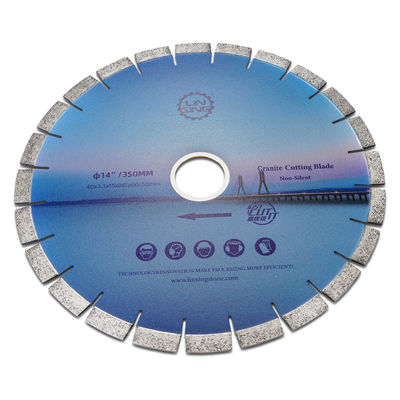

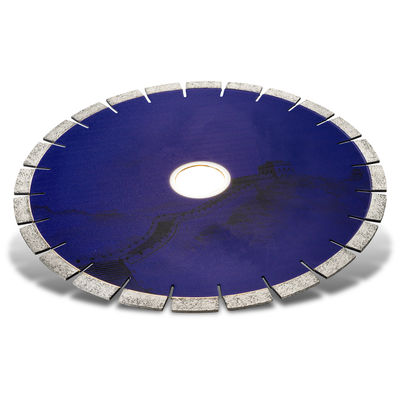

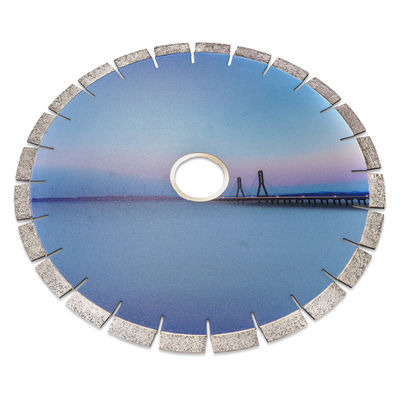

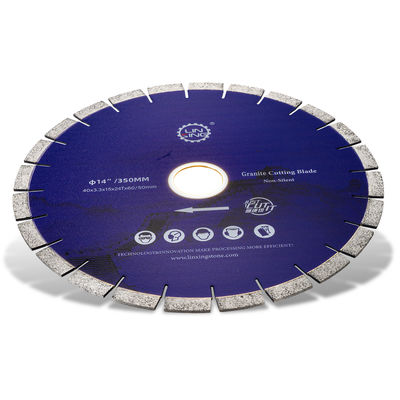

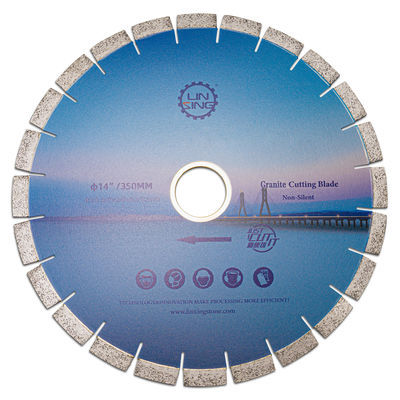

Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness

Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness
Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness

Large Image :  Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Model Number: Segmented saw blade
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $18.30/pieces 10-99 pieces
Packaging Details: Diamond saw blade Packed by plastic film, LINXING LOGO Carton, etc.
Supply Ability: 100000 Piece/Pieces per Month Diamond saw blade for granite
Contact Now

Diamond Cutting Saw Blade for Synthetic Stone Cutting 14in Diameter 0.035in Thickness

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width: 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in, 50/60mm
Teeth Per Inch: 10, 24, Other Teeths: 140, 144, Other
Blade Length: 6in, 6 1/2in, 10in, Other Blade Diameter: 18in, 12in, 14in
Edge Height: 0.315in(8mm), 0.472in(12mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: Dia.14"/350mm Grade: Industrial
Product Name: Granite Cutting Blade Application: Granite Edge
Material: Diamond Powder+Alloy Steel Usage: Wet
Machine: Bridge Cutting Machine Advantage: High Efficiency
Technology: Hot Pressed Sintered Segmented Blades Feature: High Grade Diamond Power
OEM: Accept OEM Teeth Type: Arc Shape

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.



Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
