248.0/8.820.5MM Diamond Segment Customized OBM Support for Hard Sandstone Cutting

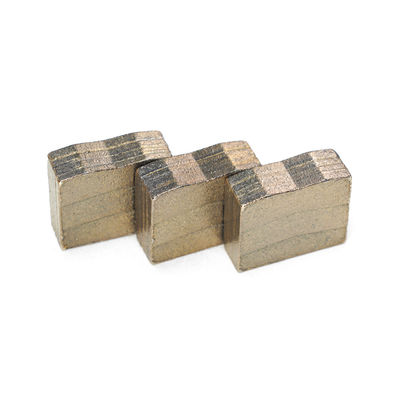

Large Image : 24*8.0/8.8*20.5MM Diamond Segment Customized OBM Support for Hard Sandstone Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	LXK-0454

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.93/pieces 1000-9999 pieces

Contact Now

248.0/8.820.5MM Diamond Segment Customized OBM Support for Hard Sandstone Cutting

Description

Customized Support:	OEM, ODM, OBM	Raw Material:	Diamond. Metal Powder, Etc
Application:	Multiblade	Segment Shape:	M, K, Taper, Sandwich...
Manutacturing Arts:	Sinter	Welding Method:	High Frequency Brazed (Suggest)
Product:	Diamond Cutting Segment	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Keywords:	Guaranteed Diamond Segments

Diamond Segment For Sandstone Cutting

Sandstone cutting segment is a diamond tool specially used for cutting sandstone stone. Sandstone is a very special kind of stone, it has the characteristics of large hardness span and high abrasiveness, so the quality of segment is required to be high Linxing's sandstone cutting segments has the characteristics of good sharpness, long service life, stable cutting and high cost performance.

Product Features:
1. Good sharpness and super long lifespan;
2. Strict QC for stable cutting performance;
3. Suitable for all kinds of sandstone cutting.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15, 20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15, 20)	24
Φ16”/400	2.6	40x3.6x10(12,15, 20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15, 20)	32
Φ20”/500	3.0/3.2	40x4.2x10(12,15, 20)	35
Φ24”/600	3.6/3.8	40x5x10(12,15, 20)	36/42
Φ28”/700	4	40x5.2x10(12,15, 20)	42
Φ32”/800	4.5	40x6x10(12,15, 20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ54”/1350(For India)	6.5	24x8.8/8.0x15(20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ64”/1600(For India)	7.2	24x9.6/8.8x15(20)	104
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ72”/1800(For India)	7.5	24x9.8/9.0x15(20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request. 24*8.0/8.8*20.5MM Diamond Segment Customized OBM Support for Hard Sandstone Cutting 0
