Global Market A Grade Diamond Segment for Multi-Saw Blade 2200mm Granite Cutting

Large Image : Global Market A Grade Diamond Segment for Multi-Saw Blade 2200mm Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINXING
Model Number:	LXK-MB002

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.70/pieces 1000-9999 pieces

Contact Now

Global Market A Grade Diamond Segment for Multi-Saw Blade 2200mm Granite Cutting

Description

Customized Support:	OEM, ODM, OBM	Raw Material:	Diamond. Metal Powder, Etc
Application:	Multiblade	Segment Shape:	M, K, Taper, Sandwich...
Manutacturing Arts:	Sinter	Welding Method:	High Frequency Brazed (Suggest)
Product:	Diamond Cutting Segment	Quality:	A Grade Segments
Packing:	Plastic Paper, LINXING LOGO Carton	Export Market:	Global
Style:	M Shape Diamond Segment

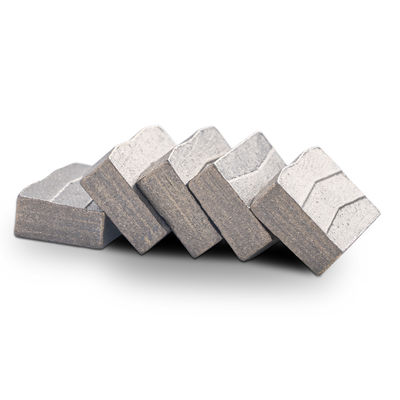

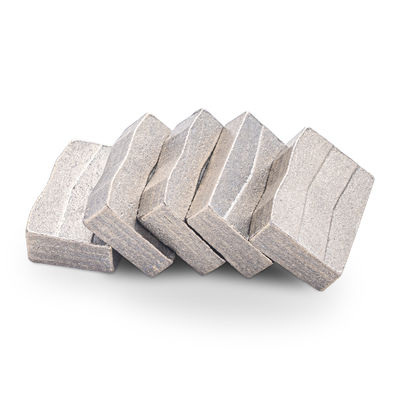

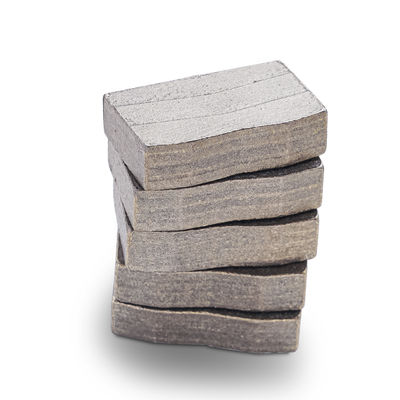

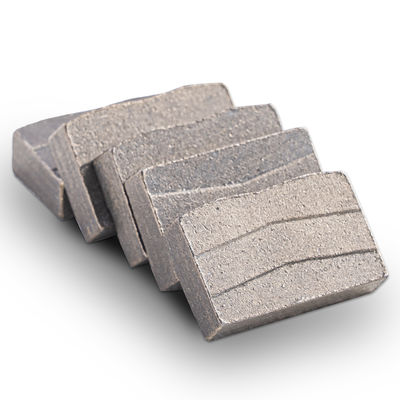

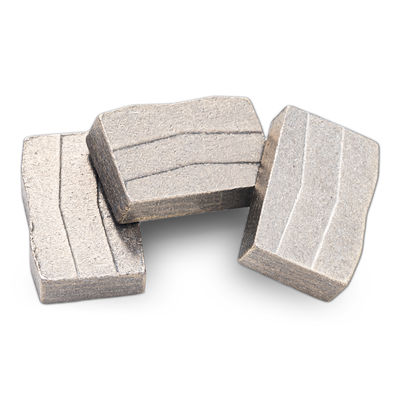

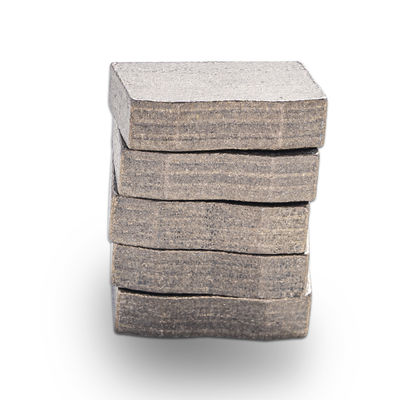

Diamond Segment For Multi-Saw Blade

Multi segment is a kind of diamond tool used in Italian multiblade cutting machine, Chinese multiblade bridge saw machine, or chinese single column multiblade cutting machine. It is usually used to cut stone blocks, and it has the characteristics of high cutting efficiency and stable cutting.

Product Features:
1. The segment has good sharpness against different stone cutting;
2. Long lifespan with high cost-effective;
3. Strict QC for stable cutting performance;
4. Segment shape is easy for opening.

Product Specification:

Multiblade segment for granite cutting

Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)
Φ1000 (600-2000)	5.0	24x7.0/6.2x15 (13,20)
Φ1200 (530-2800)	5.5	24x7.4/6.6x15 (13,20)
Φ1400 (460-2800)	6.5	24x8.4/7.6x15 (13,20)
Φ1600 (460-3000)	7.2	24x9.2/8.4x15 (13,20)

Other specifications are available upon request.

Multiblade segment for marble cutting

Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)
Φ1200	4.5	24x5.5x8 (10)
Φ1200	5.0	24x6.0x8 (10)
Φ1200	6.5	24x7.5x8 (10)
Φ1200	7.0	24x8.0x8 (10)

Other specifications are available upon request. Global Market A Grade Diamond Segment for Multi-Saw Blade 2200mm Granite Cutting 0
