D350mm Diamond Turbo Cutting Stone Granite Disc Saw Blade for Marble Edge Cutting

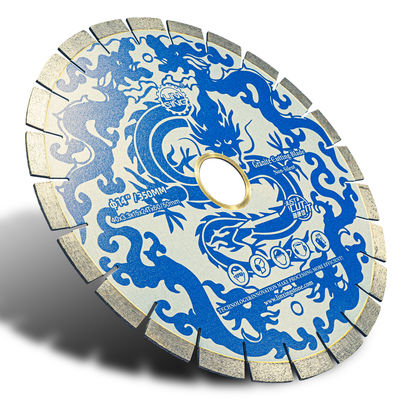

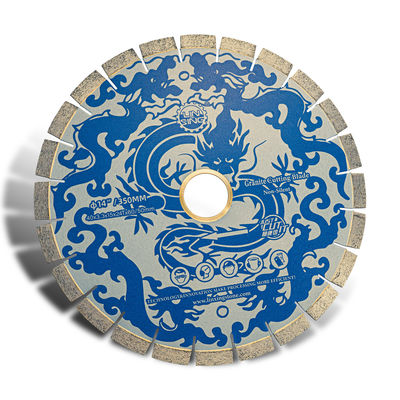

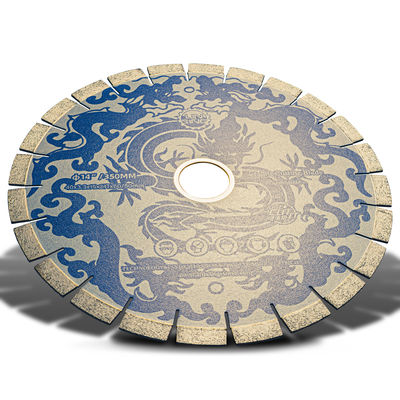

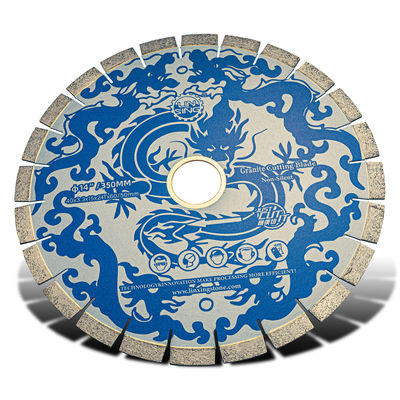

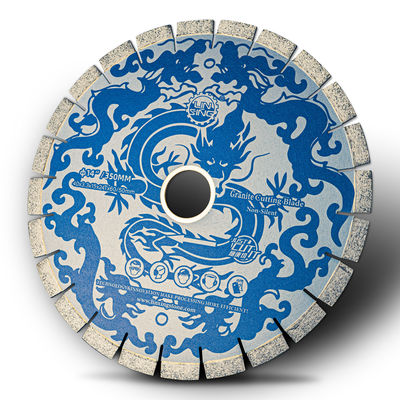

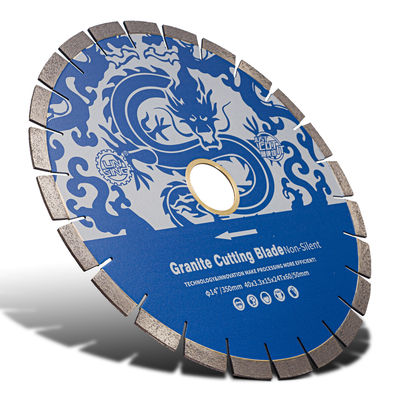

Large Image : D350mm Diamond Turbo Cutting Stone Granite Disc Saw Blade for Marble Edge Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	TUV
Model Number:	Segmented saw blade

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$21.00/pieces 100-999 pieces

Contact Now

D350mm Diamond Turbo Cutting Stone Granite Disc Saw Blade for Marble Edge Cutting

Description

Warranty:	None	Blade Thickness:	0.014in, 0.032in, 0.05in, 0.02in, 0.018in, 0.025in
Blade Width:	1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/4in, 3/16in, Other	Arbor Size:	7/8IN, 10mm, 5/8in, 50/60mm
Teeth Per Inch:	10, 24	Blade Length:	6in, 6 1/2in, 10in
Blade Diameter:	18in, 12in, Other	Edge Height:	0.315in(8mm), 0.472in(12mm)
Process Type:	HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS	Customized Support:	OEM, ODM, OBM
Finishing:	Nitride	Size:	D350mm
Grade:	Industrial	Product Name:	Circular Saw Blade
Application:	Granite	Material:	Diamond Powder+Alloy Steel
Usage:	Dry Wet Cutting	Machine:	Bridge Cutting Machine
Advantage:	High Efficiency	Feature:	High-efficiency Cutting
Technology:	Hot Pressing Sintered	Quality Grade:	Standard Grade

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	40x3.2x10(12,15,20)	21
Φ14”/350	2.2/2.4	40x3.2x10(12,15,20)	24
Φ16”/400	2.6	40x3.6x10(12,15,20)	28
Φ18”/450	2.8/3.0	40x4x10(12,15,20)	32
Φ20”/500	3.0/3.2	40x4x10(12,15,20)	36
Φ24”/600	3.6/3.8	40x5x10(12,15,20)	42
Φ28”/700	4	40x5.2x10(12,15,20)	50
Φ32”/800	4.5	40x6x10(12,15,20)	46
Φ36”/900	5.0	24x7.0/6.2x15(13,20)	64
Φ40”/1000	5.0	24x7.0/6.2x15(13,20)	70
Φ48”/1200	5.5	24x7.4/6.6x15(13,20)	80
Φ52”/1300	6.0	24x8.0/7.2x15(13,20)	88
Φ56”/1400	6.5	24x8.4/7.6x15(13,20)	92
Φ64”/1600	7.2	24x9.2/8.4x15(13,20)	108
Φ72”/1800	7.5	24x10.0/9.2x15(13,20)	120
Φ80”/2000	8.0	24x10.6/9.8x15(13,20)	128
Φ88”/2200	8.0/9.0	24x11.0/10.2x15(13,20)	132
Φ100”/2500	9.0	24x11.4/10.6x15(13,20)	140
Φ120”/3000	9.5	24x12.4/11.6x15(13,20)	160
Φ140”/3500	9.5	24x12.4/11.6x15(13,20)	180

Other specifications are available upon request.
