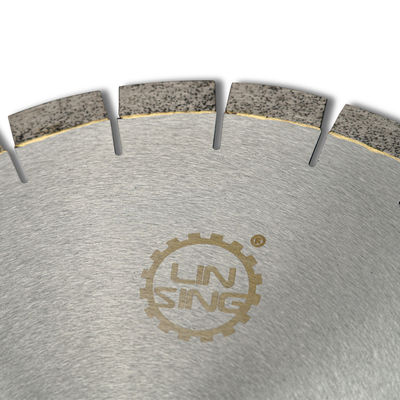

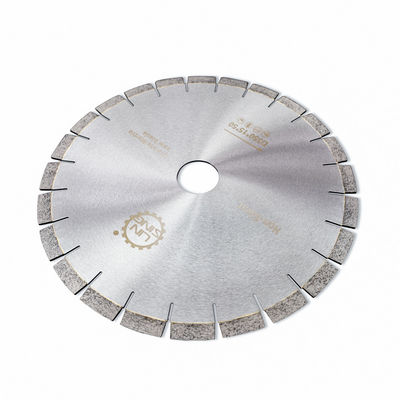

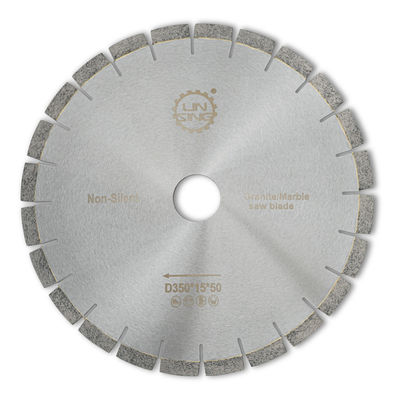

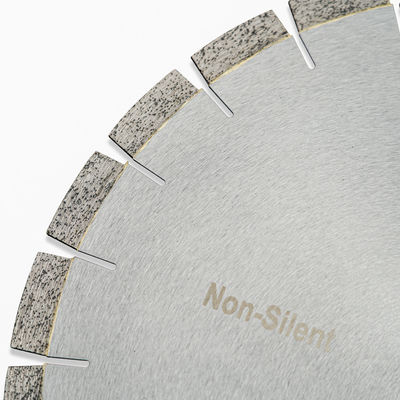

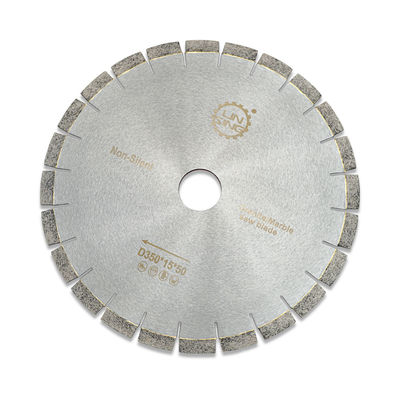

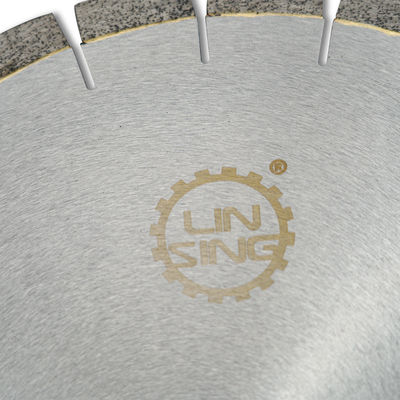

400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding

400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding
400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding

Large Image :  400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINXING
Model Number: LXK-0446
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $30.00/pieces 10-499 pieces
Contact Now

400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding

Description
Warranty: None Customized Support: OEM, ODM, OBM
Raw Material: Diamond. Metal Powder, Etc Application: Multiblade
Manutacturing Arts: Sinter Welding Method: High Frequency Brazed (Suggest)
Product: Diamond Cutting Segment Quality: A Grade Segments
Packing: Plastic Paper, LINXING LOGO Carton Export Market: Global
Keywords: Silence Saw Blade Style: Luxury

Diamond Saw Blade For Granite

The saw blade used for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products Features:
1. Good sharpness, high efficiency and long lifespan;
2. Smooth cutting without chipping;
3. Stable cutting and high cost-effective;
4. Silent and non-silent blade are available.

Product Specification:

Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 0400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 1400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 2400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 3400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 4400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 5400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 6400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 7400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 8400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 9400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 10400mm A Grade Segments Diamond Cutting Disc for Marble Granite Cutting and Grinding 11
