Marble Cutting Segments 40510mm Diamond Tools for and ARC Shape Stone Cutting 450mm

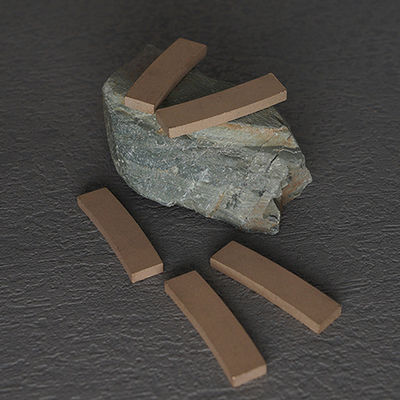

Large Image : Marble Cutting Segments 40*5*10mm Diamond Tools for and ARC Shape Stone Cutting 450mm

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	M71253

Payment & Shipping Terms:

Minimum Order Quantity:	150 pieces
Price:	$0.66/pieces 150-9999 pieces

Contact Now

Marble Cutting Segments 40510mm Diamond Tools for and ARC Shape Stone Cutting 450mm

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment For Marble	Keywords:	Marble Cutting Segments
Application:	Marble Splitting	Usage:	Wet Cutting
Material:	Diamond + Copper Powder	Size:	Customer's Requirement
Shape:	ARC Shape	Advantage:	High Efficiency And Long Lifespan
OEM:	Accpetable	Website:	Https://www.linxingstone.com

Product Description

Diamond Segment For Marble Cutting
The segment used for marble processing, mainly used for cutting block, slab and thin plate etc.

Forms:

M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.

Our LINXING diamond segments' advantage:

1. High percent of bond materials.
2. High grade of diamonds.
3. Over 15 years experence with hundreds of formula against different stones.
4. Good sharpness, stable performance, long lifespan.
5. Strict quality control.
6. Keep 40-50 precent market share in China, Already acquired the customers' approval.

Applications:

Cutting Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone, Concrete, Ceramic Tile etc.

Specification:

Diamond segments for block cutting:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Diamond segments for gangsaw:

Product name	Steel Blank Thickness(mm)	Head size(mm)	No.	Shape	application
Linxing Gang Saw Segment	5.0	20×4.6/4.0×8(10)	25-32	Z1T	Marble Limestone And other Soft stone
	3.0	20×5.0/4.4×8(10)	25-32
	3.5	20×5.4/4.8×8(10)	25-32
