Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw

Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw
Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw

Large Image :  Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Certification: ISO9001:2008
Model Number: Marble cutting tools
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.86/pieces 1000-9999 pieces
Contact Now

Rooftop Segments Diamond Cutting Tips for Marble and Granite Wet Cutting on Bridge Saw

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Diamond Segment Application: Cutting Marble
Material: WC+CO Usage: Wet Cutting
Keywords: Diamond Cutting Tips Advantage: High Wear Resistance
Color: Customized Color Machine: Bridge Saw
Grade: A-Grade

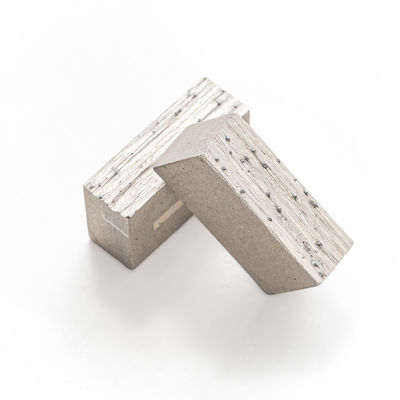

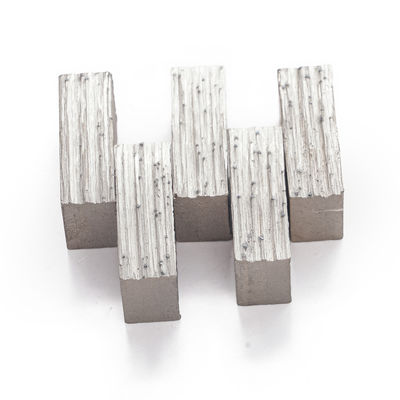

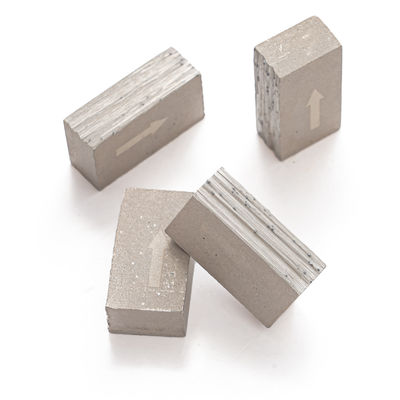

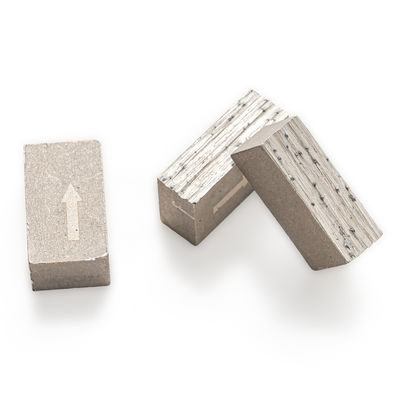

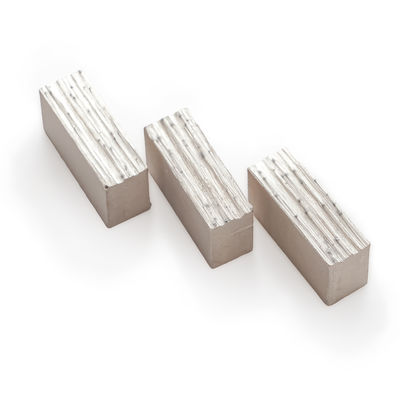

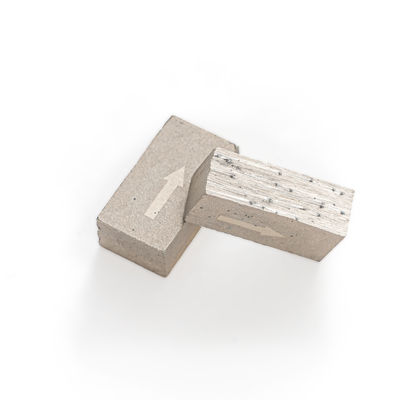

Diamond Segment For Marble Cutting

The segment used for marble processing, mainly used for cutting block, slab and thin plate etc.



Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long lifespan with high cost-effective;
4. Segment is easy for opening.

Product Specification:



Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

42/40x3.2x8(10,12,15)

22

Φ14”/350

2.2/2.4

42/40x3.4x8(10,12,15)

25

Φ16”/400

2.6

42/40x3.6x8(10,12,15)

29

Φ18”/450

2.8/3.0

40x4x8(10,12,15)

32

Φ20”/500

3.0/3.2

40x4.2x8(10,12,15)

35

Φ24”/600

3.6/3.8

40x5x8(10,12,15)

42

Φ28”/700

4

40x5.2x8(10,12,15)

50

Φ32”/800

4.5

40x6x8(10,12,15)

57

Φ36”/900

5.0

24x7.5x8(10,12,13,15)

64

Φ40”/1000

5.0

24x7.5x8(10,12,13,15)

70

Φ48”/1200

5.5

24x8.0x8(10,12,13,15)

80

Φ52”/1300

6.0

24x8.5x8(10,12,13,15)

88

Φ56”/1400

6.5

24x9.0x8(10,12,13,15)

92

Φ64”/1600

7.2

24x9.2x8(10,12,13,15)

108

Φ72”/1800

7.5

24x10x8(10,12,13,15)

120

Φ80”/2000

8.0

24x10.5x8(10,12,13,15)

128

Φ88”/2200

8.0/9.0

24x11x8(10,12,13,15)

132

Φ100”/2500

9.0

24x11x8(10,12,13,15)

140

Φ120”/3000

9.5

24x12x8(10,12,13,15)

160

Φ140”/3500

9.5

24x12x8(10,12,13,15)

180

Other specifications are available upon request.
