Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin

Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin
Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin

Large Image :  Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Model Number: Diamond Slotted Blade Disc
Payment & Shipping Terms:
Minimum Order Quantity: 40 pieces
Price: $19.00/pieces >=40 pieces

Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin

Description
Warranty: None Customized Support: OEM, ODM, OBM
Application: Profiling Stone Slab Edge Material: Metal Powder Diamond Resin
Product Name: Diamond Slotted Blade Disc Feature: High Performance Cutting
MOQ: 20 Sets Size: 230mm
Packing: Carton Shipping: FEDEX UPS EMS DHL TNT SEA
Service: After-sales Service Quality: High-quality

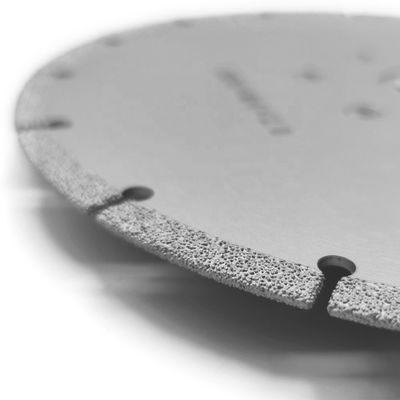

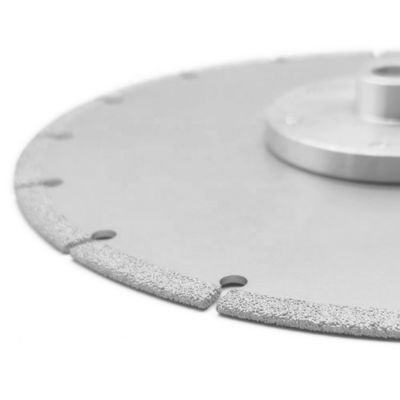

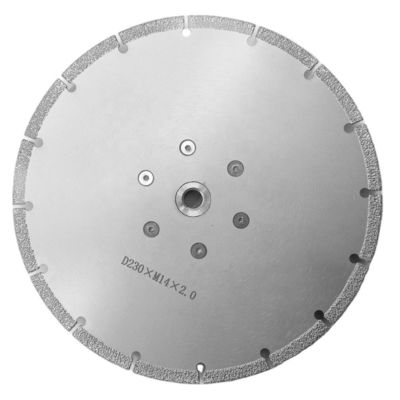

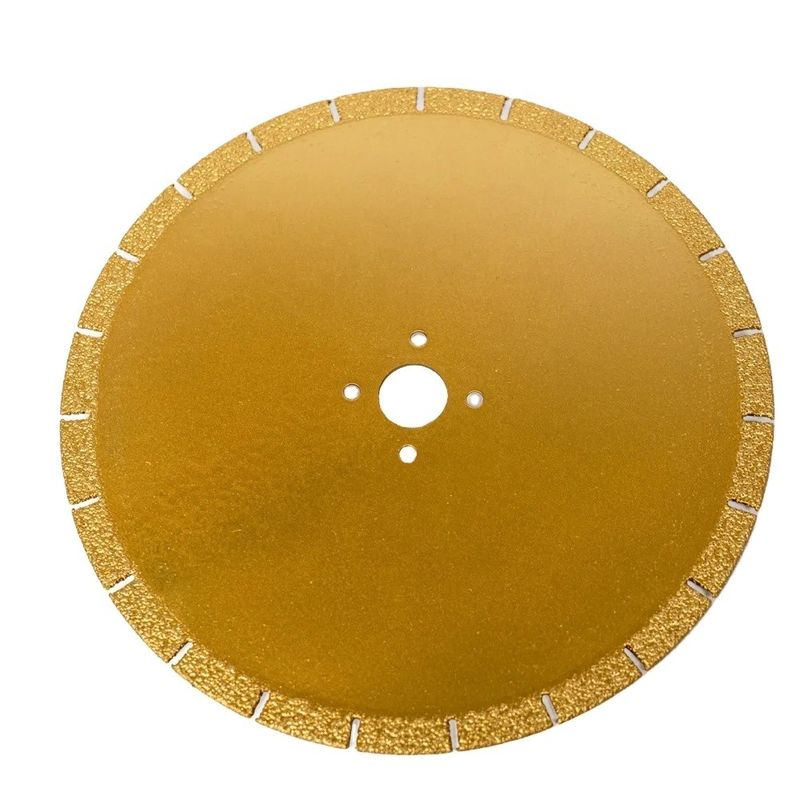

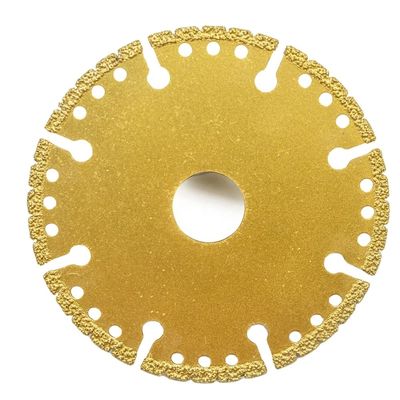

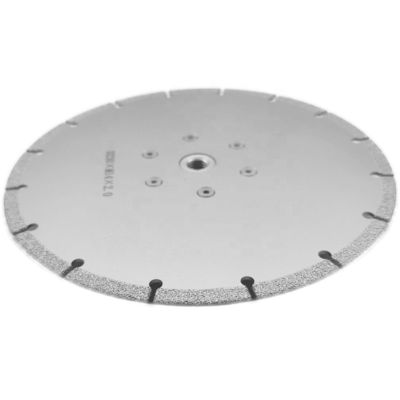

Vacuum Brazed Diamond Saw Blade
Vacuum Brazing diamond multifunction saw blade is a vacuum-brazed diamond blade suitable for cutting a wide range of materials such as wood, plastic, steel sections, sheet metal, aluminum, copper, rubber, cast iron, bricks, blocks, traditional building materials, and cement-based fiber board.

CNC Profiling Wheel
CNC grinding wheel has strong grind ability, excellent polishing degree, and long service life, and can customize the shape required by customers according to the shape of stone.

Product Feature:
1. Fast cutting speed than the sintered blade and longer life than the electroplated blade;
2. It can be used for general-purpose cutting such as stone, brick, concrete, fiberglass, aluminum, PVC, woods, rebar, and other steel products;
3. Both dry and wet cutting are available.
Product specification:

Diameter (inch/mm)

Steel Core Thickness (mm)

 Grit(#)

 Born(mm)

Φ4.5”/115

1.2

30-60#

20/22.23/25.4

Φ5”/125

1.2

30-60#

20/22.23/25.4

Φ6”/150

1.4

30-60#

20/22.23/25.4

Φ7”/180

1.6

30-60#

20/22.23/25.4

Φ9”/230

1.8

30-60#

20/22.23/25.4

Other specifications are available upon request.

Product Description

Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 0Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 1Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 2Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 3

Linxing products

Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 4Cutting Vaccum Brazed Cutter Grinding Disc 230mm with Metal Powder Diamond Resin 5
