Customized Color Diamond Saw Blade for Marble Cutting CNC Stone Grinding Cutter Part

Large Image : Customized Color Diamond Saw Blade for Marble Cutting CNC Stone Grinding Cutter Part

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	ISO9001:2008
Model Number:	Marble cutting tools

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.86/pieces 1000-9999 pieces

Contact Now

Customized Color Diamond Saw Blade for Marble Cutting CNC Stone Grinding Cutter Part

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Segment	Application:	Cutting Marble
Material:	WC+CO	Usage:	Wet Cutting
Keywords:	Diamond Cutting Tips	Advantage:	High Wear Resistance
Color:	Customized Color	Machine:	Bridge Saw
Grade:	A-Grade

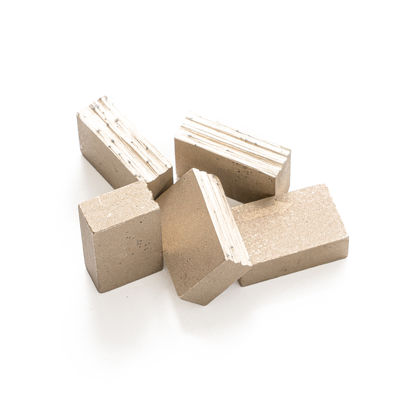

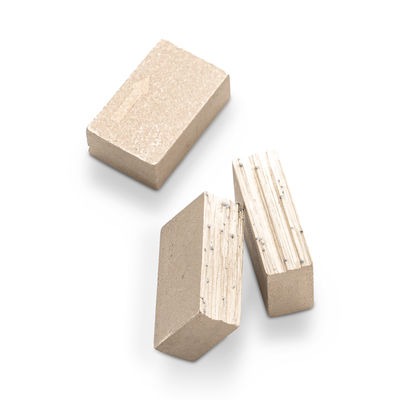

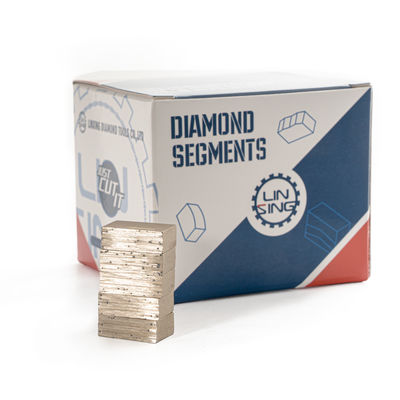

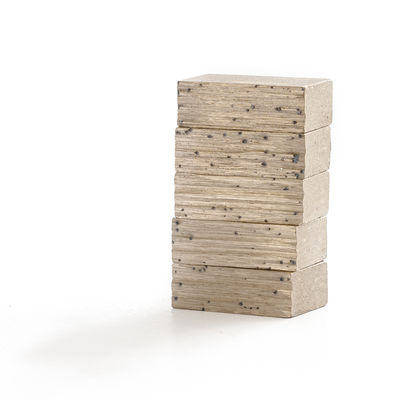

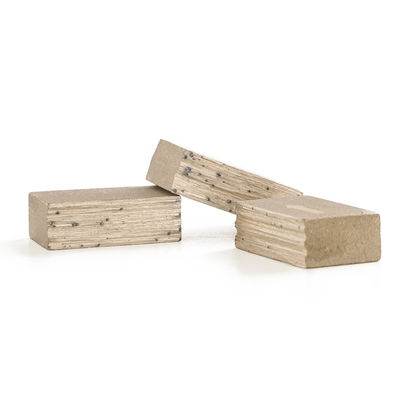

Diamond Segment For Marble Cutting

The segment used for marble processing, mainly used for cutting block, slab and thin plate etc.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long lifespan with high cost-effective;
4. Segment is easy for opening.

Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.
