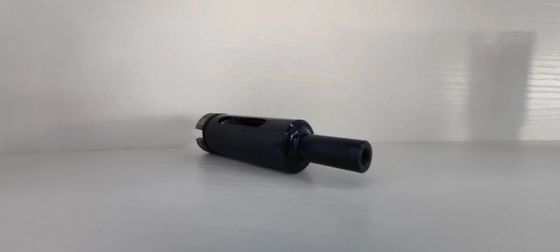

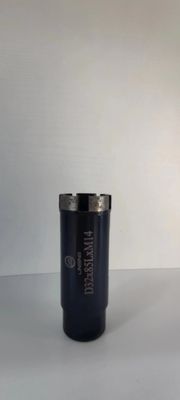

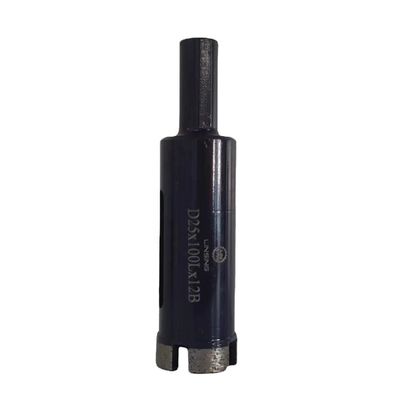

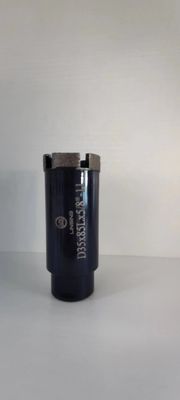

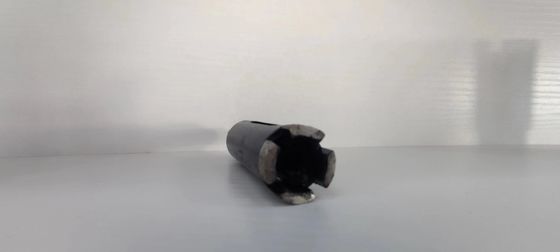

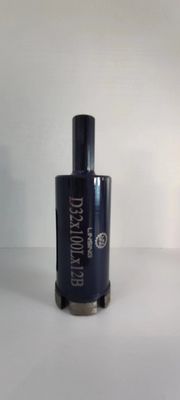

Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling

Large Image : Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Diamond Core Bit

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$3.00/pieces >=10 pieces
Packaging Details:	inner box for one core bit, outer box
Supply Ability:	500 Piece/Pieces per Day

Contact Now

Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling

Description

Warranty:	NONE	Customized Support:	OEM, ODM, OBM
Application:	Granite Drilling	Feature:	Sharpness
MOQ:	10 Pcs	Packing:	Carton Box
Color:	Blue, Red, Black, Etc	Size:	D25100L12B
Length:	85mm	Material:	Segment, Iron Powder, Steel Base
Machine:	Manual Angle Grinder	Service:	Customized Service
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond core drill bits use super grade diamond, with high drilling efficiency They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.

Product feature:
1. High efficiency, long life, and no breaking of segments.
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11.
3. Suitable for wet or dry use.
Product specification:

Diameter(mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed(mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

Other specifications are available upon request.

Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling 0

Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling 10

Straight Shank Wet Using Sintered Diamond Core Drill Bit for Granite Stone Drilling 11
