Diamond Drilling Tools for Limestone Granite Marble Rock Drilling Hole Saw Grinding

Large Image : Diamond Drilling Tools for Limestone Granite Marble Rock Drilling Hole Saw Grinding

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Certification:	TUV
Model Number:	Vacuum brazed diamond tools

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.80/pieces 10-99 pieces
Packaging Details:	Carton and wooden box
Supply Ability:	800 Piece/Pieces per Day Vacuum brazed core drill bit

Contact Now

Diamond Drilling Tools for Limestone Granite Marble Rock Drilling Hole Saw Grinding

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Vacuum Brazed Diamond Core Drill Bit	Keywords:	Diamond Drilling Tools
Application:	Drilling	Material:	Diamond + Metal Powder
Usage:	Dry Or Wet Use	Advantage:	High Efficiency
Grade:	A-Grade	Color:	Golden
Shape:	Turbo, Continuous, Segmented, Arix Etc.	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

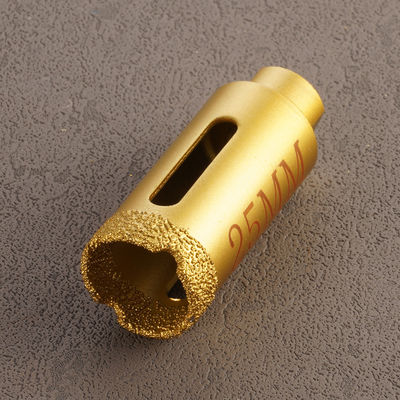

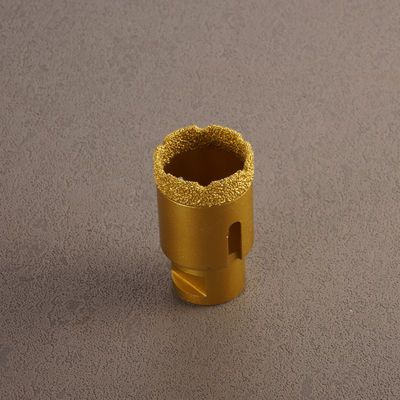

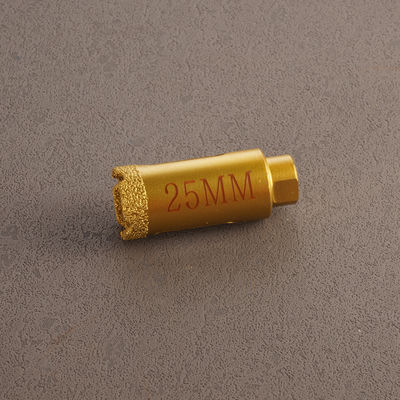

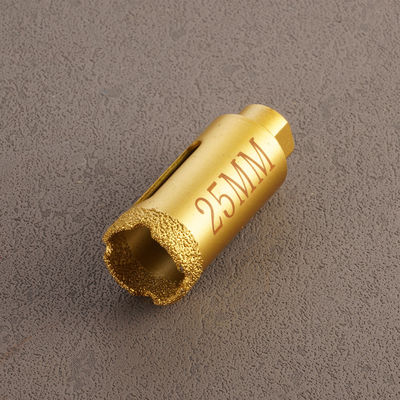

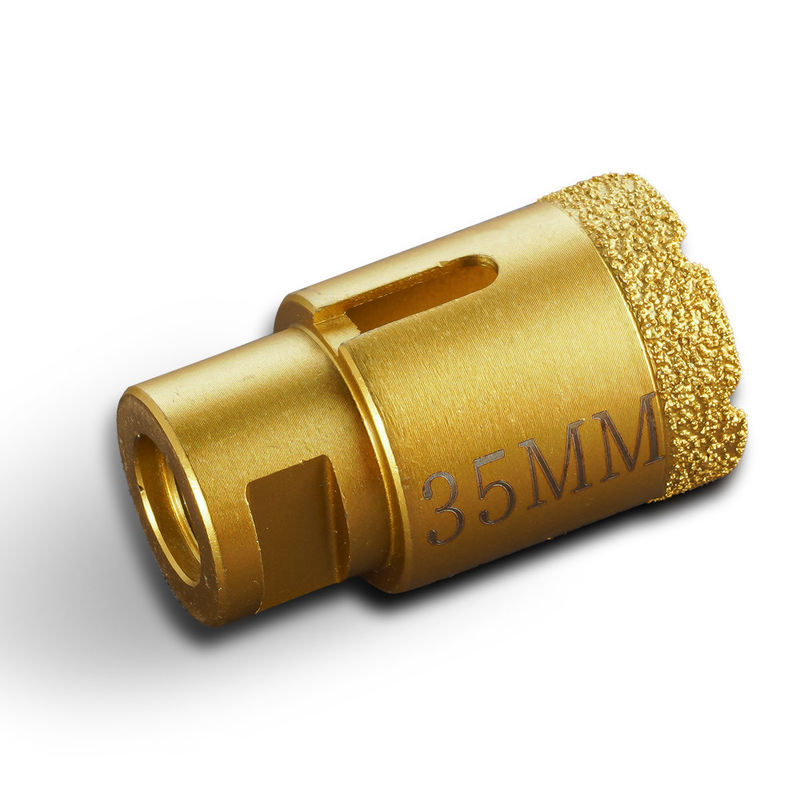

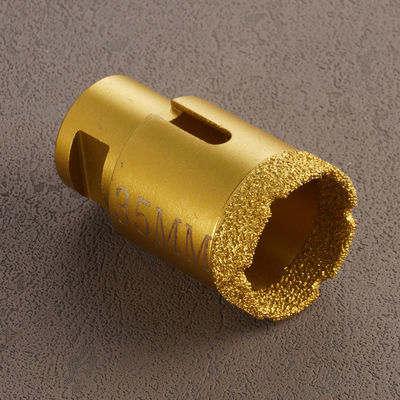

Vacuum Brazed Diamond Drill Bit

Diamond dry drill bit is made of high-quality diamond and adopts vacuum brazing to provide more efficient performance than traditional cemented carbide. It can be used for drilling ceramic tiles, glass, marble and other materials.

Product Features:
1. High concentration of exposed diamond ensures long life and fast drilling;
2. Suitable for drilling reinforced concrete, natural stones, bricks, blocks & rock.
Product Specifications:

Diameter (Inch/mm)	Segment Height(mm)	Grit Size(#)	Connection
1/4"/6.3	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3/8"/9.5	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1/2"/12.7	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
5/8"/15.9	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3/4"/19.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1"/25.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/8"/29.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/4"/32.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-3/8"/35.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/2"/38.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-5/8"/41.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-3/4"/45.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2"/51.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-1/4"/57.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-1/2"/63.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-3/4"/70.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3"/76.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3-1/2"/90.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
4"/100	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
4-4/5"/120	8.0-10.0	35/50/60	shank/M14/5-8"-11/G1/2"

Other specifications are available upon request.
