Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry

Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry
Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry

Large Image :  Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Certification: TUV
Model Number: Vacuum brazed diamond tools
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $5.80/pieces 10-99 pieces
Packaging Details: Carton and wooden box
Supply Ability: 800 Piece/Pieces per Day Vacuum brazed core drill bit
Contact Now

Diamond Core Drill Bit for Hard Stone Tile Marble Granite Rock Drilling Tools Dry

Description
Warranty: None Customized Support: OEM, ODM, OBM
Product Name: Vacuum Brazed Diamond Core Drill Bit Keywords: Diamond Drilling Tools
Application: Drilling Material: Diamond + Metal Powder
Usage: Dry Or Wet Use Advantage: High Efficiency
Grade: A-Grade Color: Golden
Shape: Turbo, Continuous, Segmented, Arix Etc. Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

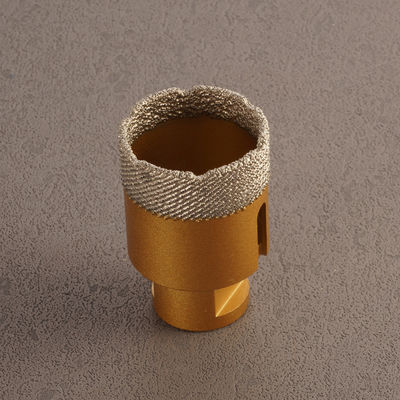

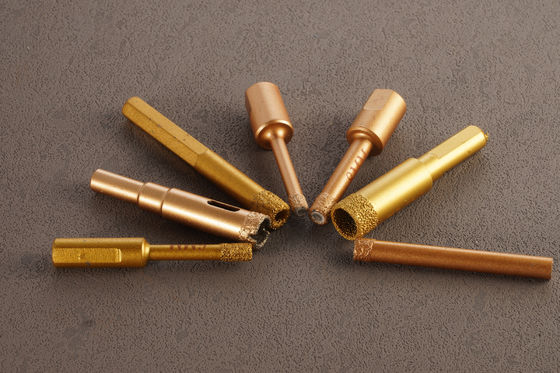

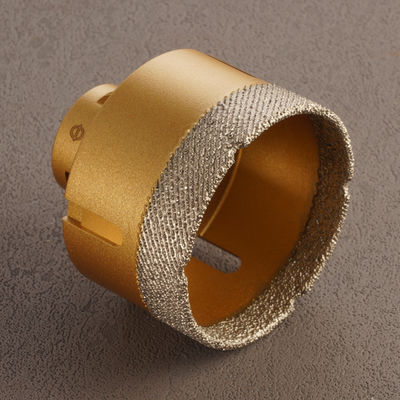

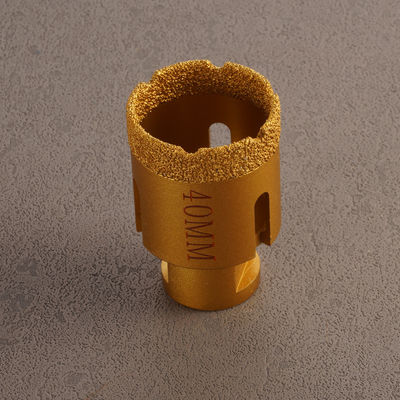

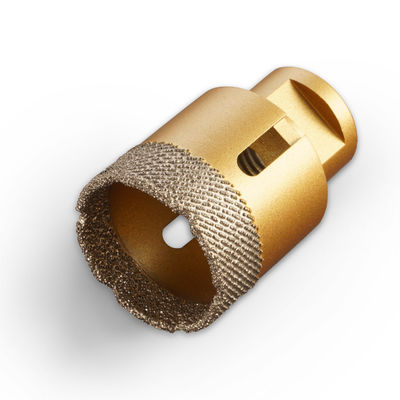

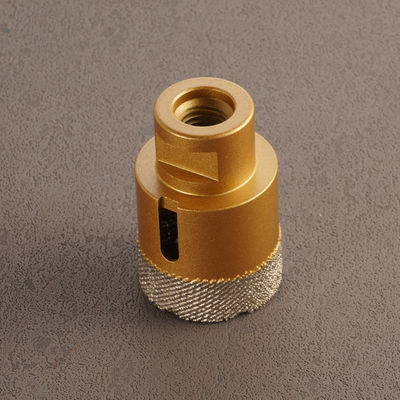

Vacuum Brazed Diamond Drill Bit

Diamond dry drill bit is made of high-quality diamond and adopts vacuum brazing to provide more efficient performance than traditional cemented carbide. It can be used for drilling ceramic tiles, glass, marble and other materials.



Product Features:
1. High concentration of exposed diamond ensures long life and fast drilling;
2. Suitable for drilling reinforced concrete, natural stones, bricks, blocks & rock.
Product Specifications:

Diameter (Inch/mm)

Segment Height(mm)

Grit Size(#)

Connection

1/4"/6.3

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

3/8"/9.5

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1/2"/12.7

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

5/8"/15.9

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

3/4"/19.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1"/25.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-1/8"/29.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-1/4"/32.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-3/8"/35.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-1/2"/38.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-5/8"/41.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

1-3/4"/45.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

2"/51.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

2-1/4"/57.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

2-1/2"/63.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

2-3/4"/70.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

3"/76.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

3-1/2"/90.0

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

4"/100

8.0-10.0

35/50/60

shank/M14/5-8"-11/G/1/2"

4-4/5"/120

8.0-10.0

35/50/60

shank/M14/5-8"-11/G1/2"

Other specifications are available upon request.
