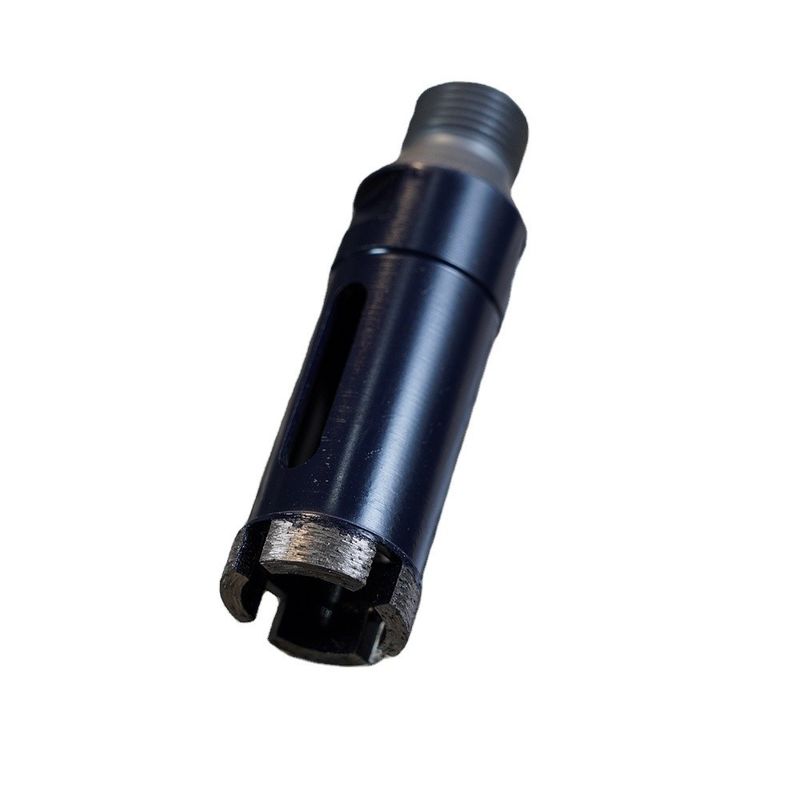

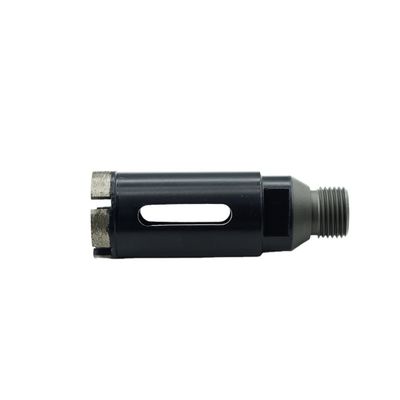

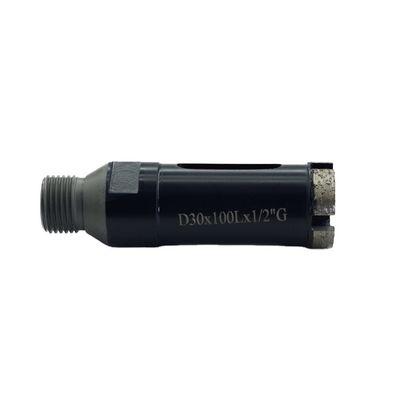

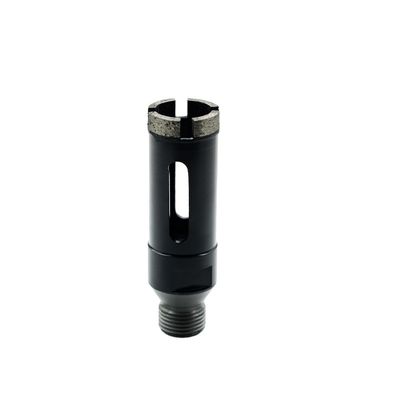

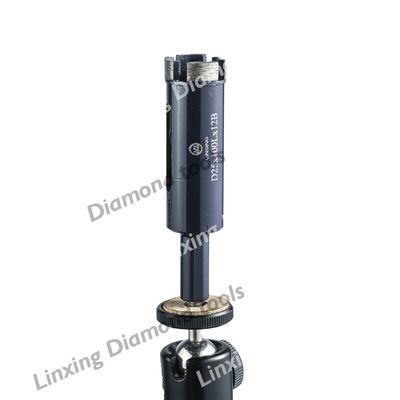

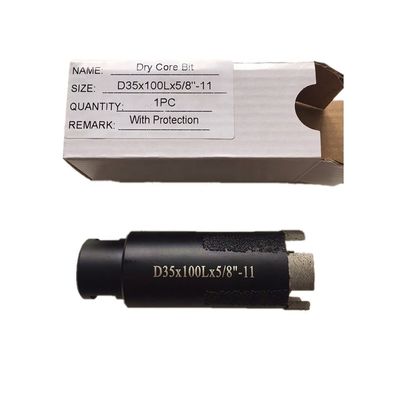

30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit

Large Image : 30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Diamond Core Bit

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$11.00/pieces >=10 pieces
Packaging Details:	inner box for one core bit, outer box
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit

Description

Customized Support:	OEM, ODM, OBM	Application:	Marble Drilling
Feature:	Sharpness	MOQ:	5 Pcs
Packing:	Carton Box	Color:	Black, Red, Etc
Size:	30mm	Length:	100mm
Material:	Diamond + Metal Powder	Machine:	Drilling Machine
Service:	Customized Service	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Product Description

Diamond core drill bits use super grade diamond, with high drilling efficiency They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.

Product feature:

1. High efficiency, long life, and no breaking of segments.

2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11.

3. Suitable for wet or dry use.

Product specification:

Diameter(mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed(mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit 0

30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit 10

30mm Diameter Marble Stone Diamond Drilling Tool with 100mm Length Segmented Drill Bit 11
