OBM Support D32 Vacuum Brazed Drill Bits for Customized Applications

Large Image : OBM Support D32 Vacuum Brazed Drill Bits for Customized Applications

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	M14; 5/8"-11

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$8.50/pieces 10-19 pieces
Packaging Details:	carton
Supply Ability:	100000 Piece/Pieces per Day

Contact Now

OBM Support D32 Vacuum Brazed Drill Bits for Customized Applications

Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM
Type:	Core Drill Bit	Use:	Metal Drilling
Working Length (mm):	D60mm, D100mm	Finish:	Black Oxide, ZINC, Plain
Application:	Granite, Marble, Engineered Stone, Concrete, Brick	Size:	D32, D35
Advantage:	Sharp, Durable	Core Bit Thread:	11/4"-7,M14,M16,5/8"-11
Working Length:	70,120,160,370,450mm,other Length	Machine:	Drilling Machine
Transport Package:	Box, Carton	Feature:	Vacuum Brazed Segment With 2 Diamond Side
Shank Type:	M14 Drill Bit	Port:	Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

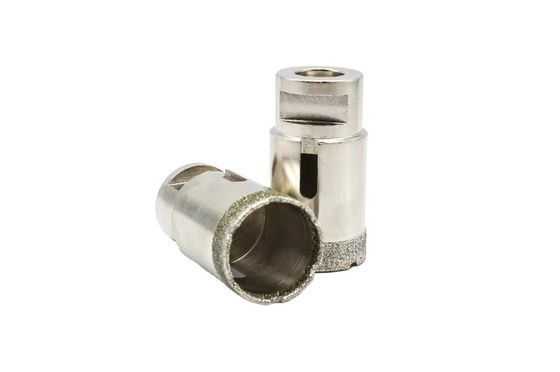

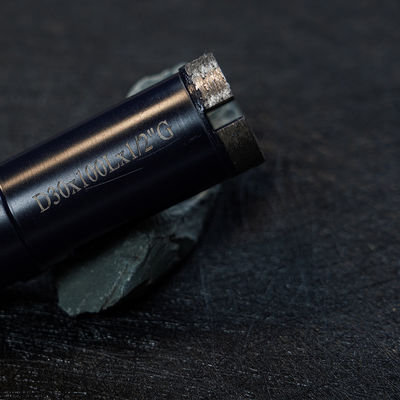

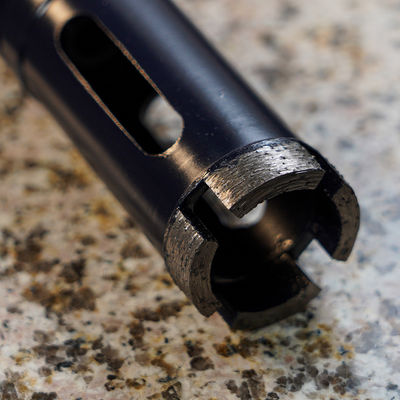

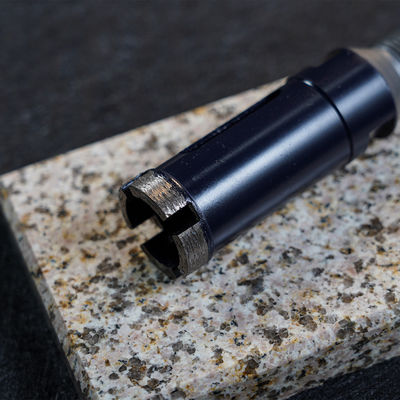

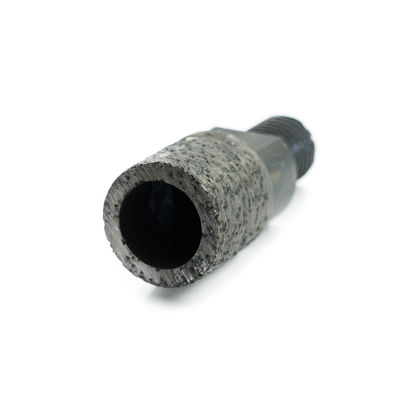

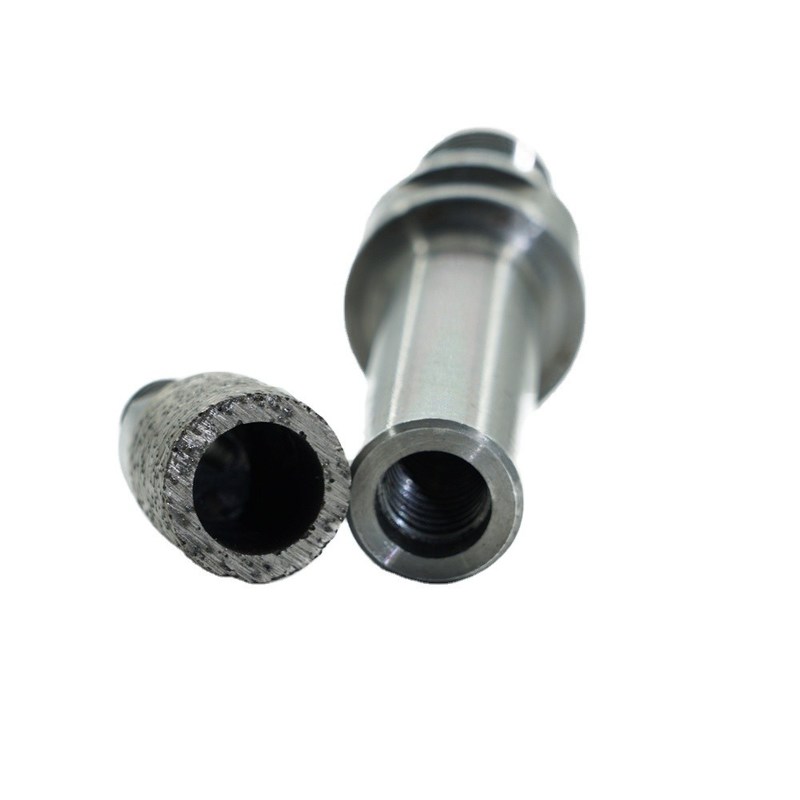

Vacuum Brazed Diamond Drill Bit

Diamond dry drill bit is made of high-quality diamond and adopts vacuum brazing to provide more efficient performance than traditional cemented carbide It can be used for drilling ceramic tiles, glass, marble and other materials.

Product feature:
1. High concentration of exposed diamond ensures long life and fast drilling.
2. Suitable for drilling reinforced concrete, natural stones, bricks, blocks & rock.

Product specification:

Diameter (Inch/mm)	Segment Height(mm)	Grit Size(#)	Connection
1/4"/6.3	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3/8"/9.5	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1/2"/12.7	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
5/8"/15.9	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3/4"/19.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1"/25.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/8"/29.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/4"/32.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-3/8"/35.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-1/2"/38.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-5/8"/41.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
1-3/4"/45.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2"/51.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-1/4"/57.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-1/2"/63.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
2-3/4"/70.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3"/76.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
3-1/2"/90.0	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
4"/100	8.0-10.0	35/50/60	shank/M14/5-8"-11/G/1/2"
4-4/5"/120	8.0-10.0	35/50/60	shank/M14/5-8"-11/G1/2"

Other specifications are available upon request.
