Rock Drilling Made Easy LINSING 6-102MM Core Annular Drill Bit with Diamond Segments

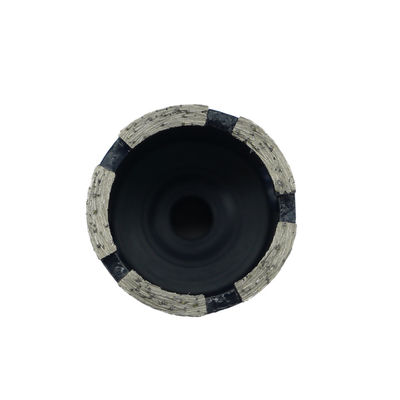

Large Image : Rock Drilling Made Easy LINSING 6-102MM Core Annular Drill Bit with Diamond Segments

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Certification:	Tuv
Model Number:	Segmented core drill bit

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$5.80/pieces 100-999 pieces
Packaging Details:	Plastic+Carton
Supply Ability:	10000 Piece/Pieces per Day Diamond core drill bit

Contact Now

Rock Drilling Made Easy LINSING 6-102MM Core Annular Drill Bit with Diamond Segments

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Type:	Core Drill Bit, PDC Bit, Sintered Core Drill Bit	Use:	Masonry Drilling
Finish:	Other, Black Oxide, ZINC, Plain	Product Name:	Diamond Core Drill Bit
Application:	Marble, Granite, Limestone Etc.	Material:	Diamond + Metal
Usage:	Wet Used	Shank:	5/8-11" Thread,M14 Etc.
Suitable For:	Rock, Marble, Granite, Concrete, Ceramic Etc.	Feature:	High Drilling Efficiency
Color:	Customized Color

Diamond Core Drill Bit

Diamond core drill bits use super grade diamond, with high drilling efficiency. They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.

Product Features:
1. High efficiency, long life and no breaking of segments;
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11;
3. Suitable for wet or dry use.

Product Specifications:

Diameter (mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed (mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

Other specifications are available upon request.
