35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base

Large Image : 35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING
Model Number:	Diamond Core Bit

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$10.00 - $19.00/pieces
Packaging Details:	inner box for one core bit, outer box
Supply Ability:	500 Piece/Pieces per Day

Contact Now

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base

Description

Warranty:	NONE	Customized Support:	OEM, ODM, OBM
Application:	Dekton And Porcelain Drilling	Feature:	Sharpness
MOQ:	5 Pcs	Packing:	Carton Box
Color:	Blue, Red, Black, Etc	Size:	35mm
Length:	60mm	Material:	Segment, Iron Powder, Steel Base
Machine:	Manual Angle Grinder	Service:	Customized Service

Vacuum Brazed Diamond Drill Bit
The diamond dry drill bit is made of high-quality diamond and adopts vacuum brazing to provide more efficient performance than traditional cemented carbide. It can be used for drilling ceramic tiles, glass, marble, and other materials.

Diamond core drill bits use super grade diamond, with high drilling efficiency They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.

Product feature:
1. High efficiency, long life, and no breaking of segments.
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11.
3. Suitable for wet or dry use.
Product specification:

Diameter(mm)	Usable Length(mm)	Suggested R.P.M	Feed Speed(mm/min)
19-22	47	3000-3500	70-90
25	60	3000-3500	70-90
30-32	60	3000-3500	70-90
35-40	60	2000-2800	60-80
45-50	60	2000-2800	50-60
55	60	1500-2000	40-60
60	60	1500-2000	40-60
65	60	1500-2000	40-60
70	60	1500-2000	40-60
75-85	60	1500-2000	40-60
90	60	1500-2000	40-60
95-100	60	1000-1500	25-45
125	60	1000-1500	25-45

Other specifications are available upon request.

Product Description

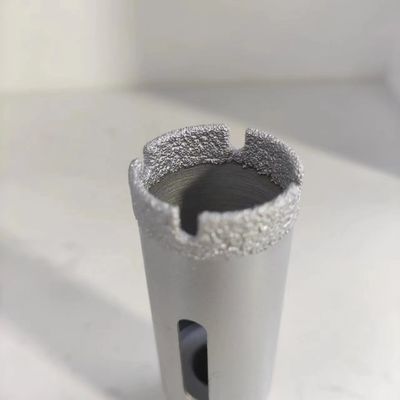

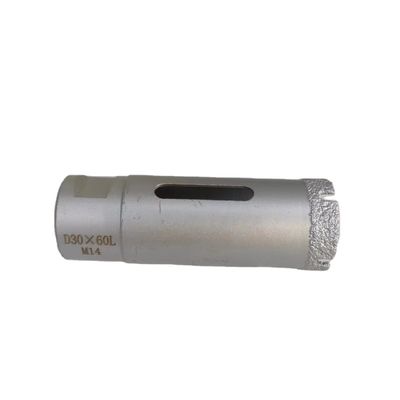

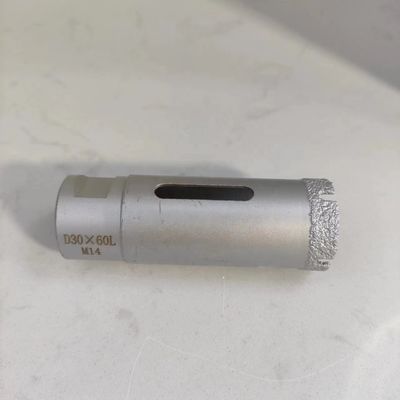

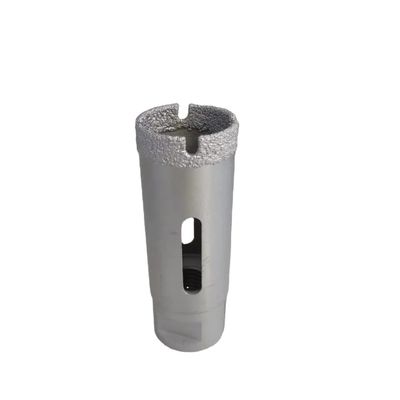

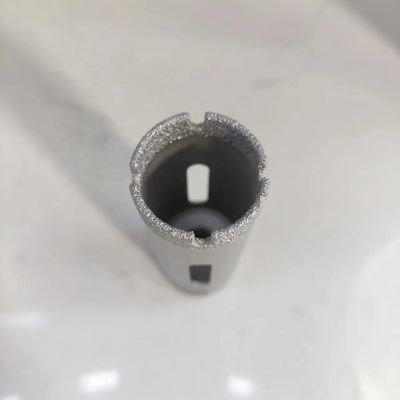

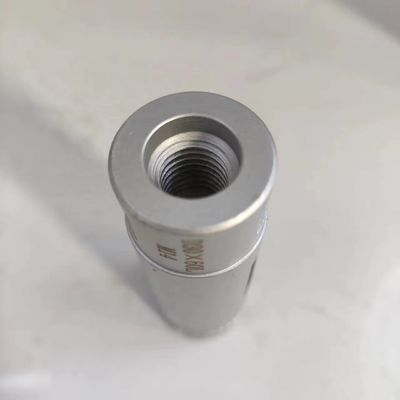

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base 0

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base 10

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base 11

Linxing products

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base 16

35mm M14 Diamond Bit for Dry Drilling Segmented Dekton Porcelain on Black Steel Base 18
