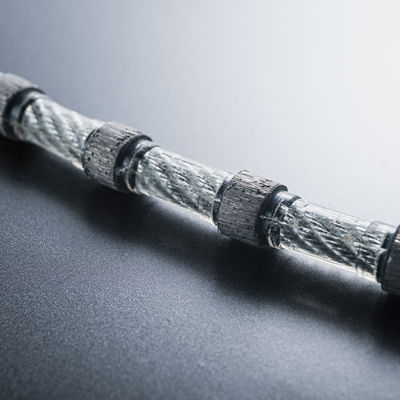

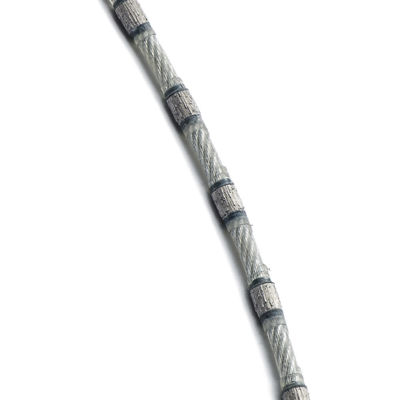

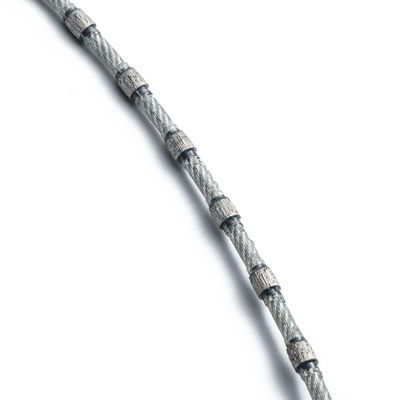

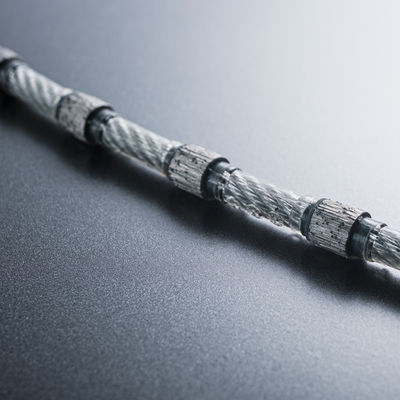

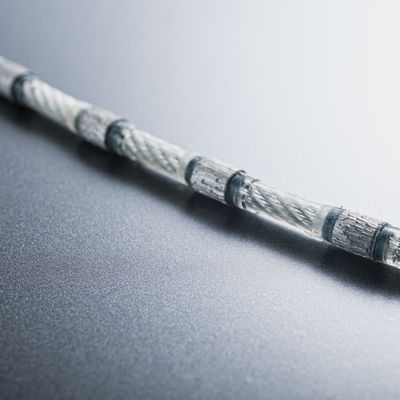

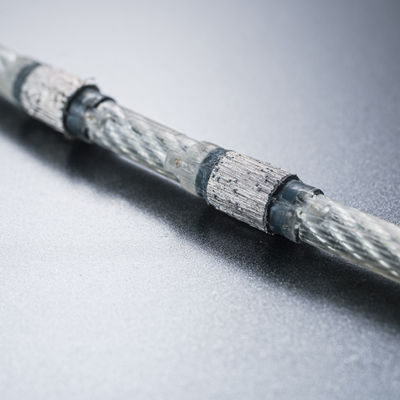

Plastic Dia 8.3mm 9.0mm Wire Rope Diamond Beads for Stone Profiling Cutting Trimming

Large Image : Plastic Dia 8.3mm 9.0mm Wire Rope Diamond Beads for Stone Profiling Cutting Trimming

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing
Model Number:	Stone Profiling Wire Saw

Payment & Shipping Terms:

Minimum Order Quantity:	10 meters
Price:	$29.80/meters 10-99 meters
Packaging Details:	waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability:	1000 Meter/Meters per Day Diamond wire saw for profiling

Contact Now

Plastic Dia 8.3mm 9.0mm Wire Rope Diamond Beads for Stone Profiling Cutting Trimming

Description

Warranty:	None	Customized Support:	OEM, ODM, OBM
Product Name:	Diamond Wire Saw For Profiling	Application:	Stone Cutting/Profiling
Material:	Plastic + Wire Rope + Diamond Beads	Usage:	Granite Marble And Other Stones.
Type:	Sintered Wire Saw	Advantage:	Fast Cutting And Long Lifespan
Color:	Customized Color	Grade:	A-Grade
Technology:	Hot Pressed Sintered	Machine:	CNC Wire Saw Machine
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Diamond Wire Saw For Stone Profiling

Profiling wire saws are mainly used to cut non-standard slab shapes, such as Roman columns of various shapes The special-shaped wire saw has low power consumption and low energy consumption, which can greatly improve the cutting efficiency and the accuracy of cutting special-shaped shapes is very high.

Product feature:
1. Good sharpness and long life, low noise and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind stone.
Product specification for granite/quartz:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D9.0	37	Plastic	Granite/ Quartz Profiling
D8.3	37	Plastic	Granite/ Quartz Profiling

Cutting Material	Line Speed(m/s)	Efficiency(m2/h)	Life(m2/m)
Class1-2	28-30	1.6-2.2	12-22
Class3-4	28-30	1.0-1.5	10-18
Class5	26-28	0.5-1.0	6-12

Product specification for marble/limestone:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D9.0	37	Plastic	Marble/ Limestone Profiling

Cutting Material	Line Speed(m/s)	Efficiency(m2/h)	Life(m2/m)
Class1-2	30-40	2.0-3.0	20-50
Class3-4	28-31	1.5-2.0	14-35
Class5	26-30	1.0-1.5	8-20

Other specifications are available upon request
