16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting

16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting
16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting 16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting 16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting 16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting 16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting 16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting

Large Image :  16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Certification: CE.ISO9001:2008, TUV
Model Number: Granite Cutting Saw Blades
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $53.00/pieces 10-99 pieces
Packaging Details: The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability: 1000 Piece/Pieces per Day Dia.250-450 diamond circular saw blade
Contact Now

16 Inch Retract Skirt Diamond Circular Saw Blade for Granite Stone Quartz Cutting

Description
Warranty: None Blade Thickness: 0.014in, 0.032in, 0.05in, 0.02in, 0.018in, 0.025in, 0.012in
Blade Width: 1 1/2IN, 5/8in, 3/8in, 1/8IN, 1/4in, 3/16in, Other Arbor Size: 7/8IN, 10mm, 5/8in, No
Teeth Per Inch: No Teeths: No
Blade Length: No Blade Diameter: 250-500mm
Edge Height: 0.315in(8mm) Process Type: HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS, Grind
Customized Support: OEM, ODM, OBM Finishing: Ti-coated
Size: Dia:250-3500mm Grade: Industrial
Product Name: Diamond Saw Cutting Blade Application: For Granite,Marble,Sandstone,Limestone Quarrying
Material: Diamond Powder+65Mn Steel Usage: Wet
Feature: High Speed.Straight Smooth Edge Quality: Top Quality
Machine: Bridge Cutting Machine Teeth Type: Short-T, R, M And Arc Shape
Arbor Hole Size: 16/22.23/25.4/50/100mm Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

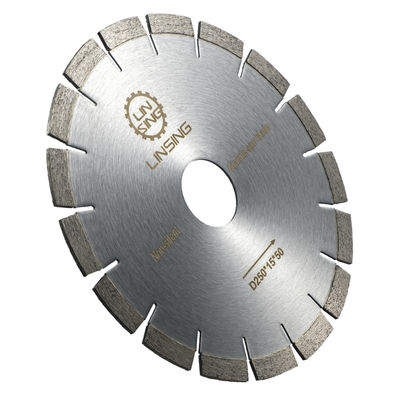

Diamond Saw Blade For Granite

Linsing granite cutting saw blade is a diamond tool for cutting granite, it has the characteristics of high sharpness, good wear resistance and long lifespan.

Products features:
1. Good sharpness, high efficiency and long lifespan.
2. Smooth cutting without chipping.
3. Stable cutting and high cost-effective.
4. Silent and non-silent blade are available.
Product specification:

Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15,20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15,20)

24

Φ16”/400

2.6

40x3.6x10(12,15,20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15,20)

32

Φ20”/500

3.0/3.2

40x4x10(12,15,20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15,20)

42

Φ28”/700

4

40x5.2x10(12,15,20)

50

Φ32”/800

4.5

40x6x10(12,15,20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
