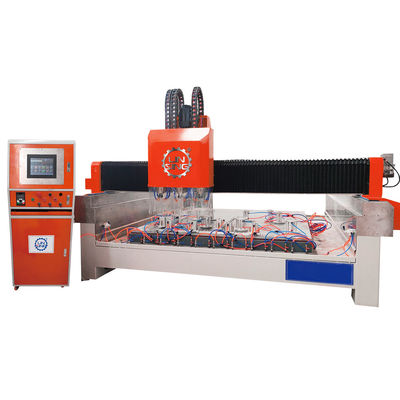

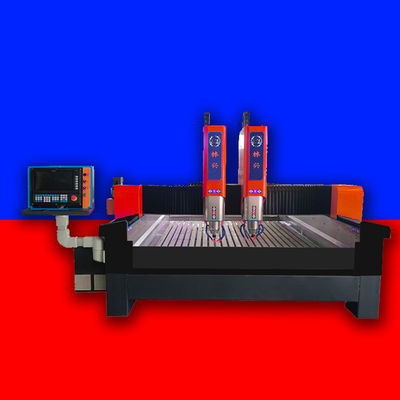

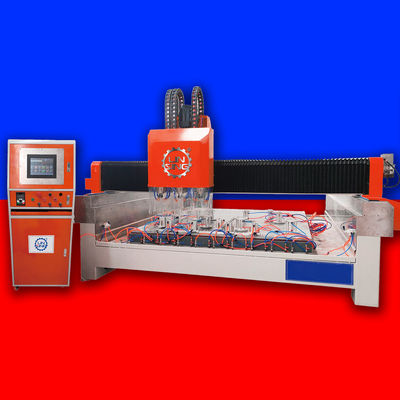

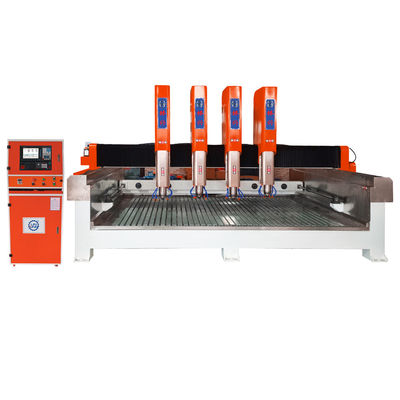

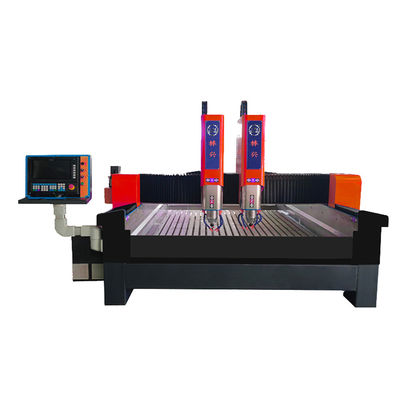

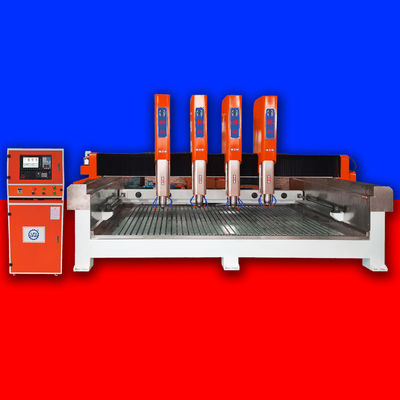

CNC Stone Engraving Machine
Stone engraving machine mainly for hard materials such as marble, granite, artificial stone, ceramic tiles, glass, etc, They can be engraved by such Machine to produce arts and crafts, pictures, etc. Besides, Heavy duty stone engraving machine can be also used to work on wood, advertising materials.
Product Features:
1. The whole machine is of steel structure, tempered and aging treatment, rigid and not easy to deform, and the bearing capacity of the machine can reach more than 4 tons.
2. Adopt imported linear double row guide rail, with large bearing capacity, stable operation and high precision.
3. Famous brand servo motor and reducer are adopted, with high speed, high precision and good stability.
4. In case of operation, stop and fault alarm, LED lights flash synchronously.
5. Constant power spindle motor, large cutting force, high efficiency.
6. CNC digital control, with power-off memory function, with knife breaking continued carving function.
Product Application:
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. Wooden products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Product Specification:
| Model | Unit | LXDK-1325 | LXDK-1825 | LXDK-2125 |
| Max. No of Head | mm | 1 | 2 | 4 |
| Controller | | NC studio | NC studio | NC studio |
| Working Area | mm | 1300*2500 | 1800*2500 | 3000*2000 |
| Feeding height | mm | 430 | 430 | 430 |
| Processing speed | m/min | 10-15 | 10-15 | 10-15 |
| Rotary rate | rpm/min | 6000~24000 | 6000-24000 | 6000-24000 |
| Main motor power | kw | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 |
| Positioning precision | mm | ± 0.05mm | ± 0.05mm | ± 0.05mm |
| Overall dimension(L*W*H) | m | 2.3*2.5*1.3 | 3.5*2.3*2 | 4.3*3.2*2.1 |
| Total weight | kg | 1000 | 1500 | 2400 |
