Diamond Wire Machine for Granite Marble Quarry Mining Main Motor Power 75kw-8p 100HP-8P

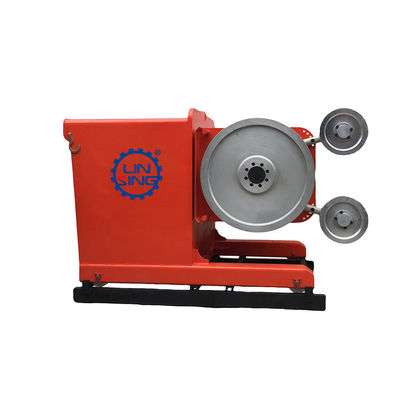

Large Image : Diamond Wire Machine for Granite Marble Quarry Mining Main Motor Power 75kw-8p 100HP-8P

Product Details:

Place of Origin:	shangrao
Brand Name:	Linsing

Payment & Shipping Terms:

Price:	$20,000.00/pieces 1-1 pieces
Packaging Details:	According to normal packing
Supply Ability:	50 Unit/Units per Month

Contact Now

Diamond Wire Machine for Granite Marble Quarry Mining Main Motor Power 75kw-8p 100HP-8P

Description

Applicable Industries:	Stone Processing Machine	Showroom Location:	None
Condition:	New	Type:	Quarry Wire Saw
Use:	Granite Marble Stone	Voltage:	380v
Power:	75kw	Dimension(LWH):	255016801570
Weight:	4300 Kg	Warranty:	Warranty
Key Selling Points:	High-accuracy	Cutting Thickness (max):	Other
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Motor, Bearing, Engine, PLC, Converter, Simon Button, OMRON RELAY	Model:	SCT-75G-8P
Main Motor Power:	75kw-8p (100HP-8P)	Flywheel Diameter:	800MM
Wire Saw Speed:	0-30m/s	Max Wire Saw Length:	20-120m
Walking Motor Power:	1.5kw (2hp)	Lateral Moving Distance:	520mm
Max Lateral Cutting Distance:	2050mm	Rotation Angle (electirc)::	360degree
Walking Speed Of Machine:	0-90m/h	Port:	China All Sea Port

Product Description

SCT-WIRE SAW MACHINE FOR STONE QUARRY

1) 8 poles motor is enough powerful for cutting more hardness granite.
2) Being controlled by two sets of inverters and applying constant tension control
principle, the moving speed of the machine can be adjusted automatically
according to the changes of the cutting force to make sure the diamond wire saw
be in the best cutting condition all the time.
3) The machine is without phase request. It doesn’t need to change or distinguish the
power phase. The machine has the following protection functions: diamond wire
broken protection, over-loading protection, open-phase protection, terminal limit,
and so on.
4) The real-time parameters are displayed on the control platform, such as the set
current of the main motor, the current and the rotation speed of the main motor,
etc. It makes the operation and adjustment of the machine more convenient.
5) The machine can be operated manually and automatically. The manual and
automatic functions can be shifted from each other. Under the automatic function,
the machine can be unattended operated, and one worker is able to operate
multiple machines.

Model	SCT-75G-8P
Maine Motor Power	75KW-8P (100HP-8P)
WIRE SAW SPEED	0-30M/S
Walking Speed of Machine	0-90m/h
Allowed working temperature	E-15+40 degrees celsius
Net Weight	4.3T

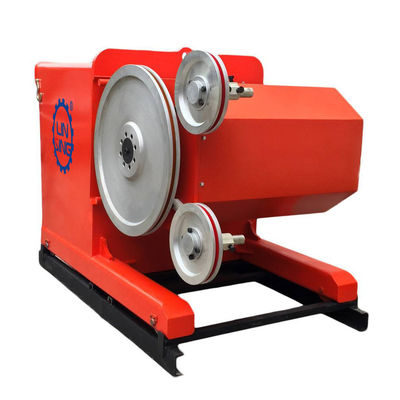

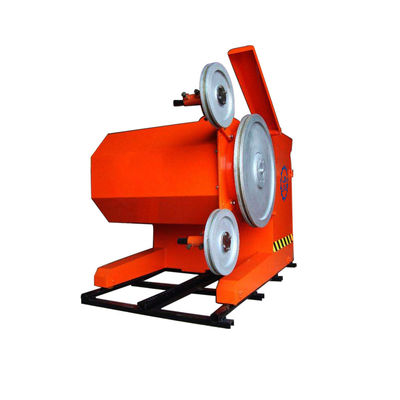

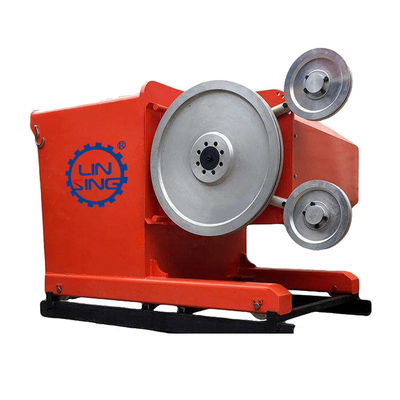

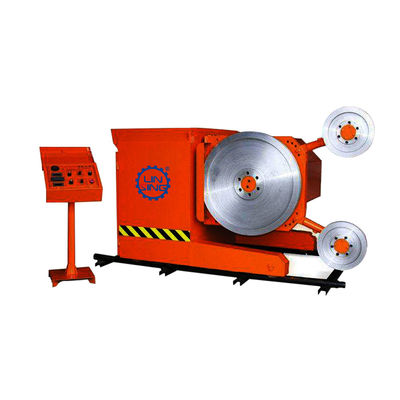

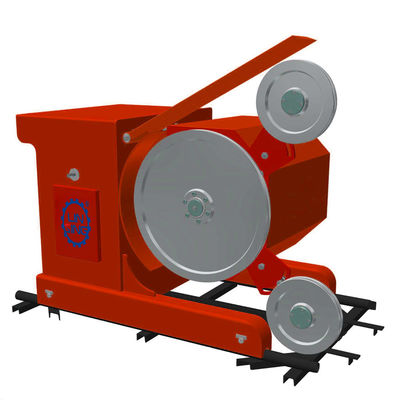

Detailed Images

Size Information

Packing&Shipping

Company Introduction

LINXING factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D,the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.

Our Services

Quality makes achievements, service creats future!

Exhibition

FAQ

Q1:Are you a factory or trading company?

A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.

Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.

Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..

Q4:Do you offer free sample?

Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability of application per market.
