Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw

Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw
Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw

Large Image :  Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $25,000.00/sets 1-4 sets
Contact Now

Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw

Description
Applicable Industries: Manufacturing Plant, Retail, Construction Works , Energy & Mining Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangla
Condition: New Type: Wire Saw Machine
Use: For Stone Quarrying Production Capacity: High Speed
Voltage: 380V/50Hz Power: 55KW
Dimension(L*W*H): 2400*1600*1450mm Weight: 3300 Kg
Warranty: 1 Year Key Selling Points: High-accuracy
Cutting Thickness (max): 1700mm Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year Core Components: Motor, Engine
Product Name: Wire Saw Machine After-sales Service Provided: Online Support
Application: Quarrying Usage: Stone Cutting
Control System: PLC(imported Brand) Color: Red Or Customized
Feature: High Cutting Efficiency Motor: 55KW
Wire Saw Speed: 0-40m/s Rotation Angle(electric): 360°

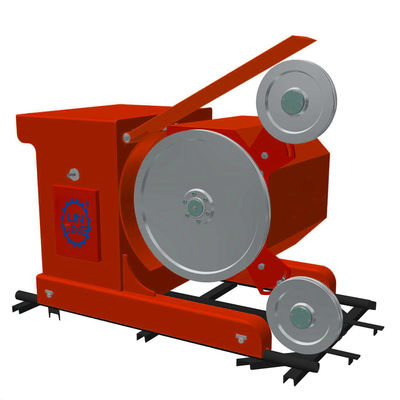

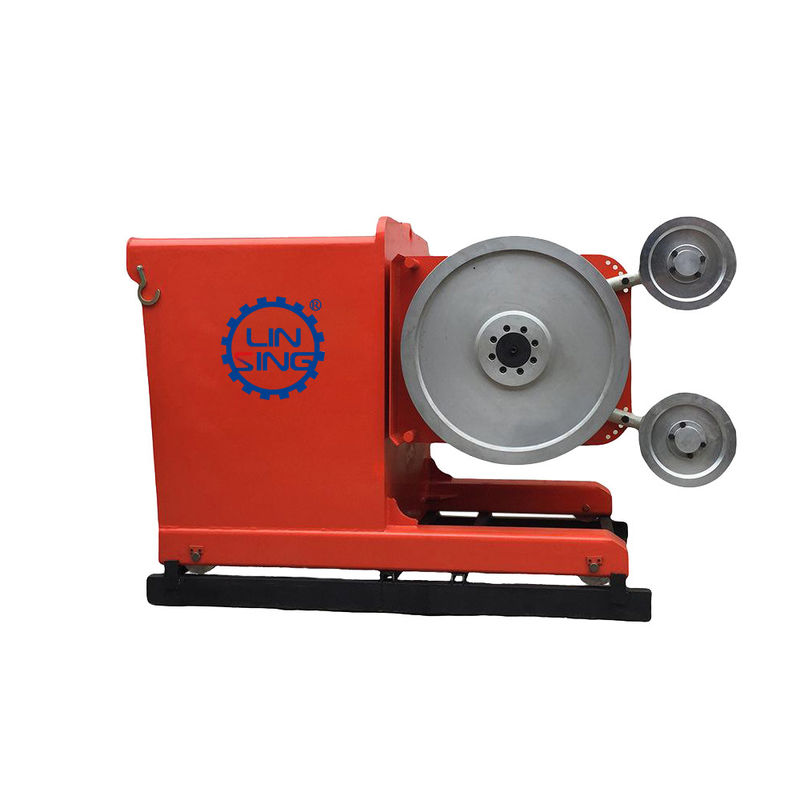

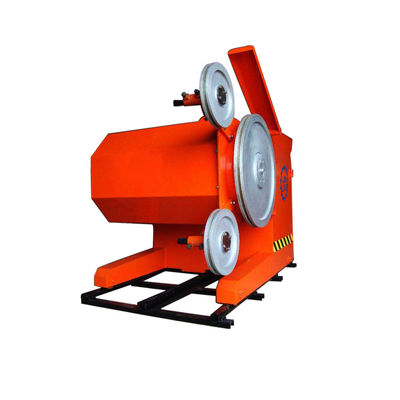

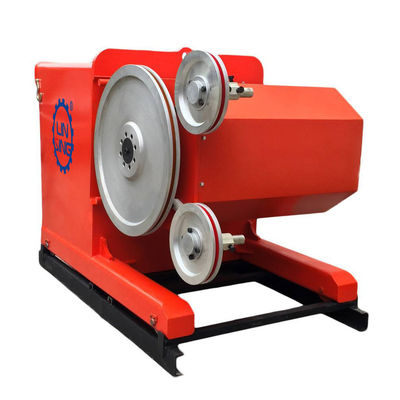

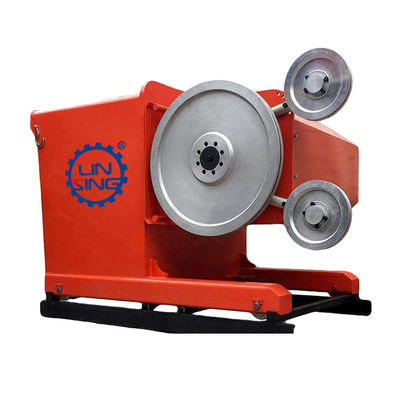

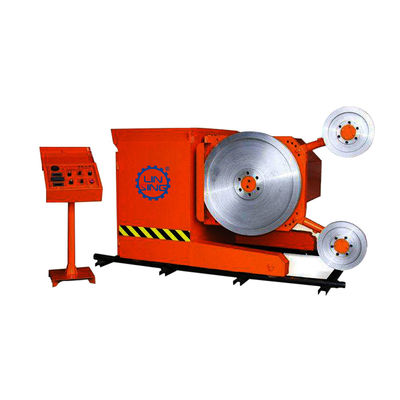

Wire Saw Machine For Quarrying&Mining

Diamond wire saw can be used on all types of marble, granite and stone, with maximum productivity and a diamond wire durability at maximum cutting speed. All controls are fully automatic and do not require the constant presence of the operator.

Product Features:
1. The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble;
2.  Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes;
3.  The control cabinet is placed separated within a side door. It is easy to do maintenance work;
4.  Double dust-proof and waterproof structure is used to protect the main motor. The guide poles and screw rod are isolated with dust and water by the flexible lags. Greatly extend the life of the machines;
5.  Easily regulate the position and angle of driving flywheel by motors;
6.  Display the real time of the parameters, such as the main motor’s current, flywheel’s speed;
7.  The machine can be operated manually or automatically.
Product Specification:

Model SKSJ-45 SKSJ-55 SKSJ-75
Power of main motor 45 55 75
Length of wire 20-100 20-120 20-150
Diameter of bead Φ11.5 Φ11.5 Φ11.5
Linear velocity 0-30 0-30 0-50
Lead rail moving distance 6 6 6
Diameter of driving wheel Φ700-900 Φ700-900 Φ700-900
Water consumption  3 4 5
Working temperature -55 -55 -55
Power head rotary 0-360 0-360 0-360
Dimension(L×W×H) 120x120x140 120x120x140 120x120x140
Weight 1400 1500 1600
Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 0Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 1Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 2Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 3Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 4Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 5Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 6Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 7Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 8Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 9Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 10Max Cutting Thickness 1700mm Stone Cutting Machine for Durable Granite Wire Saw 11
