Professional Wire Saw Machine for Quarrying Granite Marble Basalt Cutting 35KW/55KW/75KW

Large Image : Professional Wire Saw Machine for Quarrying Granite Marble Basalt Cutting 35KW/55KW/75KW

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing

Payment & Shipping Terms:

Price:	$25,000.00/sets 1-4 sets
Packaging Details:	Plastic film, wooden case, etc
Supply Ability:	20 Set/Sets per Month Stone block cuting machine

Contact Now

Professional Wire Saw Machine for Quarrying Granite Marble Basalt Cutting 35KW/55KW/75KW

Description

Applicable Industries:	Manufacturing Plant, Retail, Construction Works , Energy & Mining	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangla
Condition:	New	Type:	Wire Saw Machine
Use:	For Stone Quarrying	Production Capacity:	High Speed
Voltage:	380V/50Hz	Power:	55KW
Dimension(LWH):	240016001450mm	Weight:	3300 Kg
Warranty:	1 Year	Key Selling Points:	High-accuracy
Cutting Thickness (max):	1700mm	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Provided	Marketing Type:	Hot Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor, Engine
Product Name:	Wire Saw Machine	After-sales Service Provided:	Online Support
Application:	Quarrying	Usage:	Stone Cutting
Control System:	PLC(imported Brand)	Color:	Red Or Customized
Feature:	High Cutting Efficiency	Motor:	55KW
Wire Saw Speed:	0-40m/s	Rotation Angle(electric):	360°
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

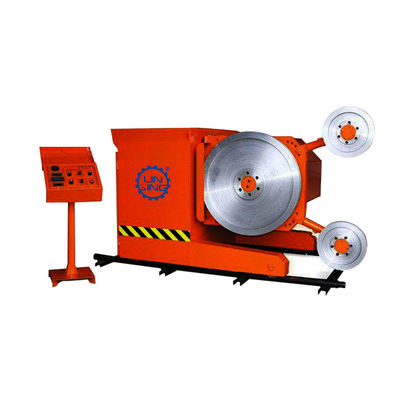

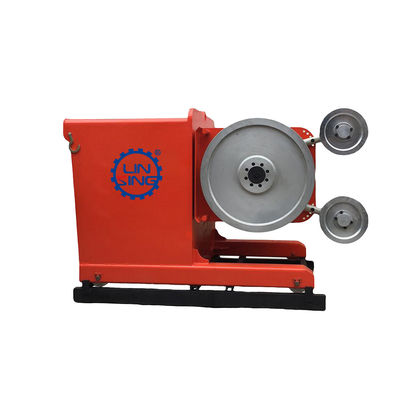

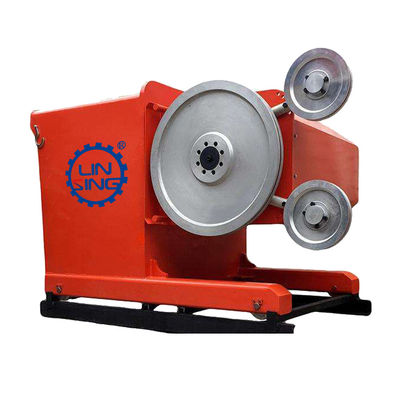

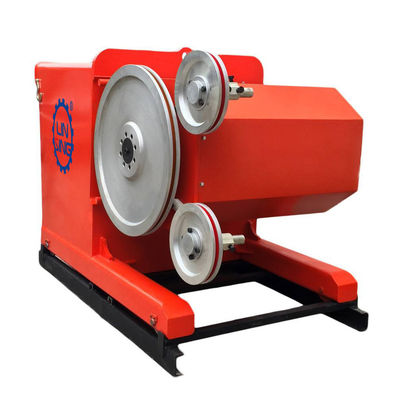

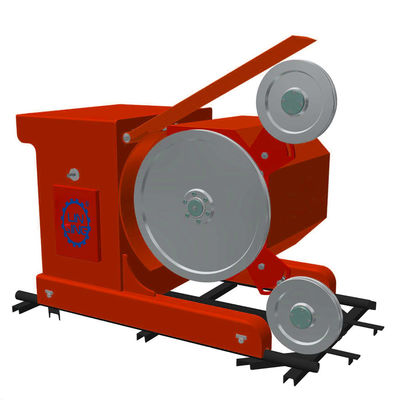

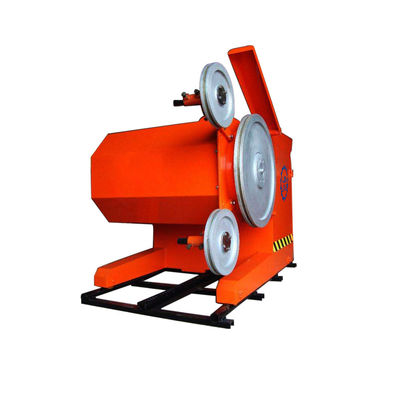

Wire Saw Machine For Quarrying&Mining

Diamond wire saw can be used on all types of marble, granite and stone, with maximum productivity and a diamond wire durability at maximum cutting speed. All controls are fully automatic and do not require the constant presence of the operator.

Product Features:
1. The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble;
2. Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes;
3. The control cabinet is placed separated within a side door. It is easy to do maintenance work;
4. Double dust-proof and waterproof structure is used to protect the main motor. The guide poles and screw rod are isolated with dust and water by the flexible lags. Greatly extend the life of the machines;
5. Easily regulate the position and angle of driving flywheel by motors;
6. Display the real time of the parameters, such as the main motor’s current, flywheel’s speed;
7. The machine can be operated manually or automatically.
Product Specification:

Model	SKSJ-45	SKSJ-55	SKSJ-75
Power of main motor	45	55	75
Length of wire	20-100	20-120	20-150
Diameter of bead	Φ11.5	Φ11.5	Φ11.5
Linear velocity	0-30	0-30	0-50
Lead rail moving distance	6	6	6
Diameter of driving wheel	Φ700-900	Φ700-900	Φ700-900
Water consumption	3	4	5
Working temperature	-55	-55	-55
Power head rotary	0-360	0-360	0-360
Dimension(L×W×H)	120x120x140	120x120x140	120x120x140
Weight	1400	1500	1600
