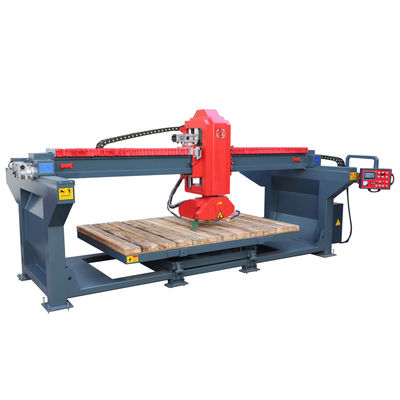

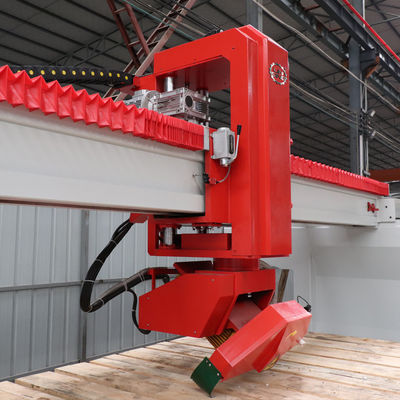

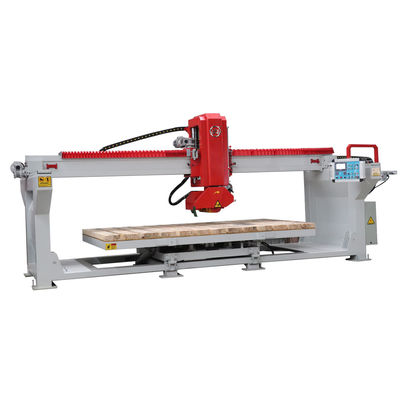

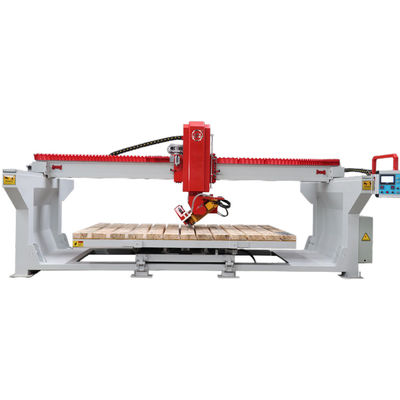

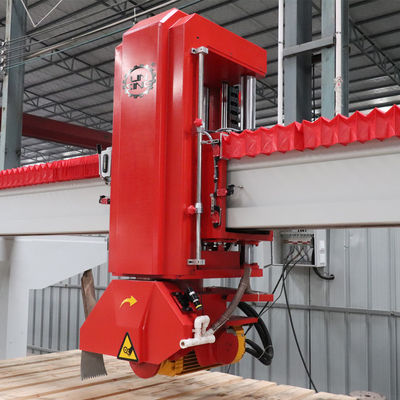

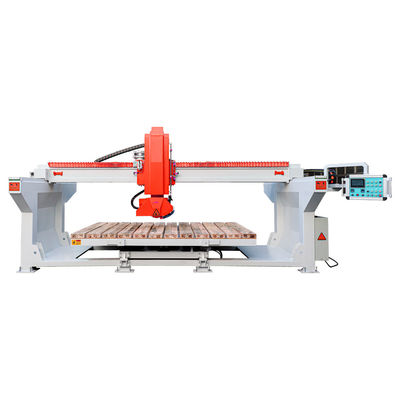

Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm

Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm
Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm

Large Image :  Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $18,888.00/pieces 1-4 pieces
Packaging Details: The inner packaging is plastic film, the outer packaging is foam paper, and the accessories are packed in wooden cases.
Supply Ability: 25 Set/Sets per Month Mono-block bridge saw machine
Contact Now

Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm

Description
Applicable Industries: Other, Stone Insdustry Showroom Location: None
Condition: New Type: Stone Cutting Machine
Use: Both Granite And Marble Production Capacity: High Speed
Voltage: 380V/50Hz Power: 15/18.5KW
Dimension(L*W*H): 5800*3000*3000mm Weight: 6500 Kg
Warranty: 1 Year Key Selling Points: High Productivity
Cutting Thickness (max): 180mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name: Mono Block Bridge Saw Cutter Keyword: Multi-blade Stone Cutter Machine
Application: Stone Marble Granite Quartz Sandstone After-sales Service Provided: Video Technical Support
Usage: Tile Slabs Control System: PLC(imported Brand)
Color: Customer's Request Feature: Easy Operation
Blade Diameter: 300-600mm Max Cutting Length: 3200mm
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Product description:
Mono bridge cutting machine is used for stone slab cutting. In terms of structure, Mono structure is different with the ordinary infrared bridge cutting machine, which has stonger steel frame,better stability, it has better performance with high cutting efficiency for cutting hard stone (granite, basalt, marmoglass and nanoglass, etc.).

Product feature:

1, Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support.
2, Automatic repeat cuts. Auto cycle &Manual cycle.
3, Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation disk was included.
4, Applicable industry: rock slab application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

 Product specifications:

Product model LXMBM-500 LXMBM-600
Max.blade diameter mm 500 600
Max.cutting size(L*W*H) mm 3200×2000×180
Cutting head rotating degree n° 0-90° 0-90°
Table tilting degree n° 0-85° 0-85°
Main motor power kw 15 18.5
Water consumption m3/h 4 5
Overall dimensions(L*W*H) mm 5800×3200×2900 5800×3000×3000
Approximate weight kg 6000 6500



Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 0Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 1Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 2Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 3Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 4Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 5Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 6Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 7Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 8Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 9Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 10Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 11Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 12Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 13Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 14Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 15Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 16Mono-block Bridge Saw For Stone Marble Granite Quartz Sandstone Cutting 5800*3000*3000mm 17
