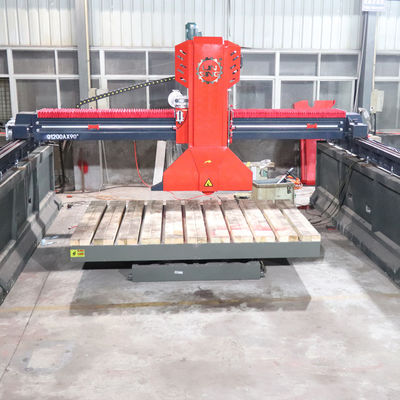

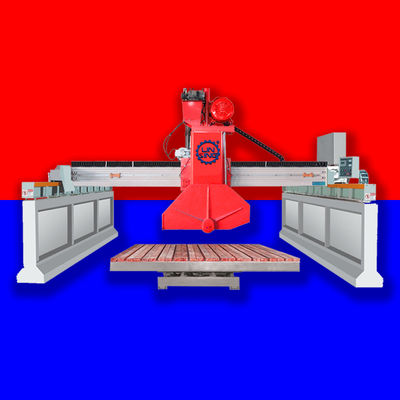

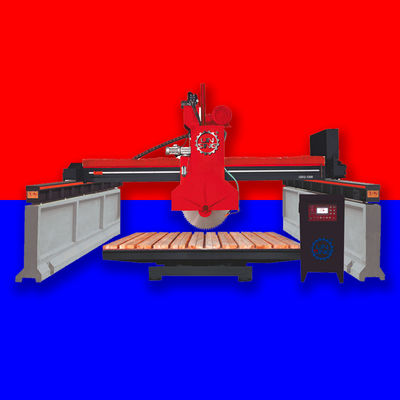

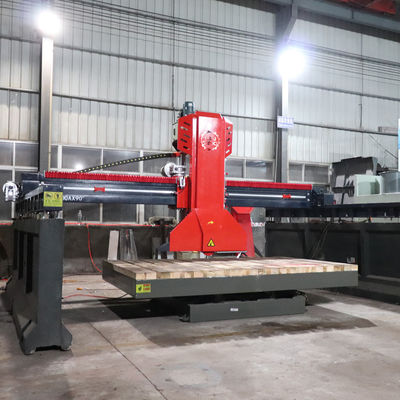

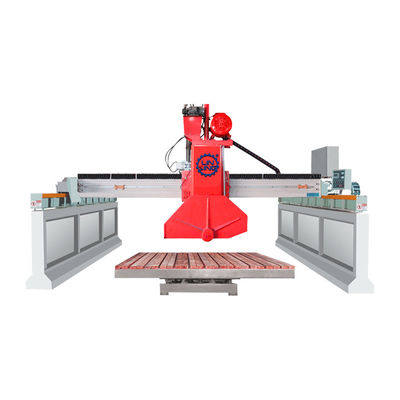

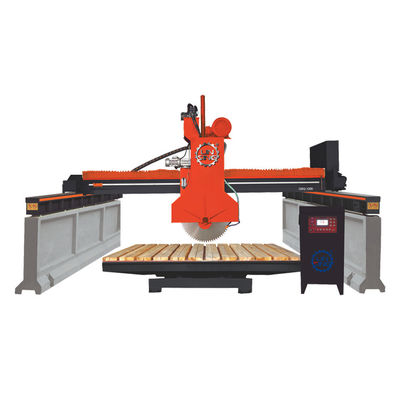

High Cutting Efficiency Disc Rock Cut Circular Bridge Saw for Granite Marble Paving Stone

Large Image : High Cutting Efficiency Disc Rock Cut Circular Bridge Saw for Granite Marble Paving Stone

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$18,800.00/sets 1-4 sets
Packaging Details:	The inner packaging is plastic film and the outer packaging is frames.
Supply Ability:	25 Set/Sets per Month Bridge saw machine

Contact Now

High Cutting Efficiency Disc Rock Cut Circular Bridge Saw for Granite Marble Paving Stone

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Cutting Machine
Use:	Stone Block	Production Capacity:	High
Voltage:	380V/50Hz(According To The Customer)	Power:	27.2/38.2
Dimension(LWH):	640048004400	Weight:	6100 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Cutting Thickness (max):	800mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC
Product Name:	Bridge Saw Machine	Function:	Fast Cutting Speed And High Efficiency
Application:	Stone Marble Granite Quartz Sandstone	Keyword:	Stone Block Cutting Machine
Usage:	Small Block	After Warranty Service:	Online
Control System:	PLC(imported Brand)	Color:	Red
Max Cutting Length:	3200mm	Blade Diameter:	D600-2000mm
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Bridge Cutting Machine For Block Cutting

Bridge cutting machine is ideal equipment for processing middle size stone blocks, such as tombstone, stone material handicraft, curb stone.

Product Features:

1: Adopts large span bridge stucture. The girder beam and guide rail are sealed with oil.
2: Automatic shift sharding. Feeding system adopts imported frequency converter, realize stepless speed cutting.
3: Equipped with a 360-degree rotating table.
4: Accurate positioning and high processing efficiency.

Product Specifications:

Model	Unit	PLC-1200	PLC-1600	PLC-1800	PLC-2200
Beam length(optional)	mm	6500	6200	6500	7000
Guide pillar diameter	mm	Φ140/180	Φ140/180	Φ140/180	Φ140/180
Max.blade diameter	mm	Φ1200	Φ1600	Φ1800	Φ2200
Worktable size	mm	3000*2000	3000*2000	3000*2000	3000*2000
Worktable rotation range	n°	0-90°	0-90°	0-90°	0-90°
Max.vertical stroke	mm	820	950	950	1150
Water consumption	m³/h	4	5	5	6
Power of main motor	kw	22	22	30	30
Total power	kw	27.2	27.2	38.2	38.2
Dimension(L×W×H)	m	6.44.84.4	6.24.85.1	6.54.85.3	7.04.85.5
Weight	kg	6100	7100	7300	7500

High Cutting Efficiency Disc Rock Cut Circular Bridge Saw for Granite Marble Paving Stone 0
