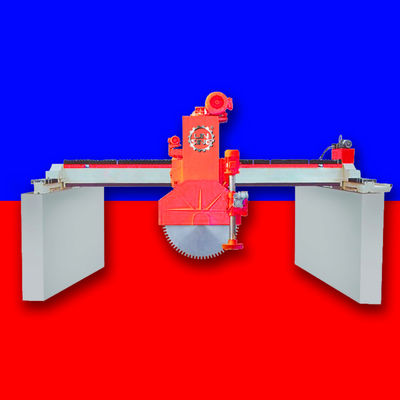

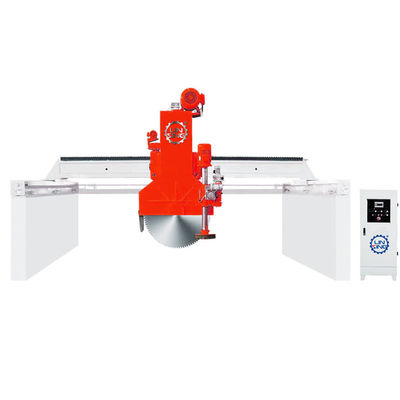

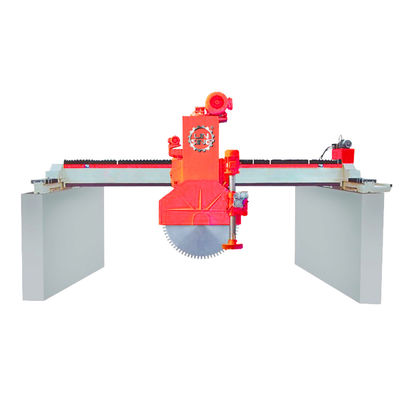

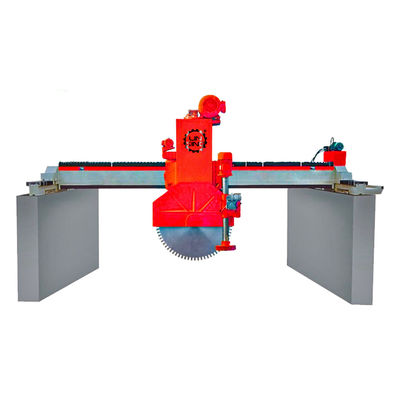

Stone Block Cutter with Horizontal Plus Vertical Bridge Saw and PLC Control System

Large Image : Stone Block Cutter with Horizontal Plus Vertical Bridge Saw and PLC Control System

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$32,000.00/sets 1-2 sets
Packaging Details:	The inner packaging is plastic film and the outer packaging is frames.
Supply Ability:	25 Set/Sets per Month Horizontal Plus Vertical Bridge Saw Cutting Machine

Contact Now

Stone Block Cutter with Horizontal Plus Vertical Bridge Saw and PLC Control System

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Cutting Machine
Use:	Stone Block	Production Capacity:	High
Voltage:	380V/50Hz(According To The Customer)	Power:	55/75/90KW
Dimension(LWH):	7500x4350x6500	Weight:	9000 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Cutting Thickness (max):	800mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC
Product Name:	Horizontal Plus Vertical Bridge Saw Machine	Function:	Fast Cutting Speed And High Efficiency
Application:	Stone Marble Granite Quartz Sandstone	Keyword:	Stone Block Cutting Machine
Usage:	Natural Stone Block	After Warranty Service:	Online
Control System:	PLC(imported Brand)	Color:	Red
Max Cutting Length:	3800mm	Blade Diameter:	D1200/1600mm
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Horizontal Plus Vertical Bridge Saw Machine

Horizontal plus vertical cutting machine is the main of granite slab production line which can cut out the stone blocks to slabs with certain thickness. Controlled by programmable fully-automatic system and executed by hydraulic transmission, this machine is an ideal equipment for processing granite, featuring reliable performance and high cutting efficiency.

Product Features:

Horizontal plus vertical bridge saw machine adopts PLC programmable control system, man-machine integrated touch screen interface, supplemented by ultra-high precision rotary encoder positioning slice, left and right cutting speed control by inverter, adjust the speed by stone material, up and down using hydraulic Combined with chrome-plated guide pin + wear-resistant guide sleeve sliding up and down, with a small gap wear, and multi-layer seal design in the guide sleeve, waterproof and dustproof anti-spill, improve service life, automatically slice, blocks can be set directly on the ground, to save the cost of table and maintenance. High-speed movement parts are high-quality imported spare parts, so it has a high cutting efficiency, high-precision cutting, high stability, easy operation and flexible and etc., especially for high-value large-size granite , Marble slabs processing.

Product Specifications:

Model	Unit	QSQ-1200	QSQ-1600
Max. diameter of blade	mm	1200	1600
Max. no. of blade	pc	1	1
Main motor power	KW	55/75	90
Max. vertical stroke	mm	1350	1400
Crossbeam length	mm	7260	7260
Max. cutting size(LxW)	mm	3800x2100	3800x2500
Diameter of horizontal blade	mm	400-600	400-600
Main motor power	kw	11	15
Vertical stroke	mm	850	1100
Dimensions (LxWxH)	mm	7500x4350x6500	7500x5000x5500
Water consumption	m³/h	15	16
Approximate weight	KG	9000	13500
