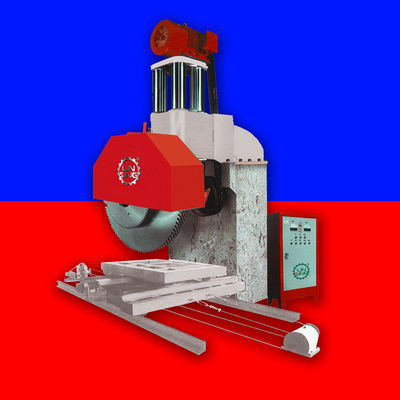

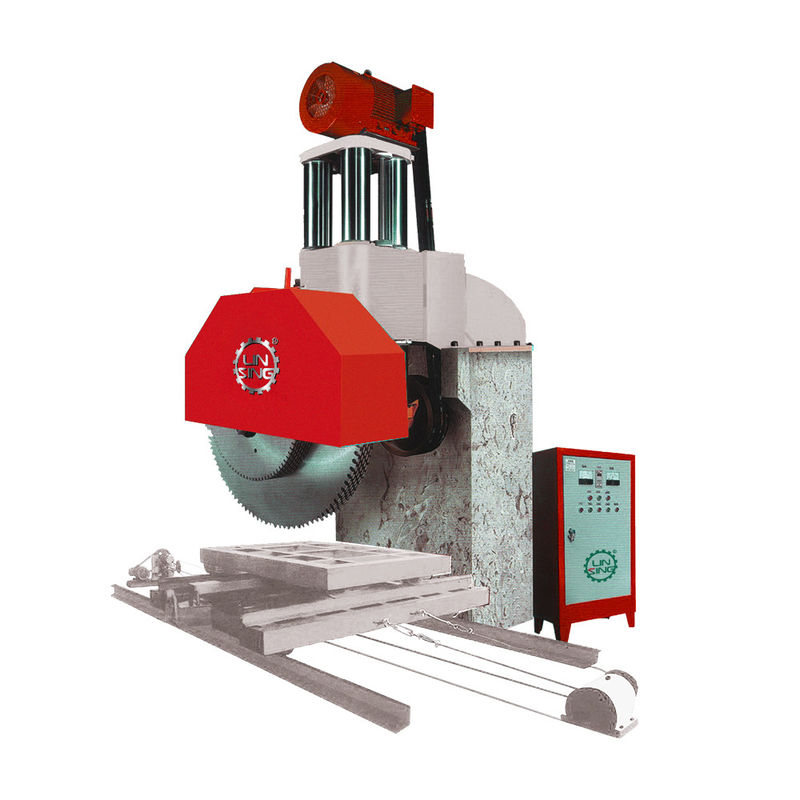

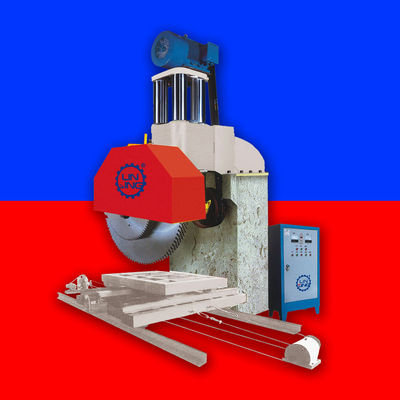

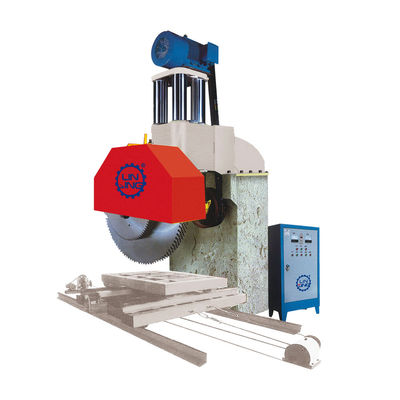

Stone Industrial Automatic Multiblade Granite Natural Red Granite Cutter 3500/1500/1100mm

Large Image : Stone Industrial Automatic Multiblade Granite Natural Red Granite Cutter 3500/1500/1100mm

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING
Certification:	CE Certificate

Payment & Shipping Terms:

Price:	$21,800.00/sets 1-2 sets
Packaging Details:	The inner package is plastic film, and the outer package is wooden frame and wooden case.
Supply Ability:	25 Set/Sets per Month Single arm multiblade block cutter

Contact Now

Stone Industrial Automatic Multiblade Granite Natural Red Granite Cutter 3500/1500/1100mm

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Cutting Machine
Use:	Granite	Production Capacity:	1000m2
Voltage:	220/380V	Power:	45-115kw
Dimension(LWH):	3500/1500/1100mm	Weight:	9000 Kg
Warranty:	1 Year	Key Selling Points:	High-accuracy
Cutting Thickness (max):	1200mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Best Selling
Warranty Of Core Components:	1 Year	Core Components:	Motor, Other, Gear
Product Name:	Multi Blade Block Cutting Machine	Function:	Cutting Granite
Keyword:	Multi-blade Stone Cutter Machine	Application:	Stone Industrial
Control System:	PLC(imported Brand)	Feature:	High Efficiency Low Cost
Color:	Red	Blade Diameter:	1200-2500mm
Max Cutting Length:	3500mm	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Single Arm Multi-blade Stone Cutting Machine

Multi-blade Stone Cutting Machine adopting large-area contacting rail and double hydraulic cylinder up & down movement, this machine improves the lifting speed largely. Overall protection of the machine also has greatly enhanced the stability and prolonged the life-span.Thereforethe maintenance cost greatlyreduced and efficiency improved.

Product Features:
The machine uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance; especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision; the machine with compact structure , easy operation,adopts high-quality materials , especially suitable for cutting granite blocks.

1. Single Arm Multi-blade Stone Cutting Machine is a semi- automaitc stone cutting machine. it's simple&efficient.
2. The stone cutting mahcine can install 8/12/14/16/18/22 pcs. Most domestic slab company will chooce this kind of the multi-blade granite block cutting machine because of the high capacity and good quality.
3. The patend lubrication system of the machine can vastly reduce maintenace frequency and maintenace costs which means a perfectly block cutter compared with traditional same kind of machine.

Product Specifications:

Model	Unit	DZQ-12	DZQ-14	DZQ-16	DZQ-22
Saw blade diameter	mm	1600-2500	1600-2500	1600-2200	1600-2200
Saw blade number	pcs	12	14	16	22
Blade stroke	mm	1000(1150)	1000(1150)	1000	1000(1150)
Max cutting block	m	3.51.50.95(1.1)	3.51.50.95(1.1)	3.51.51.1	3.51.51.1
Main motor power	kw	55	65	75	110
The total power	kw	60.5	70.5	82.2	117.2
Water consumption	m³/h	20	24	30	42
Weight	kg	8500	9000	9250	12000

Other specifications are available upon request(DZQ8 DZQ14,DZQ18).
